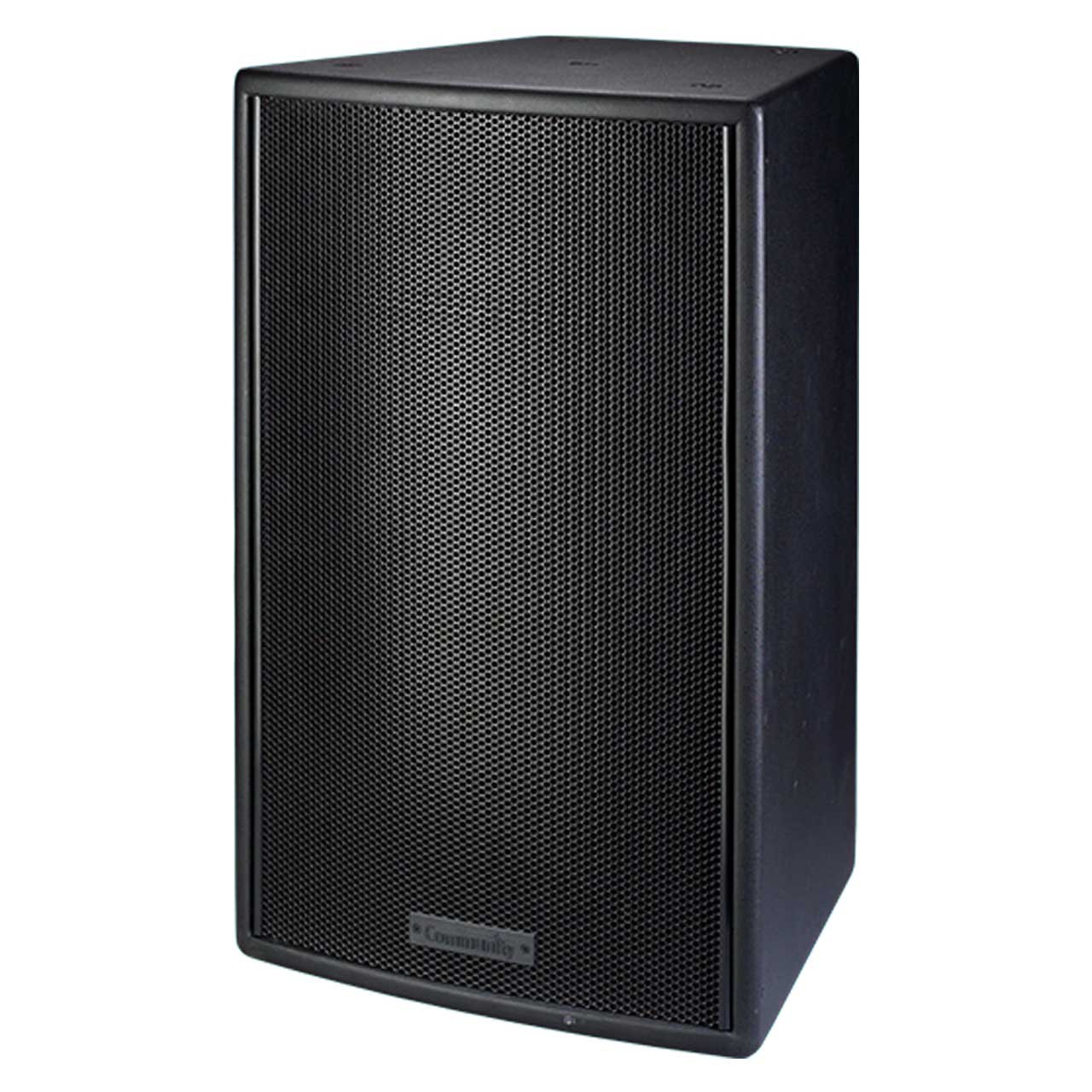

Community Veris 2 15 Inch 3-Way Full-Range Loudspeaker System - 90 Degree x 40 Degree V2-3594B

Community V2-3594B Veris 2 15 Inch 3-Way Full-Range Loudspeaker System - 90 Degree x 40 Degree

Precision Sound, Maximum Clarity

The Community V2-3594 is a powerful three-way, full-range loudspeaker designed for high-performance audio in fixed installations. Featuring horn-loaded mid and high-frequency drivers, this speaker delivers enhanced pattern control, outstanding intelligibility, and musical clarity—especially in large or acoustically challenging spaces.

With its 90° x 40° dispersion, the V2-3594 provides focused coverage, ideal for venues that are wider than they are deep. Whether you’re outfitting a house of worship, a live music venue, or a gymnasium, this speaker delivers high-fidelity, low-distortion audio that elevates any environment.

Key Features

• 3-Way Horn-Loaded Design
  Improved vocal clarity and detail for large and reverberant spaces

• Rotatable Horn
  Allows optimized dispersion in both vertical and horizontal installations

• Powerful, Balanced Output
  Up to 128 dB SPL peak, with 200W continuous power handling

• Wide and Focused Coverage
  90° x 40° dispersion ensures precision sound projection

• Trapezoidal Enclosure
  Easily clusters with other V2 units to form large, high-output arrays

• Driver Protection
  DYNA-TECH circuitry preserves speaker integrity under demanding conditions

• Ferrofluid-Cooled HF Driver
  For better heat dissipation and high-frequency performance

Applications

• Contemporary houses of worship

• Performing arts centers and theaters

• Nightclubs and entertainment venues

• Gyms and fitness studios

• Multi-purpose auditoriums

• Large classrooms or lecture halls

Technical Specifications

• Type: 3-Way, full-range, trapezoidal vented enclosure

• LF Driver: 1 x 15" cone

• MF Driver: 1 x 6.5"

• HF Driver: 1 x 1"

• Operating Range: 55 Hz – 18 kHz (-10 dB)

• Frequency Response: 70 Hz – 16 kHz (±3 dB)

• Power Handling:

  • 200W continuous

  • 500W program

• Sensitivity: 99 dB (100 Hz – 12.5 kHz)

• Maximum Output: 122 dB continuous / 128 dB peak

• Nominal Impedance: 8 ohms

• Minimum Impedance: 5.6 ohms @ 1400 Hz

• Coverage Pattern: 90° H x 40° V (in vertical orientation)

• Crossover Frequencies: 600 Hz / 3 kHz

• Recommended Processing: 60 Hz high-pass, 24 dB/oct Butterworth

• Enclosure Material: 18mm, 11-ply cross-laminated birch plywood

• Mounting:

  • 13 x M10 threaded rigging points

  • 4 x M8 threaded inserts for third-party suspension accessories

• Input Connections: NL4-compatible locking connector and terminal strip (parallel)

• Dimensions: 32.4" x 18.4" x 15.9" (823 mm x 467 mm x 404 mm)

• Weight: 59.5 lbs (27 kg)

What’s in the Box

• 1x Community V2-3594B Loudspeaker
  (Includes rigging provisions; mounting hardware sold separately)

Clarity Meets Power. Control Meets Versatility.
With its user-rotatable horn and high-output 3-way design, the V2-3594 is your go-to solution for environments where every word and note must be heard—loud, clear, and without compromise.
