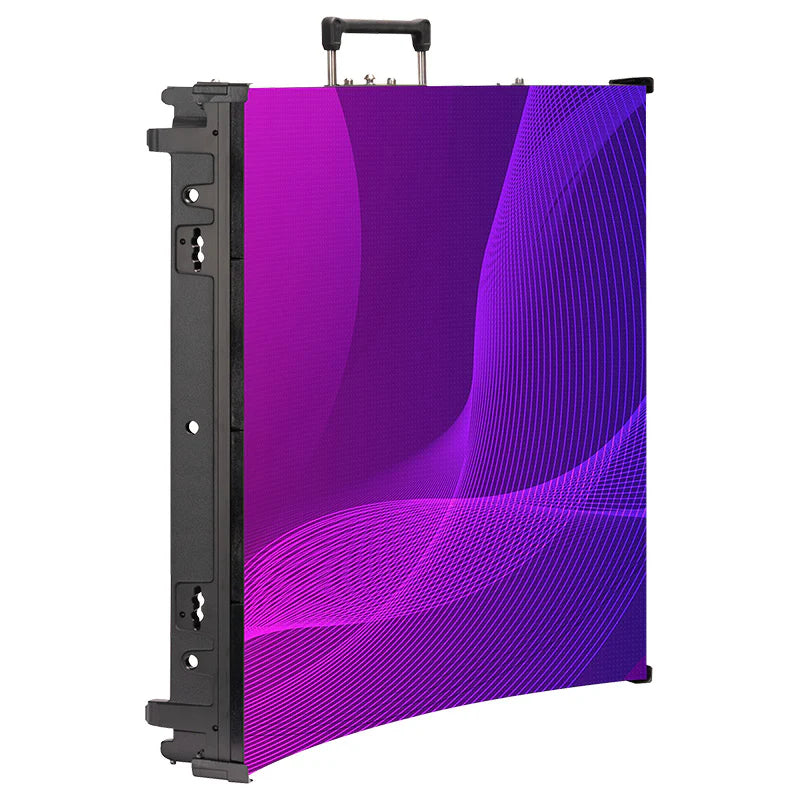

The ADJ EVS345 EVS3 Flex45 Video Panel is an innovative display solution engineered to elevate visual performance with exceptional clarity and unmatched flexibility. Featuring a 3.91mm pixel pitch and advanced Kinglight Copper 3-in-1 SMD 2121 LEDs, this panel delivers rich, detailed imagery. With a pixel density of 65,536 per square meter and a resolution of 128 x 128 pixels across four modules per panel, the EVS3 ensures stunning visuals. Compact yet powerful, it measures 19.68" x 19.68" x 2.96" (500 x 500 x 75mm) and weighs just 15.6 lbs. (7.06 kg), balancing portability with performance.

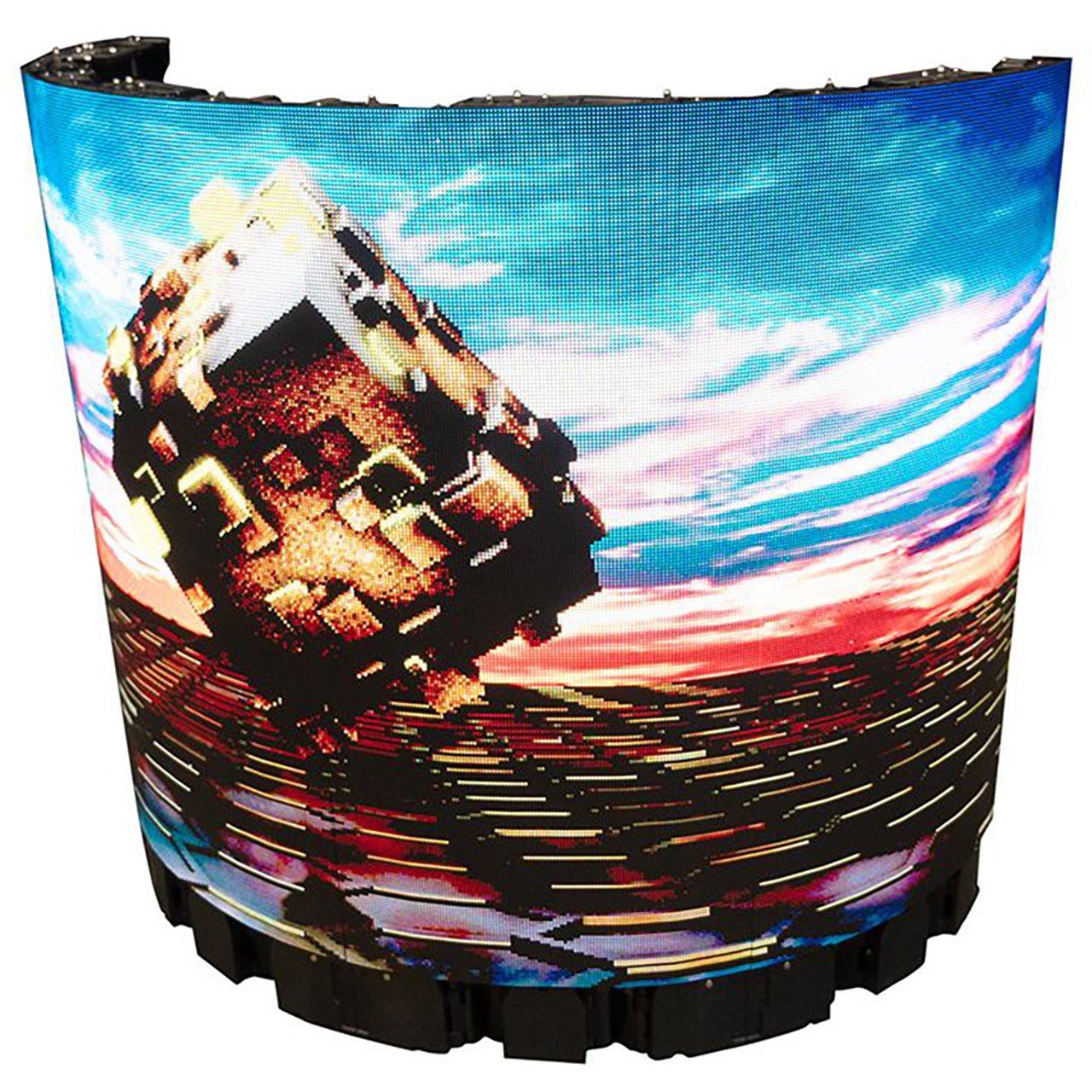

What sets the EVS3 Flex45 apart is its remarkable ability to bend up to 45 degrees in both concave and convex directions. With just eight panels, you can create a seamless cylindrical shape or a flowing wave-like design. This adaptability eliminates visible seams and enables truly immersive displays, ideal for stage backdrops, trade shows, architectural designs, and more. It also functions perfectly as a traditional flat panel, showcasing its impressive versatility.
Engineered for reliability, the EVS3 Flex45 includes advanced features like Memory on Module (MOM) and built-in corner protectors. MOM technology stores essential calibration and configuration data within each module, preserving brightness, color uniformity, and visual settings even after module replacement or repositioning—making it ideal for rental and touring use. The panel also supports rear serviceability, allowing for quick module replacement and uninterrupted operation. Mechanical precision ensures excellent flatness with gaps under 0.5mm, resulting in a flawless viewing surface.
Optically, the EVS3 delivers an 800 NITS brightness level and a wide viewing angle of 160° horizontal and 140° vertical at 9.75 ft. (3m), offering consistent, vibrant visuals from multiple perspectives. With a grayscale of ≥14-bit and 256 display color support, the panel ensures rich color reproduction and visual fidelity. Brightness is adjustable from 0–100% in 100 increments, and a high 5000:1 contrast ratio enables optimal performance in varied environments.
Energy efficiency is built in, with a power range of 100–240V at 50–60Hz. Each panel consumes a maximum of 120W, with an average usage of 48W. Power and data connections are simplified with Power Lock In/Out and Data Lock In/Out, while the NovaStar Synchronous Control System with DVI input ensures easy, intuitive operation across multiple formats and resolutions.
Built to withstand a range of conditions, the EVS3 operates in temperatures from -4°F to 104°F (-20°C to +40°C) and in humidity levels between 10%–90% (non-condensing). It also offers safe storage within -40°F to 176°F (-40°C to +80°C) and the same humidity range, ensuring durability for both indoor and outdoor applications.
Features:
Pixel Pitch: 3.91mm (0.15")
LED: Kinglight Copper, 3-in-1 SMD 2121
Drive IC: ICN2153AP
Pixel Density: 65536 per square meter
Size: 19.68" x 19.68" x 2.96" / 500 x 500 x 75mm
Module Quantity: 4
Module Resolution: 128x32 pixels
Panel Resolution: 128x128 pixels
Weight: 15.6 lbs. / 7.06kg
Memory on Module (MOM): Enhanced functionality for seamless operation
Corner Protectors: Safeguards corners during transport, setup, and teardown

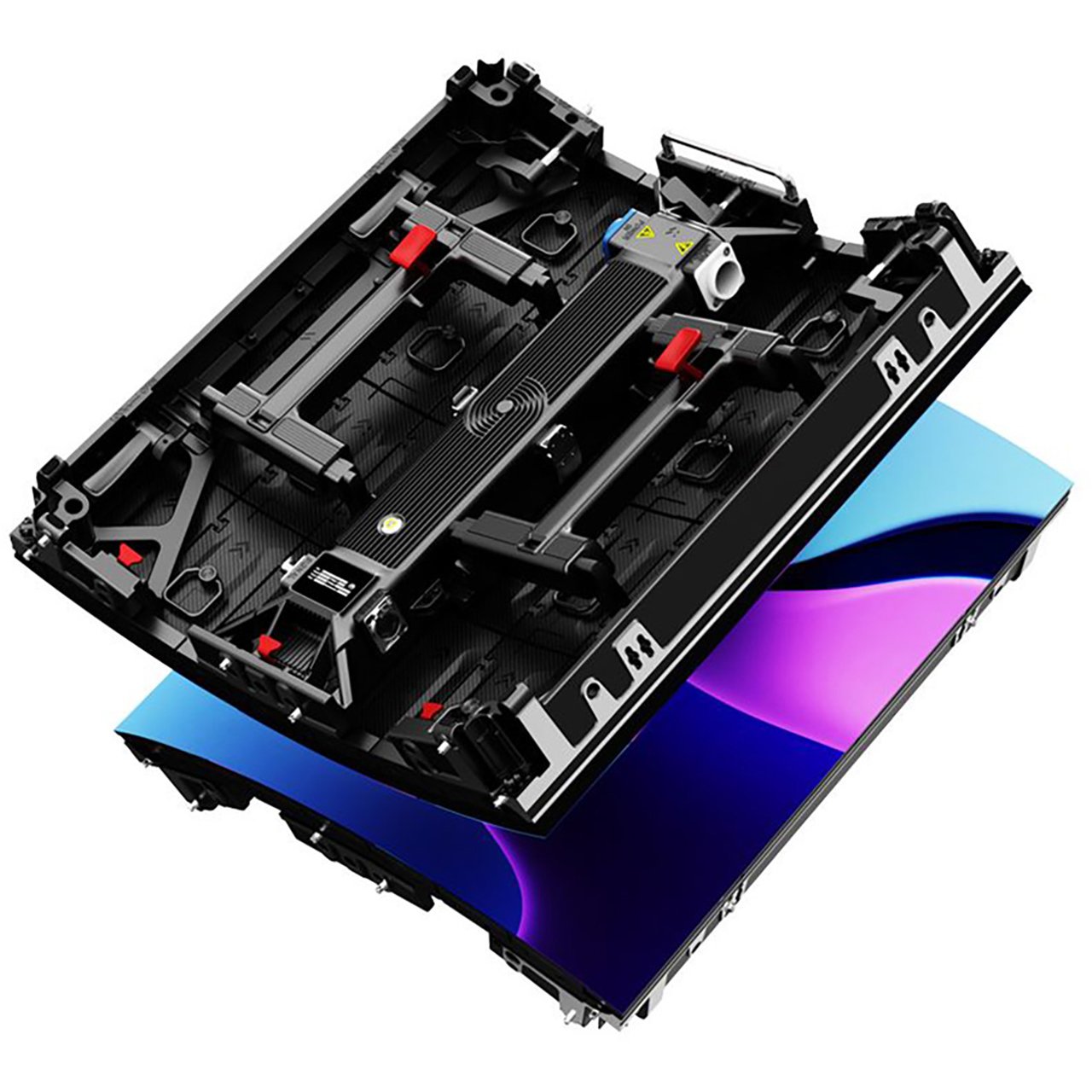

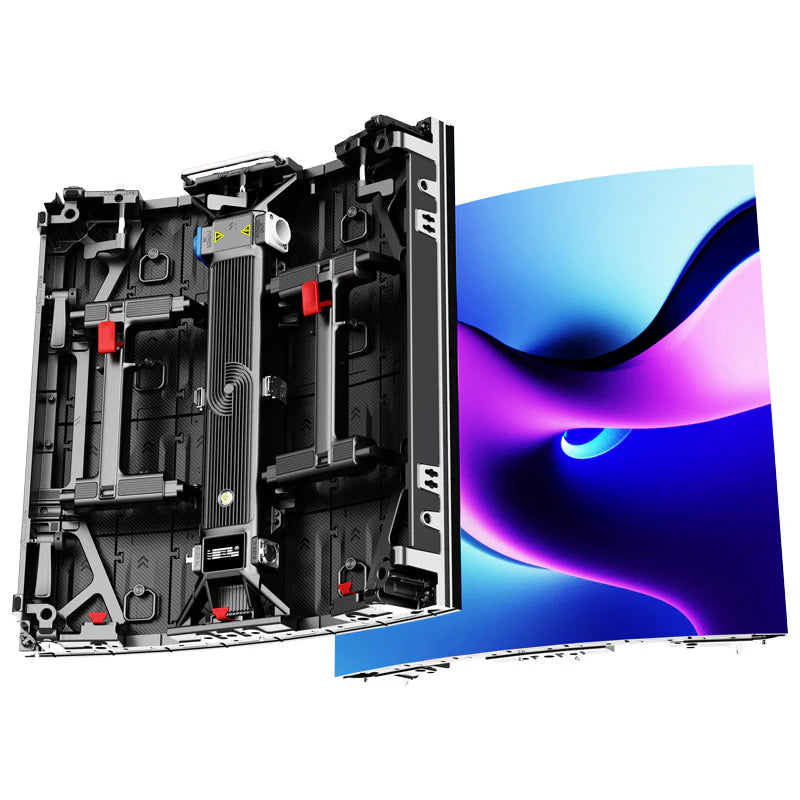

Rear Serviceable: Easily replaceable video modules ensure continuous performance
Retractable easy transport handle
Specifications:
Mechanical Ratings
Surface Flatness: Gaps < 0.5mm for a smooth visual experience
Storage Humidity: 10% - 90% (No Condensation) for long-term preservation
Certification: cETLus (PENDING) ensures compliance with safety standards
IP Rating: Protection Level: IP20 (Front and Back) for reliable performance in indoor environments
Item Includes:
1xEVS345 LED Flexible Video Panel
