Introducing the advanced ADJ WMS413 WMS1 LED Video Panel—an elite high-resolution display engineered for seamless integration into a wide range of professional applications. As the latest and highest-resolution addition to ADJ’s LED video panel lineup, the WMS1 is purpose-built for environments like storefront displays, museums, conference rooms, digital signage, and entertainment venues. With a built-in Novastar A8s-N receiving card, it supports both horizontal and vertical wall-mounted orientations.
Featuring an ultra-fine 1.95mm pixel pitch and an impressive pixel density of 262,144 per square meter, the WMS1 delivers razor-sharp visuals even from close distances. The panel’s RGB SMD1212 LEDs produce vivid, true-to-life color with a brightness of 700 NITS. A wide viewing angle of 160° horizontally and 140° vertically, combined with a high refresh rate of 3840Hz, ensures fluid, immersive video playback.

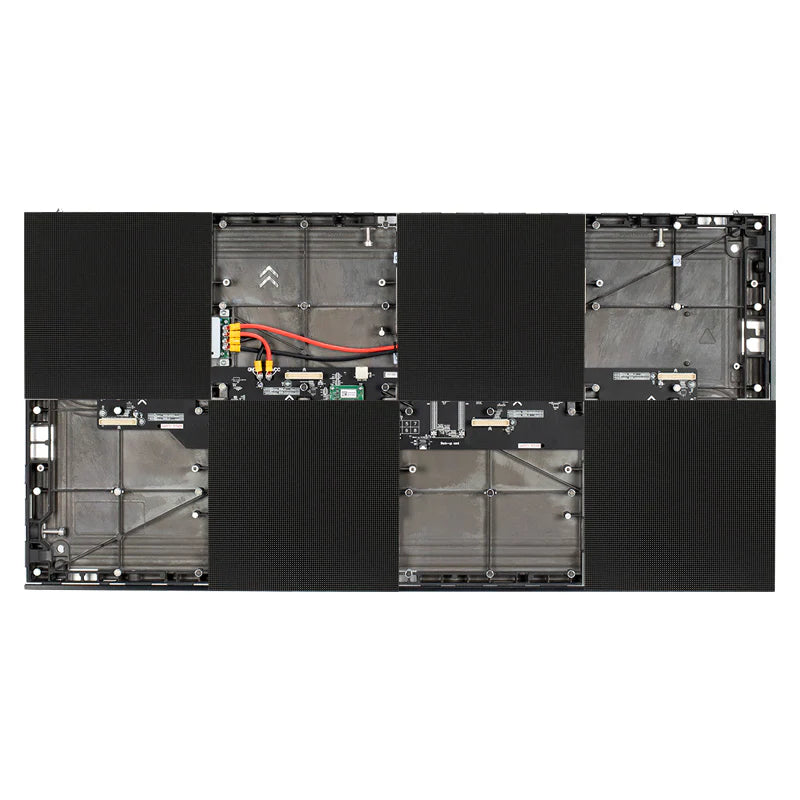

The WMS1 measures 39.3" x 19.6" (1000mm x 500mm) and contains eight modular sections, each with a 128 x 128 pixel resolution. This allows for flexible configurations, with a total panel resolution of 512 x 256 pixels when mounted horizontally or 256 x 512 vertically. A secure locking system in the frame enables seamless alignment with adjacent panels, while built-in mounting points simplify wall installation. Its front-serviceable design allows for quick module replacement, minimizing downtime.
Slim and lightweight at just 1.3" (33mm) thick and 21 lbs. (9.5 kg), the WMS1 supports a variety of mounting options including wall-mounting, hanging, or stacking in either orientation. Step into the future of LED display technology with the crystal-clear, high-performance WMS1 from ADJ.
Features:
- Installation Method: Hang or Wall Mount
- Maintenance: Front Service
- Configuration: Horizontal (wall mount to hang); Vertical (wall mount only)
Specifications:
General
- Pixel Pitch: 1.95mm
- Pixel Density: 262,144 dot/m2
- LED sealing Type: SMD1212 Kinglight Cooper
- Module Size: 250mm x 250mm
- Module Resolution (PX x PX): 128 x 128
- Panel Resolution (PX x PX): 512 x 256 pixels (horizontally) or 256 x 512 (vertically)
- Average Life (Hours): 50000H
Optical Ratings
- Brightness (cd/m2): 700 NITS
- Horizontal Viewing Angle: 160°
- Vertical Viewing Angle: 140°
- Grey Scale (Bit): ≥14, DP32655
- Refresh Rate: 3840Hz
Power Supply
- Input Voltage: 100V - 240V AC
- Max Power Dissipation: 370W/m²
- Average Power Consumption: 140W/m²
Control System

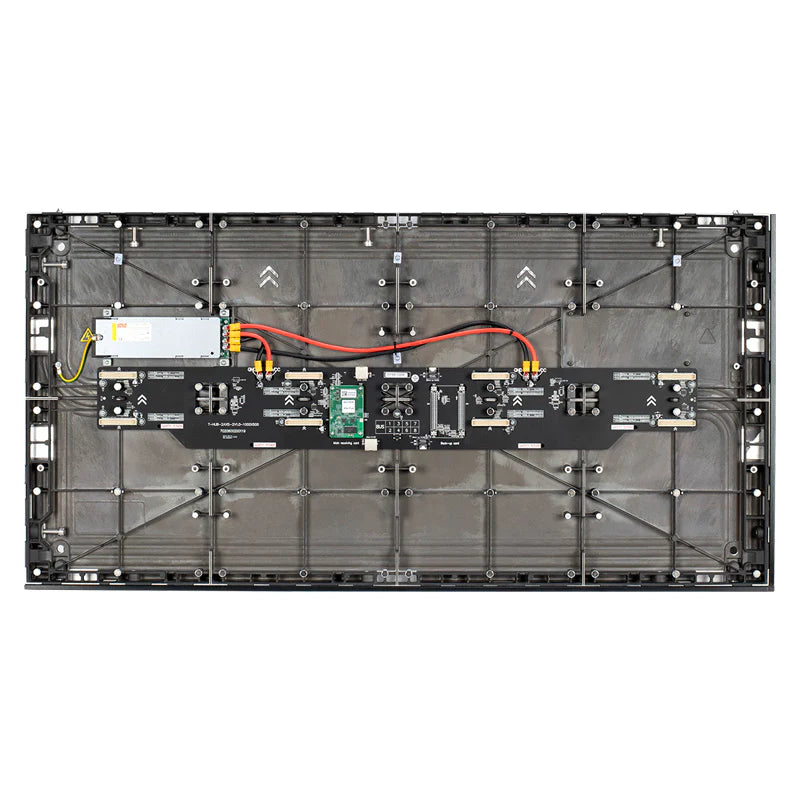

- Receiving Card: Novastar A8s-N
Environmental
- Operating Temp: -4°F - 104°F (-20°C - 40°C)
- Operating Humidity: 10% - 90% (No Condensation) ensures stable operation
- Storage Temperature: -40°F - 176°F (-40°C - 80°C) for safe storage
- Storage Humidity: 10% - 90% (No Condensation) for long-term preservation
- Working Environment: Indoor
- Certification: cETLus
- IP Rating: Protection Level: IP20
Item Includes:
-
1x WMS413 High Resolution LED Video Panel
