Experience the state-of-the-art ADJ WMS002 WMS2 LED Video Panel—ADJ’s most advanced high-resolution display solution yet, engineered for effortless integration across a wide range of applications. Expanding ADJ’s lineup of professional LED video panels, the WMS2 is their highest-resolution model to date, ideal for retail windows, museums, corporate boardrooms, digital signage, and entertainment environments. It comes equipped with a built-in Novastar A8s-N receiving card, supporting both horizontal and vertical wall-mounted orientations.
With a fine 2.6mm pixel pitch and a pixel density of 147,456 per square meter, the WMS2 delivers crisp, detailed images even from short viewing distances. Its RGB SMD1515 LEDs offer vivid color reproduction, backed by a brightness of 800 NITS. A wide viewing angle of 160° horizontal and 140° vertical, paired with a high refresh rate of 3840Hz, ensures smooth and visually engaging content playback.

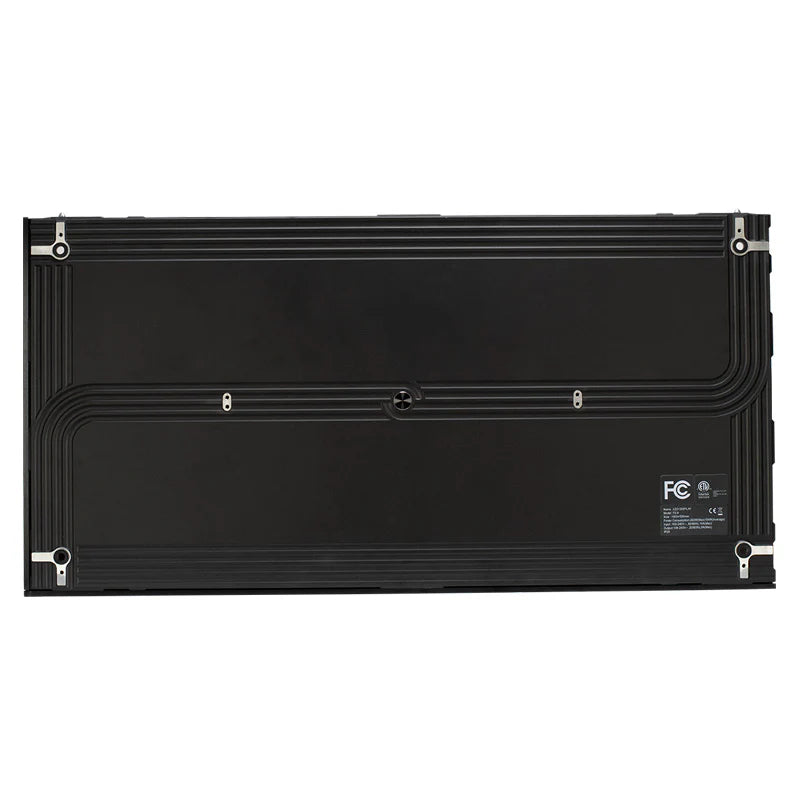

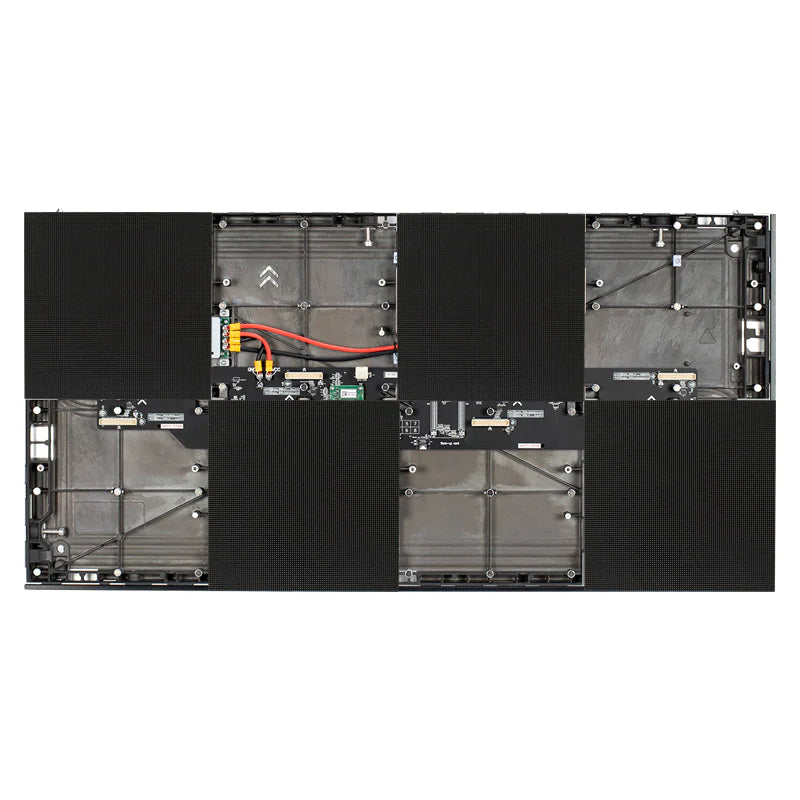

The panel measures 39.3" x 19.6" (1000mm x 500mm) and is made up of eight modular sections, each with a 96 x 96 pixel layout. This allows for versatile setup options, with a total resolution of 384 x 192 pixels in horizontal orientation or 192 x 384 vertically. The robust frame includes a reliable locking system for secure panel-to-panel connections and features mounting points for direct wall installation. A front-serviceable design allows for easy maintenance and module replacement.
At just 1.3" (33mm) thick and weighing 21 lbs. (9.5 kg), the WMS2 is both slim and lightweight, supporting various installation methods such as wall-mounting, hanging, or stacking in either direction. Join the next generation of LED display innovation with ADJ’s brilliantly sharp and vibrant WMS2.
Features:
- Installation Method: Hang or Wall Mount

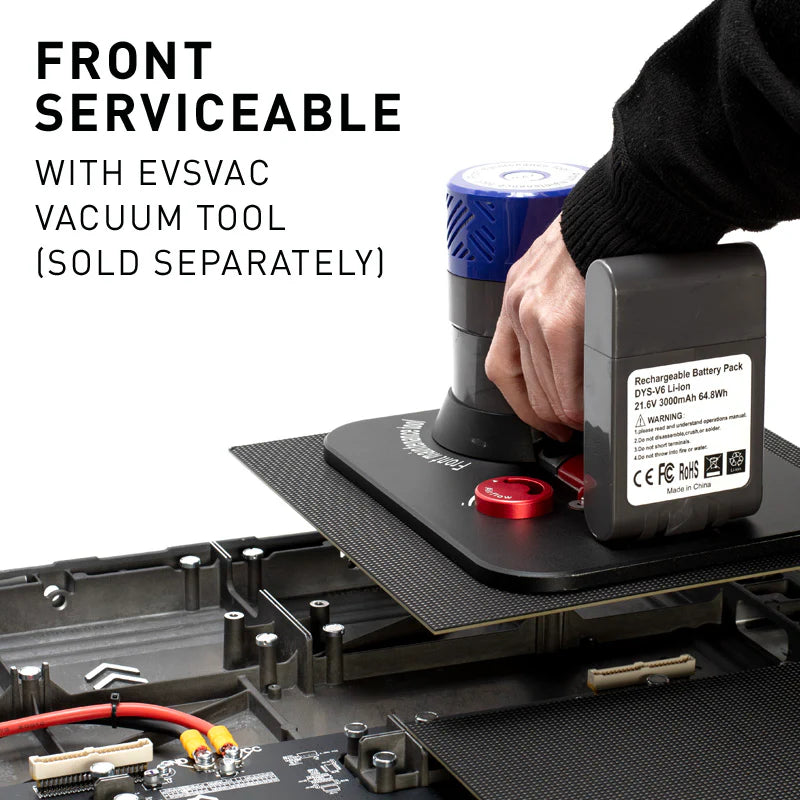

- Maintenance: Front Service
- Configuration: Horizontal (wall mount to hang); Vertical (wall mount only)
Specifications:
Mechanical Ratings
- Surface Flatness: Gaps <0.5mm for a smooth visual experience
Optical Ratings
- Brightness: 800 NITS cd/m2
- Horizontal Viewing Angle: 160°
- Vertical Viewing Angle: 140°
- Grey Scale (Bit): ≥14, CFD435
- Refresh Rate: 3840Hz
Power Supply
- Input Voltage: 100V - 240V AC
- Max Power Dissipation: 350W/m²
- Average Power Consumption: 140W/m²
Control System
- Receiving Card: Novastar A8s-N
Environmental
- Operating Temp: -4°F - 104°F (-20°C - 40°C)
- Operating Humidity: 10% - 90% (No Condensation) ensures stable operation.
- Storage Temperature: -40°F - 176°F (-40°C - 80°C) for safe storage.
- Storage Humidity: 10% - 90% (No Condensation) for long-term preservation
- Working Environment: Indoor
- Certification: ETL
- IP Rating: Protection Level: IP20 (Front and Back) for reliable performance in indoor environments.
General
- Pixel Pitch: 2.6mm
- Pixel Density: 147,456 dot/m2
- LED sealing Type: SMD1515 Kinglight Cooper
- Module Size: 250mm x 250mm
- Module Resolution (PX x PX): 96 x 96
- Panel Resolution (PX x PX): 384 x 192 pixels (horizontally) or 192 x 384 (vertically).
- Average Life: 50000 hrs
- Cabinet Size: 39.3" x 19.6" (1000mm x 500mm)
- Cabinet Weight: 21lbs (9.5kg)
- Cabinet Thickness: 1.3" (33mm)
Item Includes:
-
1x WMS002 High Resolution LED Video Panel
