ADJ VS3 Video Panel with 3-in-1 RGB SMD2121 LED Configuration - 3.91mm Pixel Pitch VS3015

ADJ’s Vision Series video panels are engineered for exceptional performance, offering premium LED binning and bright, sharp visual output. Designed for maximum convenience, all models are both front and rear serviceable and feature four individual mini modules per panel, enabling fast and easy maintenance. Built on a unified frame design, Vision Series panels with varying resolutions can be seamlessly combined within a single setup. They also share the same rigging bar and fit uniformly into the same road cases for streamlined transport and storage.

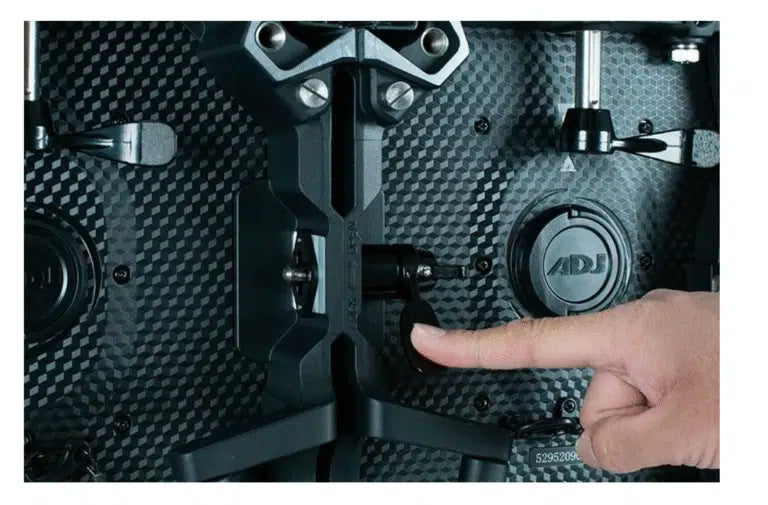

Each panel includes adjustable corner protectors to shield edges during handling and transport. Integrated magnets on the top and bottom of the panels allow for temporary alignment, enabling users to hold and position two panels together hands-free before securing them with rear latches. This user-friendly design allows a single technician to install an entire video wall efficiently.

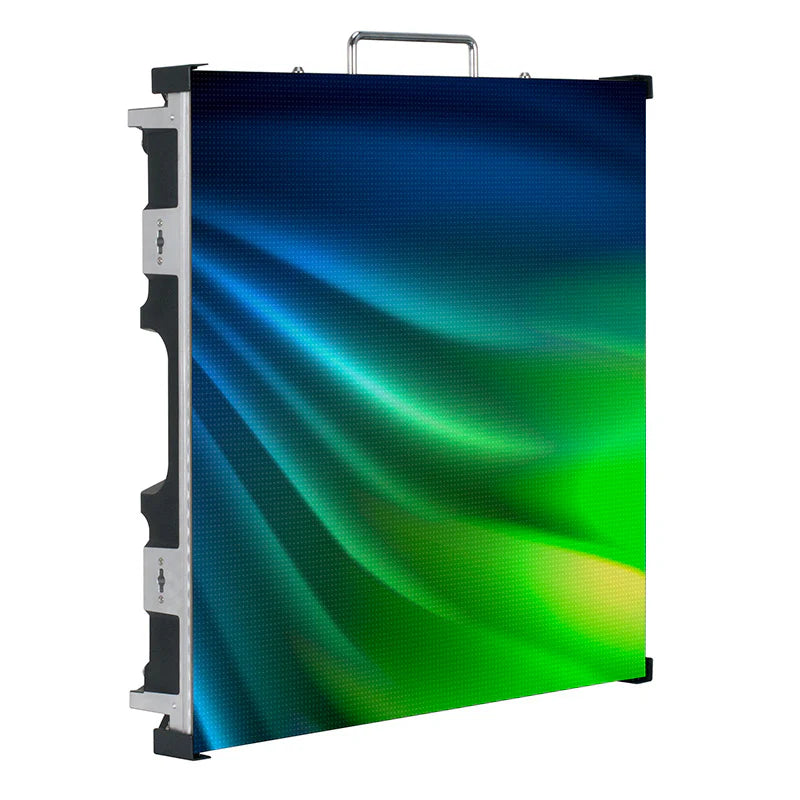

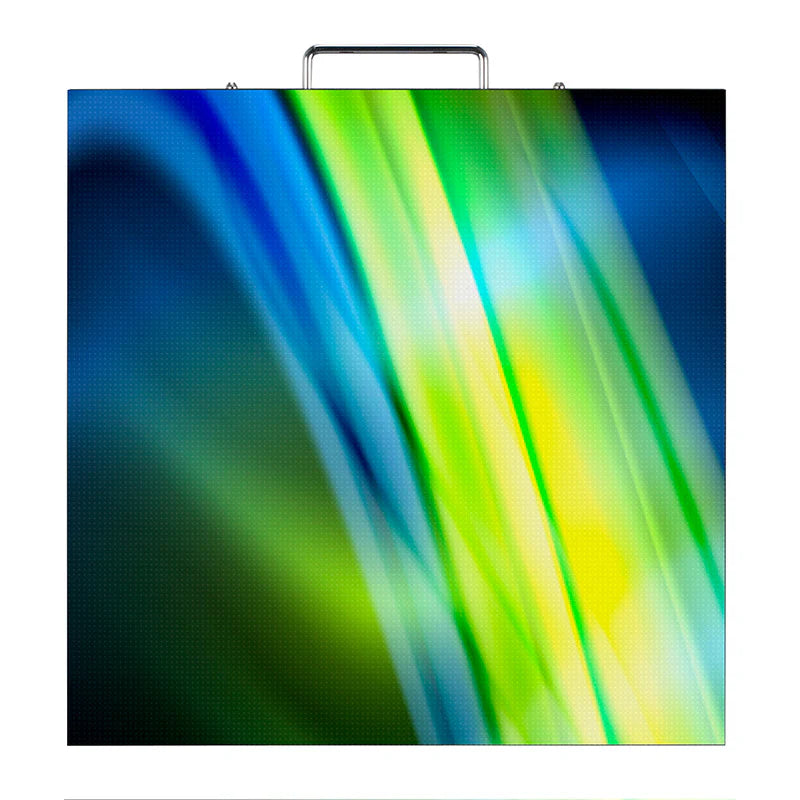

The VS3015 VS3 is a high-resolution panel featuring a 3.91mm pixel pitch and 3-in-1 RGB SMD2121 LEDs, delivering a brightness level of 1000 NITS. Each panel includes four LED modules for easy servicing and maintenance. Connection options include PowerLock In/Out and DataLock In/Out, and each panel is equipped with a built-in Novastar A5s receiving card. Up to eight VS3 panels fit neatly into the VSFC8 flight case, while the VSRB1 rigging bar supports vertical hanging of up to 20 Vision Series panels.

 Features:

• Corner Protectors to protect the corners of the VS3 during transport, set-up and teardown

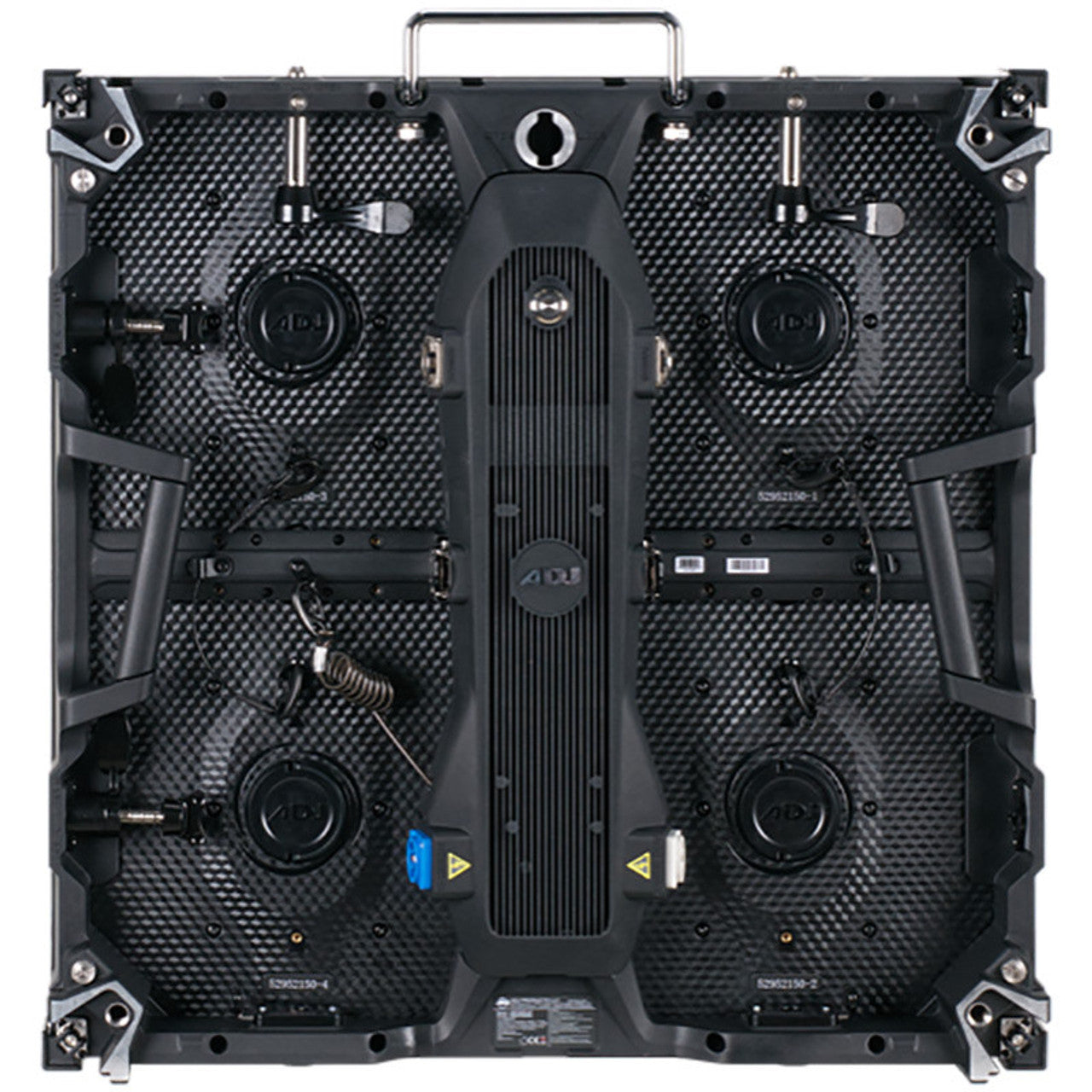

• Front and rear serviceable: 4 easy to replace video modules on each panel
• Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall

Specifications:

• Surface Flatness: Gaps < 0.5mm

  Optical Ratings
• Brightness: 1000 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 9.75ft (3m)
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0% - 100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit

  Power Supply
• Operation Power: 100V - 240V 50/60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 68W/per panel
• Connections Power/Data: PowerLock In/Out; DataLock In/Out

  Control System
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/16
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

  Environmental
• Operating Temp/Humidity: -4°F - 104°F (-20°C - 40°C)/10% - 90% (No Condensation)
• Operating Life/MTBF: 50,000 Hours/5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: < 0.02%
• Listings: cETLus approved (Control #5015975)

  General
• Pixel Pitch: 0.15" (3.91mm)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128x128; 65536 per square meter
• Size: 19.68" x 19.68" x 2.74" (500mm x 500mm x 69.6mm)
• Module Quantity: 4
• Weight: 17lbs (7.7kg)

Item Includes:

• 1x VS3015 LED Video Panel
