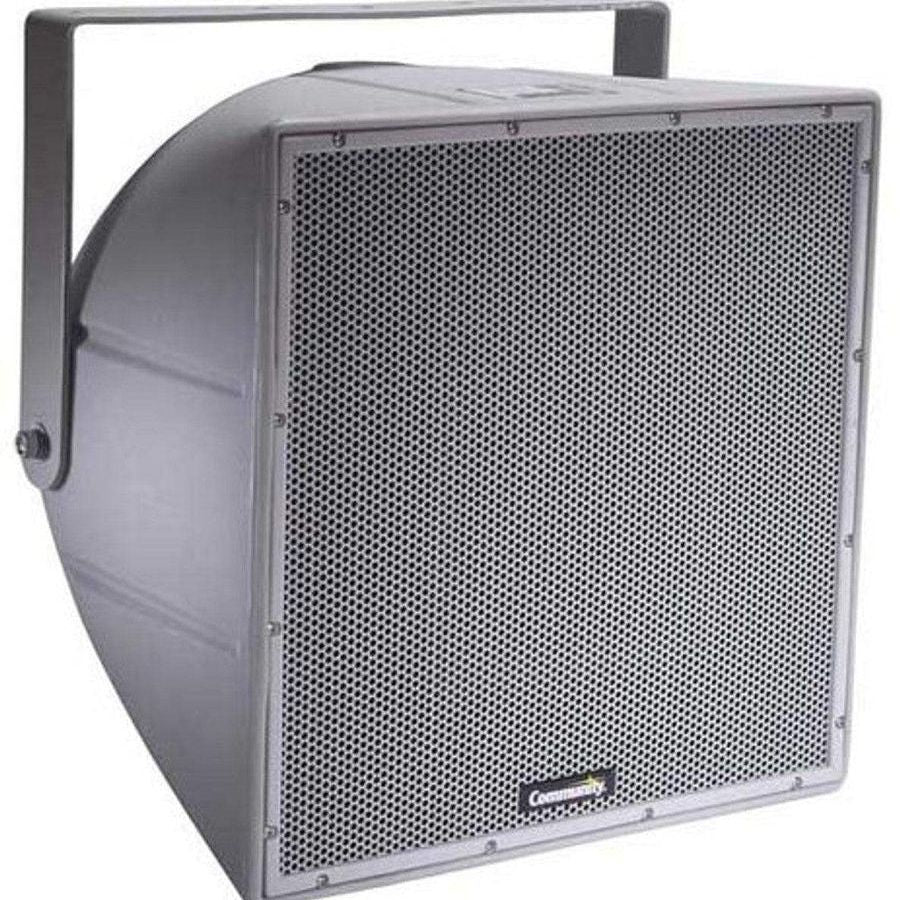

Community 2-Way 12-Inch Grey 90x90 All-Weather Full Range Loudspeaker R.5COAX99

Community R.5COAX99 2-Way 12-Inch Grey 90x90 All-Weather Full Range Loudspeaker

Precision Coverage for Any Environment

The Community R.5COAX99 is a high-efficiency, full-range 2-way coaxial loudspeaker designed for outstanding music clarity and speech intelligibility in both indoor and outdoor settings. With a wide 90° x 90° coverage pattern, rugged weatherproof housing, and smooth frequency response, the R.5COAX99 is ideal for large-scale distributed systems and environmental audio applications.

Key Features

• Wide 90° x 90° Coverage: Ideal for applications requiring broader sound dispersion without compromising clarity

• Weather-Resistant Design: Rotomolded LLDPE UV-stabilized enclosure and WeatherStop™ grille withstand extreme outdoor conditions

• Smooth Full-Range Output: Covers 80 Hz – 18 kHz with high fidelity and low distortion

• High Power Handling: 200W continuous power (500W program), 126 dB peak SPL

• DYNA-TECH™ Protection: Built-in circuitry protects the drivers from overload without sacrificing performance

• Easy Installation: Comes with weather-resistant yoke and aiming strap for simple and secure mounting

Ideal Applications

• Stadiums, arenas, and athletic fields

• Convention centers and public venues

• Outdoor paging and background music systems

• Amusement parks, fairgrounds, malls, cruise ships

• Swimming pools, skating rinks, portable sound systems

Specifications at a Glance

• Type: 2-way coaxial, horn-loaded, weather-resistant

• Operating Range: 80 Hz – 18 kHz

• Frequency Response (±3.5 dB): 90 Hz – 12.5 kHz

• Power Handling: 200W continuous / 500W program

• Peak Output: 126 dB SPL

• Recommended Amplifier: 420W – 600W @ 8 ohms

• Sensitivity: 96 dB SPL @ 1W / 1m

• Nominal Impedance: 8 ohms

• Minimum Impedance: 3.8 ohms @ 9.9 kHz

• Coverage Pattern: 90° H x 90° V (1.6 kHz – 12.5 kHz)

• Axial Q / DI: 10.7 / 10.3

• Crossover: 2 kHz

• Drivers:

  • LF: 1 x 12" weather-treated

  • HF: 1" exit titanium diaphragm, ferrofluid-cooled

• Input: 12 ft (4 m) SJOW #16 cable

• Recommended Signal Processing: 60 Hz high-pass filter

• Environmental Rating: IP55W with 5° downward aiming recommended

Build & Dimensions

• Enclosure: Light grey, rotomolded LLDPE

• Grille: 3-layer WeatherStop™ (zinc-rich epoxy powder-coated steel, foam, and mesh)

• Mounting Points: (5) 3/8"-16 threaded rigging points

• Height: 16 in (406.4 mm)

• Width: 16 in (406.4 mm)

• Depth: 15.94 in (404.9 mm)

• Weight: 35 lbs (15.9 kg)

• Shipping Weight: 42 lbs (19.1 kg)

What’s Included

• 1x R.5COAX99 Loudspeaker

• 1x Light Grey Weather-Resistant Yoke Bracket

• 1x Aiming Strap

• Installation Manual

Wide Coverage. Full Clarity. All Weather.
The Community R.5COAX99 delivers exceptional sound and unmatched durability—perfect for environments where wide, uniform coverage is essential.
