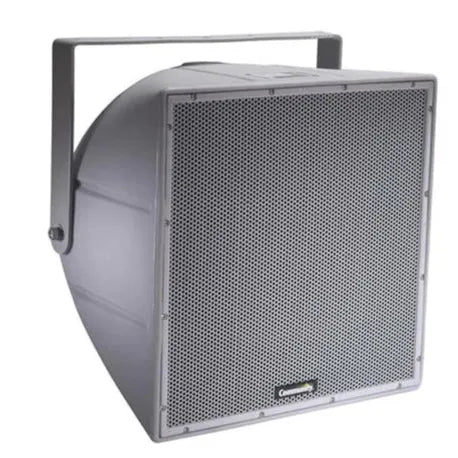

Community 2-Way Coaxial 12-Inch Grey 60x60 Weather-Resistant Full-Range Loudspeaker R.5COAX66

Community R.5COAX66 2-Way Coaxial 12-Inch Grey 60x60 Weather-Resistant Full-Range Loudspeaker

Compact and Clear for Any Environment

The Community R.5COAX66 is a high-fidelity, two-way, full-range loudspeaker system built to deliver crystal-clear music and intelligible speech in both indoor and outdoor environments. With a coaxial horn-loaded design, rugged rotomolded enclosure, and exceptional weather resistance, this speaker is ideal for distributed systems and fill applications where performance and reliability are a must.

Key Features

• Wide Range & High Efficiency: 80 Hz – 18 kHz frequency range with 98 dB sensitivity

• Weather-Resistant Design: UV-stabilized rotomolded LLDPE enclosure and WeatherStop™ 3-layer grille

• Smooth Coverage: 60° x 60° constant-directivity pattern for targeted sound control

• Coaxial Driver Alignment: Integrated LF/HF alignment ensures uniform coverage and accurate sound reproduction

• Built-In DYNA-TECH™ Protection: Guards drivers against overload while maintaining clarity

• Mount Anywhere: Includes weather-resistant yoke mount and aiming strap for flexible installation

Ideal Applications

• Convention centers and malls

• Outdoor paging and background music

• Athletic fields, stadiums, arenas

• Skating rinks, amusement parks, cruise ships

• Portable sound reinforcement

• Swimming pools, air shows, and fairgrounds

Specifications at a Glance

• Loudspeaker Type: 2-way coaxial, horn-loaded, weather-resistant

• Frequency Response: 80 Hz – 18 kHz (±10 dB), 90 Hz – 12.5 kHz (±3.5 dB)

• Power Handling: 200W continuous / 500W program

• Peak Output: 128 dB SPL

• Recommended Amplifier: 420W – 600W @ 8 ohms

• Sensitivity: 98 dB SPL @ 1W / 1m

• Coverage Pattern: 60° x 60° (1.6 kHz – 12.5 kHz)

• Crossover: 2 kHz

• Drivers:

  • LF: 1 x 12" weather-treated

  • HF: 1" exit titanium diaphragm, ferrofluid-cooled

• Impedance: 8 ohms nominal / 4.2 ohms minimum

• Enclosure: Light grey rotomolded LLDPE

• Grille: 3-layer WeatherStop™ powder-coated steel

• Input Connection: 12 ft (4 m) SJOW #16 cable

• Rigging: (5) 3/8"-16 threaded mounting points

• Environmental Rating: IP55W (minimum 5° downward aim recommended)

Dimensions & Weight

• Height: 16 in (406.4 mm)

• Width: 16 in (406.4 mm)

• Depth: 15.94 in (404.9 mm)

• Weight: 35 lbs (15.9 kg)

• Shipping Weight: 42 lbs (19.1 kg)

What’s Included

• 1x R.5COAX66 Loudspeaker

• 1x Yoke Bracket (Weather-Resistant)

• 1x Aiming Strap

• Installation Manual

Compact. Clear. Built to Last.
The R.5COAX66 delivers reliable, high-quality performance wherever you need it—whether on a stadium wall, under a pavilion roof, or on the move.
