Community 2-Way Coaxial 12-Inch Grey 90x90 Weather-Resistant Full-Range 200W 70V/100V Loudspeaker R.5COAX99T

Community R.5COAX99T 2-Way Coaxial 12-Inch Grey 90x90 Weather-Resistant Full-Range 200W 70V/100V Loudspeaker

Reliable Sound for Demanding Outdoor & Indoor Applications

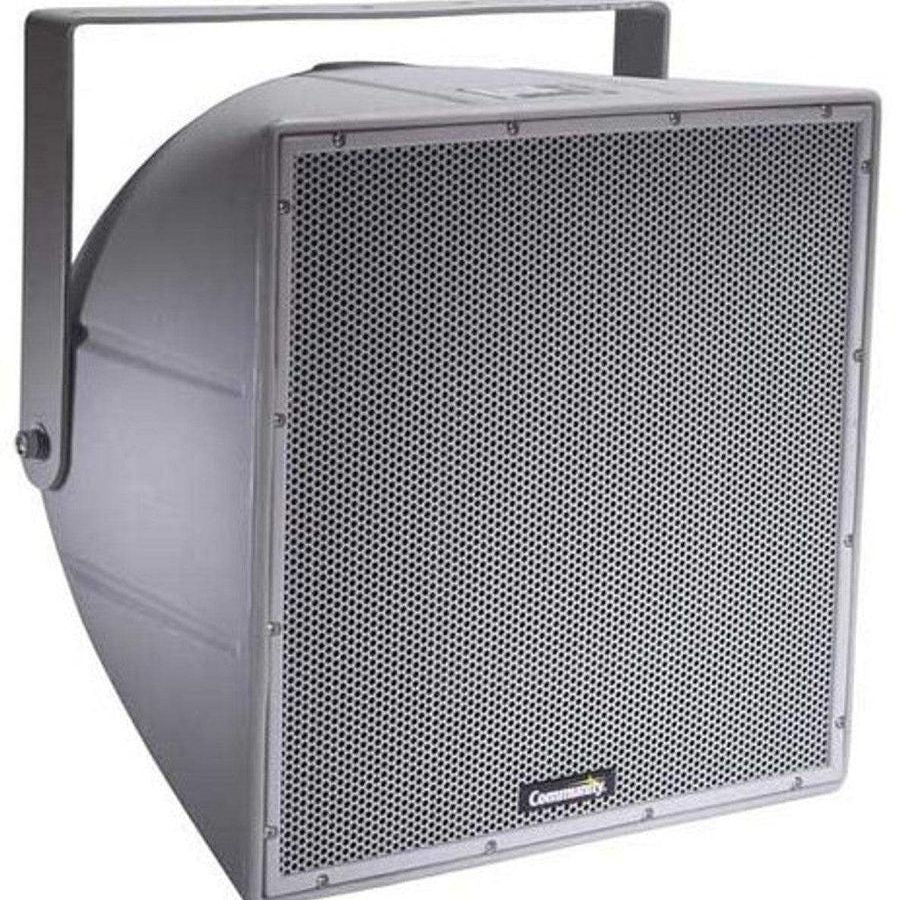

The R.5COAX99T by Community is a high-performance, full-range 2-way coaxial loudspeaker built to withstand the toughest environments. Designed with a factory-installed 200W 70V/100V transformer, this model is perfect for large-scale distributed audio systems where precision coverage and audio clarity are critical. With smooth frequency response, high SPL capability, and rugged weatherproof construction, it’s a dependable choice for paging, music, or voice reinforcement in both permanent and portable setups.

Key Features

• Factory-Installed 70V/100V Transformer
  Integrated 200W autoformer with selectable taps for scalable installations

• High-Efficiency Performance
  Up to 97 dB SPL sensitivity and 126 dB peak output for powerful, intelligible sound

• Durable, Weatherproof Design
  Rotomolded UV-resistant LLDPE enclosure and WeatherStop™ grille for year-round reliability

• Consistent 60° x 60° Coverage Pattern
  Controlled beamwidth and even dispersion across the entire range

• DYNA-TECH™ Driver Protection
  Ensures driver reliability and system longevity under high-demand use

• Easy Mounting & Aiming
  Includes weather-resistant yoke bracket and aiming strap for precise installation

Ideal Applications

• Convention centers, malls, and cruise ships

• Athletic fields, stadiums, arenas, and racetracks

• Swimming pools and skating rinks

• Amusement parks and fairgrounds

• Outdoor paging and background music systems

• Portable PA setups and paging towers

Technical Specifications

• Type: 2-way coaxial, weather-resistant, full-range

• Operating Range: 80 Hz – 18 kHz

• Frequency Response (±3.5 dB): 90 Hz – 13 kHz

• Transformer Taps: 200W / 100W / 50W / 25W @ 70.7V

• Sensitivity:

  • 97 dB SPL @ 1W/1m (100 Hz – 13 kHz)

  • 96 dB SPL (250 Hz – 4 kHz speech range)

• Max SPL: 126 dB peak

• Nominal Impedance: 25 Ohms

• Min Impedance: 15.9 Ohms @ 9.8 kHz

• Coverage Pattern: 60° H x 60° V

• Crossover Frequency: 2 kHz

• Drivers:

  • LF: 1 x 12" weather-treated

  • HF: 1" titanium, ferrofluid-cooled

• Input: 12 ft (4 m) SJOW #16-gauge cable

• Signal Processing: 80 Hz high-pass filter recommended

• Environmental Rating: IP-rated for long-term outdoor use

Build & Dimensions

• Enclosure: Light grey rotomolded LLDPE (UV-resistant)

• Grille: 3-layer WeatherStop™ with zinc-rich epoxy dual-layer coated perforated steel

• Rigging Points: (5) 3/8-16 threaded

• Dimensions:

  • Height: 16 in (406.4 mm)

  • Width: 16 in (406.4 mm)

  • Depth: 15.94 in (404.88 mm)

• Weight: 38.5 lbs (17.46 kg)

• Shipping Weight: 47 lbs (21.3 kg)

What’s Included

• 1x R.5COAX99T Loudspeaker (with 70V/100V transformer)

• 1x Light Grey Weather-Resistant Yoke Bracket

• 1x Aiming Strap

• Installation Manual

Built for Performance. Engineered for the Elements.
The Community R.5COAX99T is your go-to solution for high-impact outdoor or indoor installations that demand both clarity and durability—now with transformer versatility for distributed systems.
