Community All-Weather Outdoor Full-Range Quase 3-Way 8-Inch Black 85 x 85 70V/100V W2-228T

Community W2-228T All-Weather Outdoor Full-Range Quase 3-Way 8-Inch Black 85 x 85 70V/100V

Quasi 3-Way Performance. Compact Design. Transformer-Ready.

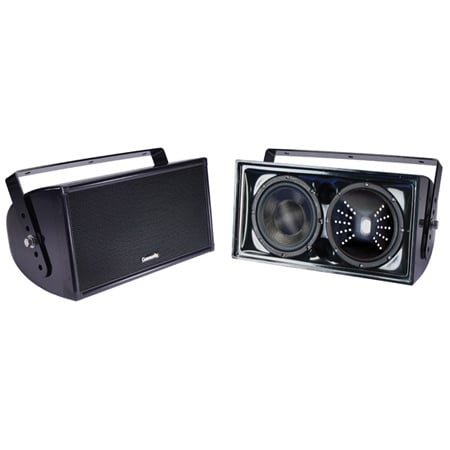

The Community W2-228T loudspeaker is a high-output, quasi three-way full-range system designed for premium performance in compact form. Engineered for short-throw outdoor environments, the W2-228T delivers clear vocal projection and full-range musicality—even in harsh conditions.

This transformer-equipped version includes a factory-installed 200W autoformer, allowing operation on 70V or 100V distributed lines with selectable taps at 200W, 100W, 50W, and 25W, making it ideal for scalable installations.

Dual 8-inch carbon fiber LF and MF/LF cones, combined with a coaxially mounted 1-inch HF compression driver, provide a wide 85° x 85° conical dispersion with smooth response and exceptional durability thanks to Ferrofluid-cooled components and non-metallic, weather-inert diaphragms.

Key Features

• All-Weather Fiberglass Construction
  Multi-layer glass composite enclosure and faceplate with three-layer Weather-Stop™ grille

• 70V/100V Transformer-Ready
  Built-in 200W autoformer with selectable taps (200W, 100W, 50W, 25W) for distributed systems

• Quasi 3-Way Audio Architecture
  Optimized sound dispersion with separate LF, MF/LF, and HF transducers for clear full-range output

• Ferrofluid Cooling
  Enhances heat transfer and increases power handling while reducing distortion

• Stainless Steel Mounting Yoke Included
  Secure and adjustable for fast, reliable installations

Ideal For

• Theme parks and amusement centers

• Outdoor entertainment pavilions

• Stadium fill zones

• Music fountains and water parks

• Cruise ships and marine installations

Technical Specifications

• Format: Quasi 3-way, coaxial full-range loudspeaker

• Operating Range: 70 Hz – 18 kHz

• Frequency Response: 80 Hz – 15 kHz (±3 dB)

• Dispersion: 85° H x 85° V

• Max SPL: 120 dB continuous / 127 dB peak

• Crossover Frequency: 2 kHz

• Sensitivity: 96 dB (100 Hz–13 kHz), 96 dB (speech range)

Power Handling

• Nominal: 250W RMS / 600W Program

• Transformer Taps:

  • 70V: 200W, 100W, 50W, 25W

  • 100V: 200W, 100W, 50W

Impedance: 4 ohms nominal / 3.2 ohms @ 180 Hz

Drivers:

• LF: 1 x 8" carbon fiber

• MF/LF: 1 x 8" carbon fiber

• HF: 1 x 1" polyimide diaphragm, horn-loaded

Mechanical & Build

• Enclosure: Hand-laminated fiberglass, black gelcoat finish

• Grille: Triple-layer Weather-Stop™ stainless steel

• Input:

  • 12 ft (4 m) SJOW #16-2 cable (standard)

  • 18-5 SJOW cable (T-version)

• Mounting:

  • Two 1/2-13 rigging points

  • Included yoke bracket

Dimensions:

• Height: 10.13 in (257 mm)

• Width: 20.00 in (508 mm)

• Depth: 11.50 in (292 mm)

Weight: 36 lbs (16.3 kg)

Reliable, powerful, and ready for outdoor distributed audio systems, the W2-228T is the ultimate solution for environments where both premium sound and weather durability matter most.
