Community All-Weather Outdoor Loudspeaker System Full-Range Quase 3-Way 8-Inch Black 85 x 85 W2-228

Community W2-228 All-Weather Outdoor Loudspeaker System Full-Range Quase 3-Way 8-Inch Black 85 x 85

Compact. Durable. Exceptionally Clear.

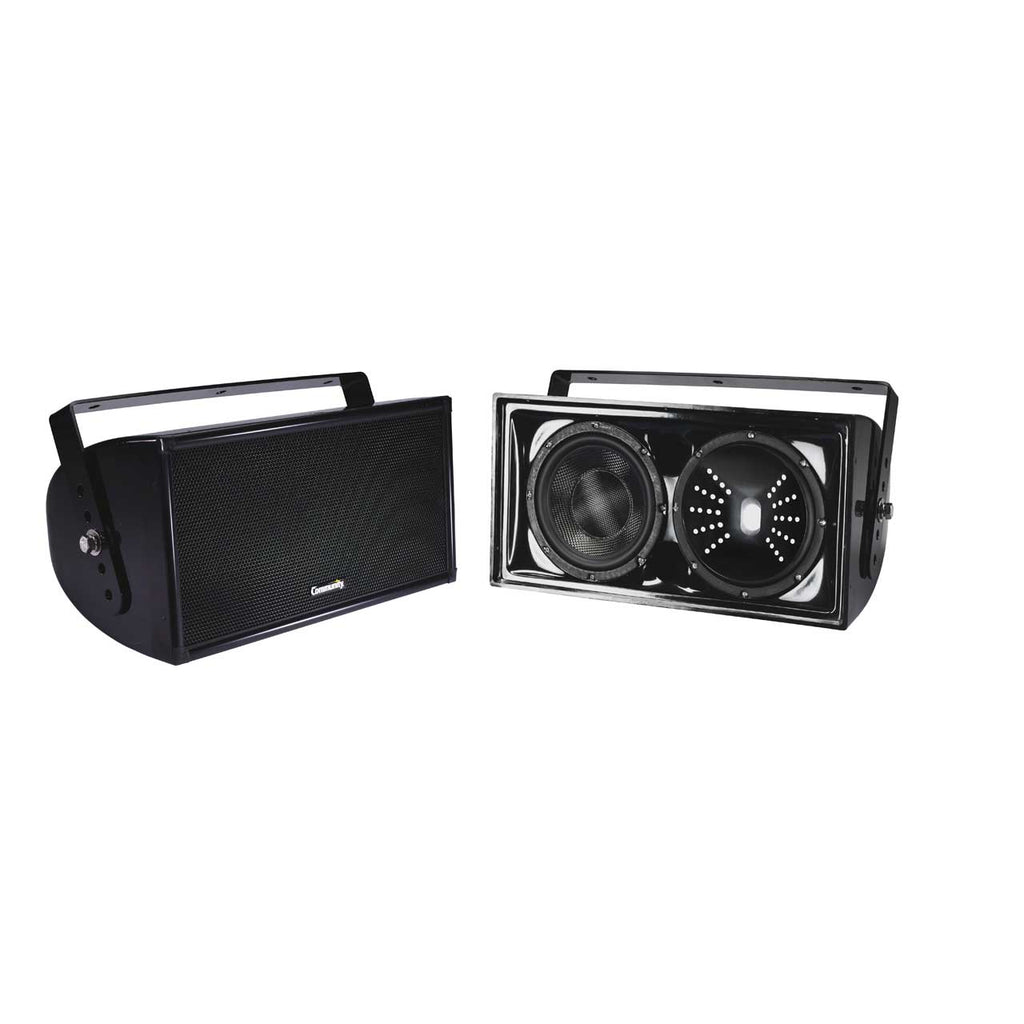

The Community W2-228 is a premium-grade, full-range coaxial loudspeaker system designed for short-throw applications that demand both high-fidelity sound and rugged weather resistance. Featuring dual 8-inch carbon fiber LF and MF/LF drivers and a horn-loaded HF compression driver, the W2-228 delivers controlled 85° x 85° conical dispersion with excellent musical clarity and vocal intelligibility.

Whether mounted vertically or horizontally, the W2-228 maintains its symmetrical coverage pattern, making it ideal for outdoor venues, theme parks, stadium fill zones, and portable sound systems.

Key Features

• Full-Range Premium Sound
  Dual 8-inch carbon fiber cone drivers and a coaxially mounted HF compression driver ensure rich lows, articulate mids, and clear highs

• Controlled 85° x 85° Coverage
  Uniform conical dispersion optimized for short-throw and fill applications

• Built for the Elements
  Multilayer hand-laid fiberglass enclosure, dual-layer Weather-Stop™ grille, and stainless steel hardware withstand long-term exposure to harsh weather

• Flexible Mounting
  Mount vertically or horizontally without altering the coverage pattern

• Included Mounting Yoke
  Durable stainless steel yoke included for fast, secure installation

Applications

• Athletic field fill zones

• Outdoor pavilions and stadiums

• Amusement and theme parks

• Cruise ships and marinas

• Convention centers and outdoor paging systems

• Portable PA for demanding environments

Technical Specifications

• Type: 2-way coaxial full-range, short-throw loudspeaker

• Drivers:

  • LF: 1 x 8" carbon fiber cone

  • MF/LF: 1 x 8" carbon fiber cone

  • HF: 1 x 1" non-metallic diaphragm, horn-loaded

• Operating Range: 70 Hz – 18 kHz

• Sensitivity: 96 dB (1W/1m)

• Power Handling: 250W continuous @ 4 ohms

• Max Output: 120 dB continuous / 126 dB peak

• Coverage Pattern: 85° H x 85° V (conical)

• Crossover: High-power passive crossover network

• Input: Terminal strip connection

• Enclosure Material: Black hand-laid multilayer fiberglass with gloss gelcoat

• Grille: Dual-layer powder-coated stainless steel, Weather-Stop™

• Mounting: Stainless steel, powder-coated yoke included

• Dimensions: 10.1" (H) x 20.0" (W) x 11.5" (D)

• Weight: Approx. 29 lbs (13.2 kg)

What’s in the Box

• 1x Community W2-228 Loudspeaker

• 1x Stainless Steel Mounting Yoke

• Installation Manual

Compact in form, powerful in performance, and built for the outdoors.
The W2-228 is the ideal full-range loudspeaker for installations that demand professional-grade audio in compact, weather-hardened enclosures.
