Name: Community Full-Range 2-Way 12 Inch Grey 90 X 60 High Broadband Output R.5-96MAX
Brand: Community
SKU: R.5-96MAX
Price: 3082.00 USD
Availability: InStock

Community Full-Range 2-Way 12 Inch Grey 90 X 60 High Broadband Output R.5-96MAX

Roll over image to zoom in Click on image to zoom

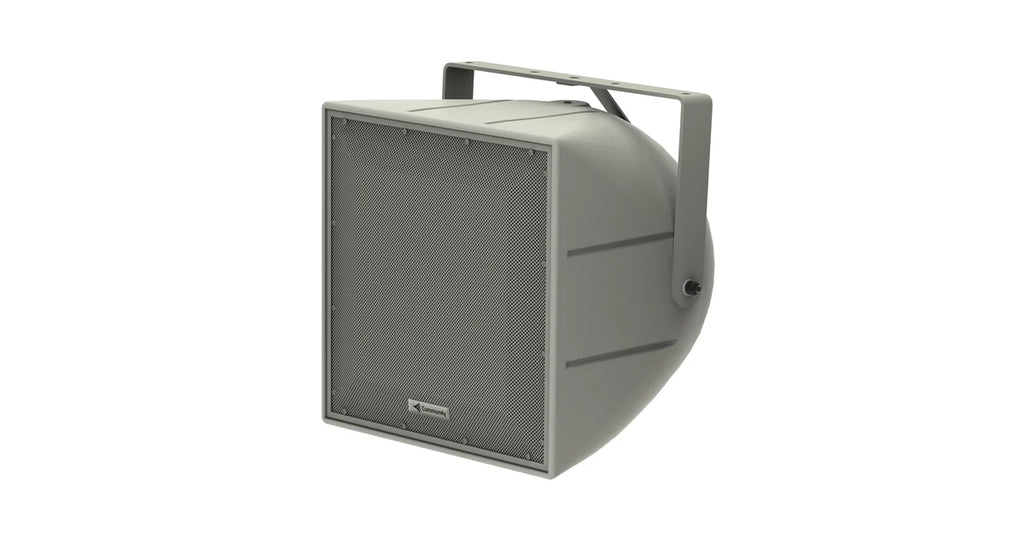

Community R.5-96MAX 12" Full-Range 2-Way Loudspeaker – 90° x 60° Dispersion, Grey

High-Performance Sound, Built for the Elements

The Community R.5-96MAX delivers premium musical clarity, exceptional broadband output, and rugged weather resistance for demanding outdoor or indoor venues. Designed to withstand the harshest environments, this 12" coaxial two-way loudspeaker provides smooth frequency response, flat passive output, and wide dispersion for clear, powerful sound coverage in public areas, sports fields, parks, and more.

Engineered for maximum reliability, this speaker comes equipped with a Weather-Stop™ grille, rotomolded LLDPE enclosure, and corrosion-resistant steel bracket. Ideal for applications where consistent performance and long-term durability are essential.

Key Features

90° x 60° Horn Pattern for wide, controlled coverage
Flat Passive Frequency Response with high broadband output
600W RMS / 1200W Program Power Handling
Rugged Outdoor Design with UV-resistant plastic enclosure
Three-Layer Weather-Stop™ Grille with zinc-rich epoxy coating
Yoke Mount & Aiming Strap Included for easy installation

Specifications

Operating Range: 70 Hz to 20 kHz (-10 dB)
Frequency Response: 95 Hz to 19 kHz (-3 dB)
Sensitivity (1W / 1m): 103 dB (125 Hz – 10 kHz)
Max Input Ratings:
- 600W RMS
- 1200W Program
- 69V RMS / 138V Peak
Maximum Output:
- 131 dB Continuous
- 137 dB Peak
Crossover Frequency: 900 Hz
Recommended Processing: DSP with CONEQ power response correction
Recommended Amplifier: 1200W to 1800W at 8 ohms

Construction & Mounting

Enclosure Material: Rotomolded LLDPE (UV/weather-resistant)
Grille: Steel, three-layer Weather-Stop™, zinc-rich epoxy dual-layer powder coat
Input Cable: 12 ft. (3.6 m) SJOW #16 gauge
Rigging Points: (5) 3/8"-16 threaded points
Bracket Included:
- Steel yoke bracket (dual-layer powder-coated)
- Aluminum aiming strap

Applications

Athletic Fields & Arenas
Theme Parks & Fairgrounds
Outdoor Music & Paging Systems
Convention Centers & Stadiums
Amusement Parks & Recreation Zones
Coastal & High Humidity Installations
