Community Full-Range 2-Way 12-Inch Grey 90x90 All-Weather 70V/100V R.5-99TZ

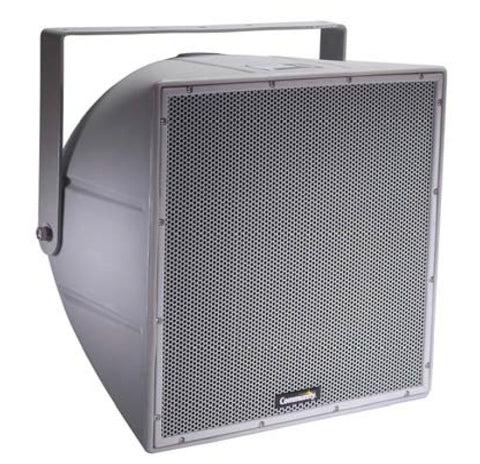

Community R.5-99TZ 12" Full-Range 2-Way Loudspeaker – 90° x 90° Coverage, 70V/100V Transformer

Durable. Dependable. Designed for the Outdoors.

The Community R.5-99TZ loudspeaker is built for powerful sound projection and long-term outdoor reliability. This 12-inch 2-way horn-loaded coaxial speaker offers wide 90° x 90° coverage, delivering crisp, full-range audio for both music and speech in challenging environments. Ideal for stadiums, arenas, parks, and theme venues, the R.5-99TZ ensures excellent intelligibility, low distortion, and flexible 70V/100V compatibility.

Constructed with a UV-resistant rotomolded enclosure and corrosion-resistant zinc-rich epoxy dual-layer powder-coated grille, it’s made to last through extreme weather. It includes a multi-tap 200W autoformer and DYNA-TECH™ driver protection circuitry, making it a reliable performer in high-demand settings.

Key Features

• 90° x 90° Horn Coverage for even, wide-area sound distribution

• Weather-Resistant Construction with rotomolded LLDPE UV-stable enclosure

• 200W Multi-Tap Autoformer for 70V/100V distributed audio systems

• DYNA-TECH Driver Protection ensures long-term performance under load

• Flat, Natural Frequency Response with minimal distortion

• Mounting Hardware Included – yoke bracket & aiming strap

Specifications

• Type: 2-way horn-loaded coaxial, weather-resistant

• Operating Range: 85 Hz to 16 kHz

• Frequency Response: 125 Hz to 10 kHz (±5 dB)

• Sensitivity (1W/1m):

  • 100 dB SPL (125 Hz – 10 kHz)

  • 100 dB SPL (250 Hz – 4 kHz speech range)

• Max SPL (200W Tap): 123 dB

• Nominal Impedance: 25 ohms

• Minimum Impedance: 16.2 ohms @ 8.6 kHz

• Crossover Frequency: 2 kHz

• Recommended Signal Processing: 90 Hz high pass filter

Transformer Taps

• 70V: 200W, 100W, 50W, 25W

• 100V: 200W, 100W, 50W

Driver Configuration

• LF: 1 x 12" Ferrofluid-cooled

• HF: 1" exit, titanium-free, Ferrofluid-cooled

Build & Mounting

• Enclosure: Rotomolded LLDPE, light grey

• Grille: Three-layer WeatherStop™ (steel, foam, poly mesh)

• Input Cable: 12 ft (4 m), SJOW #16 gauge

• Rigging Points: (5) 3/8-16 threaded points

• Mounting Accessories:

  • (1) Yoke bracket

  • (1) Aiming strap

  • Optional PMB Series pole-mount brackets

Dimensions & Weight

• Height: 16 in (406.4 mm)

• Width: 16 in (406.4 mm)

• Depth: 15.94 in (404.88 mm)

• Weight: 37 lbs (16.8 kg)

• Shipping Weight: 42 lbs (19.1 kg)

Ideal Applications

• Sports stadiums, arenas, and race tracks

• Convention centers and exhibition halls

• Theme parks and outdoor venues

• Cruise ships, fairgrounds, and waterparks

• Paging systems in malls, skating rinks, pools

• Portable public address systems
