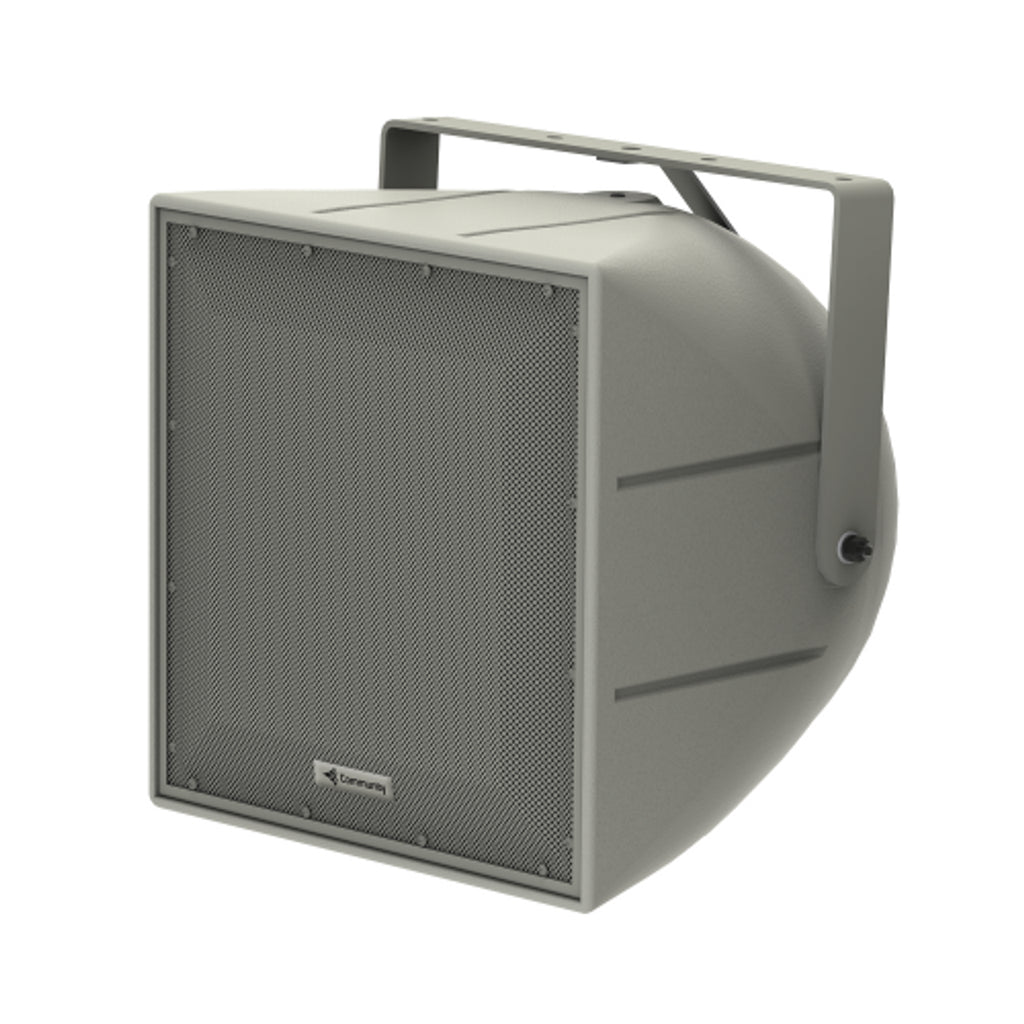

Community R.5-66MAX Full-Range 2-Way 12" Loudspeaker (60° x 60° Coverage) – All-Weather Performance
Engineered for Power. Built to Last.
The Community R.5-66MAX delivers uncompromising musical clarity and high broadband output in a rugged, weather-resistant enclosure built for the outdoors. Its high-performance 2-way design with a 12" LF driver and 1.4" HF compression driver delivers premium sound across the 70 Hz – 20 kHz range with a flat passive response.
Encased in a rotomolded LLDPE plastic housing and protected by a three-layer Weather-Stop™ grille, this speaker withstands the elements while maintaining high-fidelity sound. Whether you’re installing in a stadium, theme park, or resort, the R.5-66MAX is your go-to loudspeaker for outdoor environments.
Key Features
-
60° x 60° Controlled Coverage Pattern for focused, even sound distribution
-
High Power Handling: 600W RMS / 1200W Program
-
Rotomolded UV-Resistant Enclosure for long-term outdoor durability
-
Weather-Stop™ Three-Layer Grille with hydrophobic protection
-
Zinc-Rich Powder-Coated Yoke Bracket and aluminum aiming strap included
Ideal Applications
-
Sports Venues & Stadiums
-
Amusement Parks & Outdoor Theaters
-
Resorts, Patios, and Pool Areas
-
Transportation Hubs & Open Public Spaces
-
Theme Park Attractions
-
Commercial Outdoor Paging and Background Music Systems
Specifications
-
Operating Range: 70 Hz to 20 kHz (−10 dB)
-
Frequency Response: 95 Hz to 19 kHz (−3 dB)
-
Max Input Ratings:
-
600W RMS, 1200W Program
-
69V RMS / 138V Peak
-
Maximum Output:
-
Sensitivity (1W/1m): 103 dB (125 Hz – 10 kHz)
-
Crossover Frequency: 900 Hz
-
Recommended Processing: DSP with CONEQ power response correction
-
Recommended Amplifier Power: 1200W – 1800W @ 8 ohms
-
Enclosure Material: UV-resistant rotomolded LLDPE
-
Grille: Three-layer Weather-Stop™
-
Mounting:
-
(5) 3/8"-16 rigging points
-
Steel dual-layer powder-coated yoke bracket (included)
-
Aluminum aiming strap included
