Community Full-Range 3-Way 8 Inch 90 X 60 R.35-3896

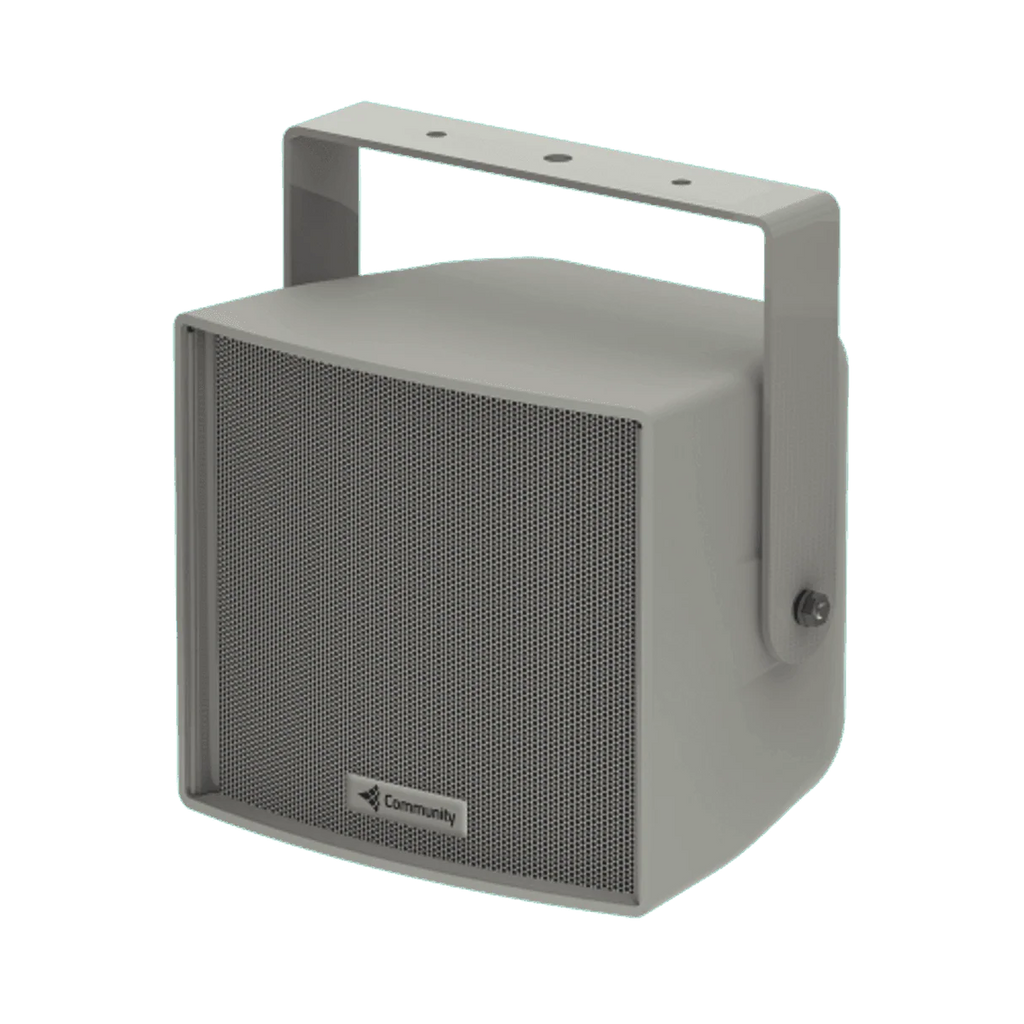

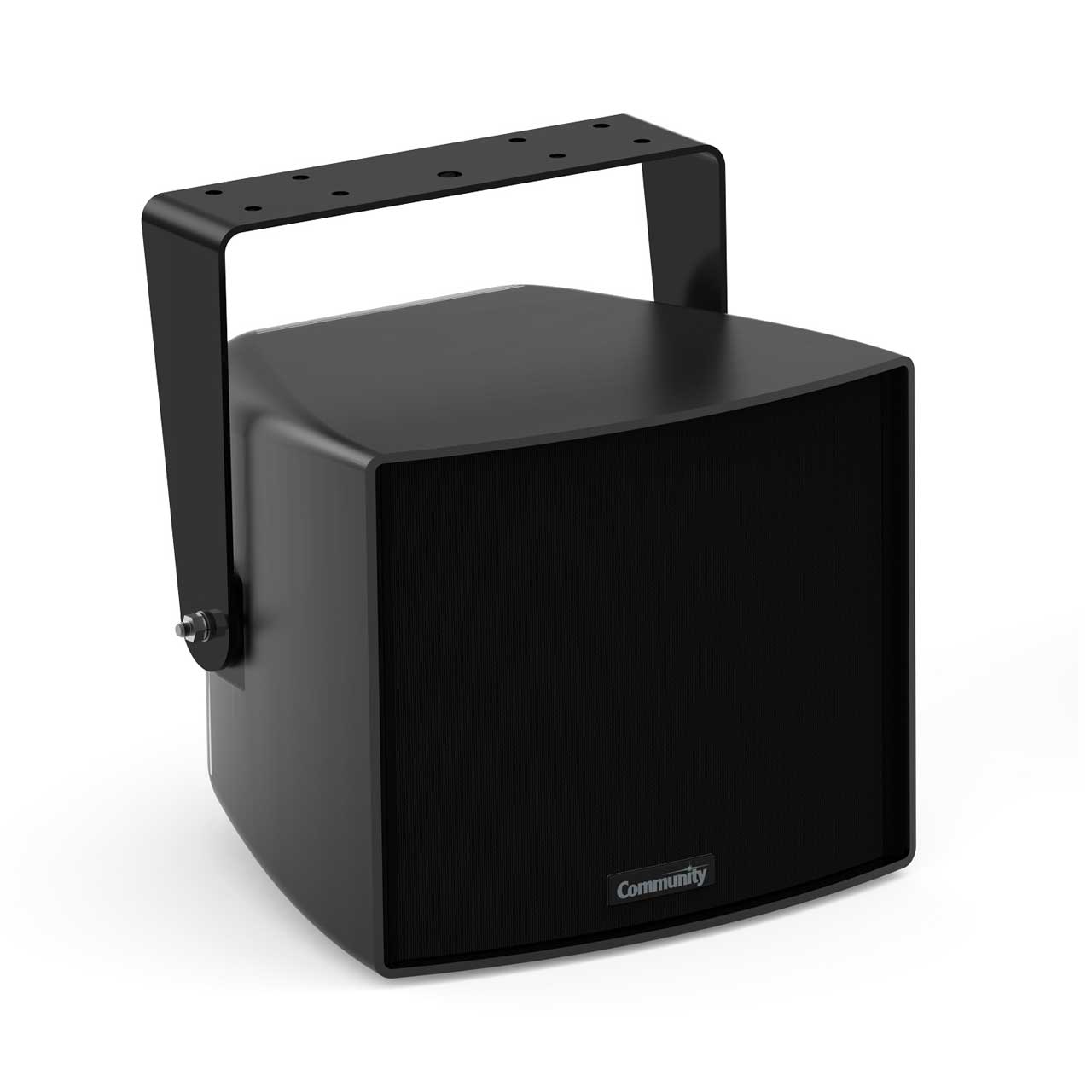

Community R.35-3896 Full-Range 3-Way 8" Loudspeaker (90° x 60°) – Weather-Resistant

Clear, Powerful Audio for Any Environment. Built for Performance.

The R.35-3896 delivers deep bass, crisp midrange, and precise high-frequency clarity in a compact and fully weather-resistant enclosure. With its robust 3-way design, advanced crossover, and high-output compression driver, this loudspeaker ensures exceptional speech intelligibility and musical reproduction, even in challenging acoustic or outdoor environments.

Designed with both aesthetics and durability in mind, the R.35 series features a rugged ABS plastic enclosure, a triple-layer Weather-Stop™ grille with NeverWet™ coating, and multiple mounting options—including a zinc-rich dual-layer powder-coated yoke bracket for simple and secure aiming.

Key Features

• High-Powered 3-Way Design with 8" LF driver and dedicated HF compression driver

• Selectable 8 Ohm or 70V/100V Operation with autoformer taps

• Music/Speech Switch for customizable tonal balance

• Weather/UV-Resistant ABS Enclosure with integral safety cable point

• Three-Layer Weather-Stop™ Grille with hydrophobic NeverWet™ coating

• Zinc-Rich Powder-Coated Yoke Bracket included for flexible mounting

Ideal Applications

• Outdoor stadiums and theme parks

• Houses of worship and performance venues

• Commercial patios, restaurants, and resorts

• Public address systems in harsh weather environments

• Corporate campuses, schools, and recreational facilities

Specifications

• Operating Range: 80 Hz – 16 kHz (−10 dB)

• Frequency Response: 120 Hz – 12.5 kHz (−3 dB)

• Max Input Ratings:

  • 400W RMS, 800W Program

  • 56V RMS, 113V peak

• Autoformer Taps – 70V: 200W, 100W, 50W, 25W and low impedance

• Maximum Output: 124 dB continuous / 130 dB peak

• Sensitivity (1W/1m): 98 dB (125 Hz – 10 kHz)

• Crossover Frequencies: 850 Hz, 2.7 kHz

• Recommended High-Pass Filter: 80 Hz, 24 dB/octave

• Recommended Amplifier Power: 800W to 1200W @ 8 ohms

• Enclosure Material: UV-resistant ABS plastic, paintable

• Grille: Three-layer Weather-Stop™ with NeverWet™ protection

• Mounting Options:

  • (2) M8 rigging points

  • Safety cable mounting point

  • Zinc-rich epoxy dual-layer powder-coated yoke bracket (included)
