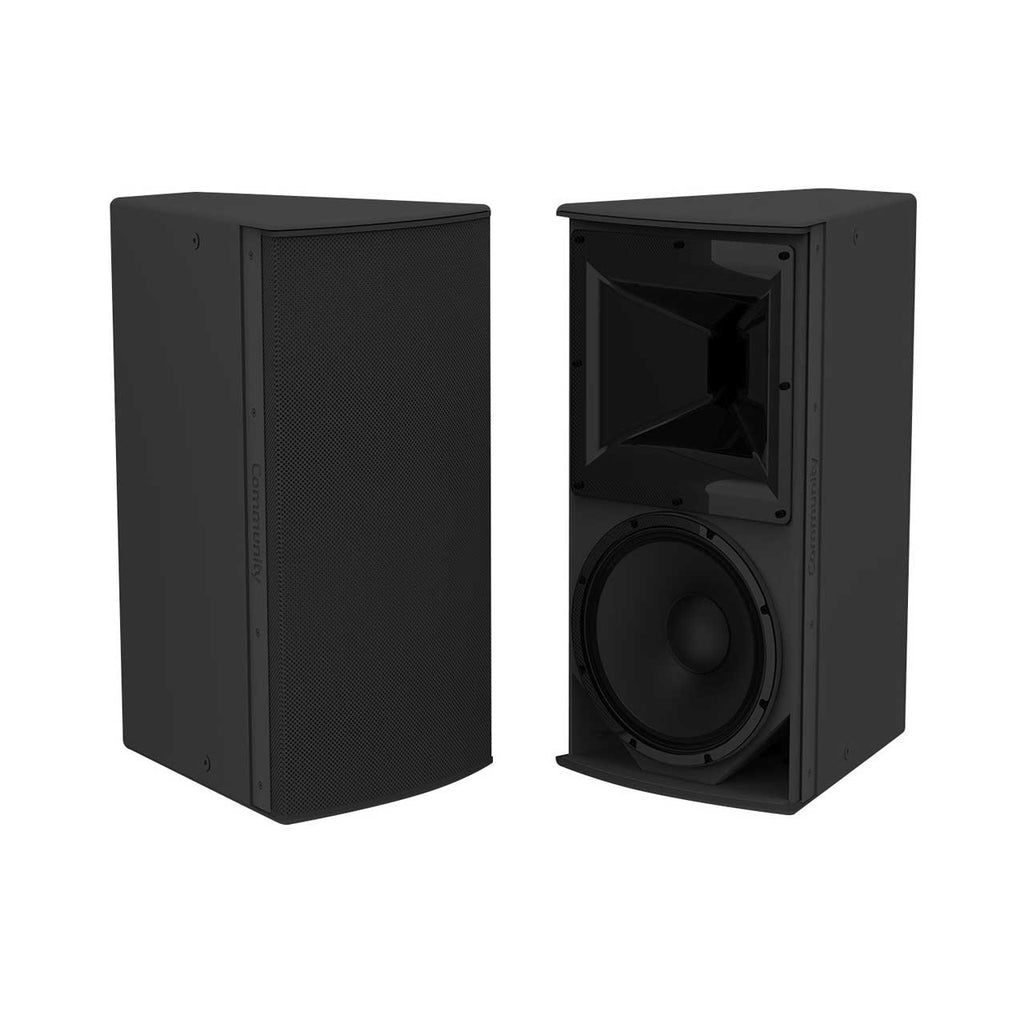

Community IP8-1122/64B 12-Inch 2-Way High Power Installation Loudspeaker – 60° x 40°
Premium Sound Reinforcement for Demanding Installations
The Community IP8-1122/64B is a high-performance, full-range 2-way loudspeaker from the I SERIES Point Source 800 line, engineered for superior clarity, low distortion, and exceptional output. This model features a 12-inch neodymium LF driver and a 1.4-inch exit ketone polymer HF compression driver, delivering transparent, natural sound ideal for professional installations.
Key Features
-
Rotatable 60° x 40° waveguide for optimized coverage
-
Ketone polymer MF and HF diaphragms provide matched sonic characteristics and reduced distortion
-
M200HP compression driver delivers renowned Community intelligibility
-
High-power handling with 800W continuous (3200W peak) at 8 ohms
-
Trapezoidal birch plywood cabinet with a clean, architectural appearance
-
User-selectable passive or biamp operation with optimized crossovers
-
Comprehensive rigging options with 15 M10 threaded mounting points
-
Weather-resistant design (IP55W, MIL-STD-810G) for indoor and outdoor use
Acoustic Excellence
The IP8-1122/64B features:
-
FEA-optimized suspension and neodymium motors with demodulation rings for precise, low-distortion performance
-
Long-excursion LF driver offering extended bass and midrange clarity
-
A rotatable 13" waveguide for consistent off-axis response and enhanced arrayability
Technical Specifications
| Spec |
Detail |
| Frequency Range |
44 Hz – 19 kHz |
| Dispersion (HxV) |
60° x 40° (rotatable) |
| Power Handling |
800W continuous, 3200W peak @ 8Ω |
| Sensitivity |
95 dB (1W/1m), 93 dB EQ'd |
| Max SPL |
130 dB peak, 124 dB continuous |
| LF Driver |
12" neodymium with 3" voice coil |
| HF Driver |
1.4" exit, 2.6" voice coil ketone polymer diaphragm, neodymium |
| Input |
(2) 6-position screw terminal blocks (indoor) or sealed gland with 12 ft cable (outdoor) |
| Mounting |
(15) M10 threaded rigging points |
| Dimensions (H x W x D) |
28.00" x 14.50" x 17.70" (711 x 368 x 450 mm) |
| Weight |
55 lbs (24.9 kg) |
| Environmental Rating |
IP55W per IEC 60529, MIL-STD-810G |
Applications
Ideal for:
-
Houses of Worship
-
Auditoriums & Theaters
-
Stadiums & Arenas
-
Amusement Parks & Nightclubs
-
Corporate AV & Meeting Rooms
-
High-impact indoor or outdoor venues
