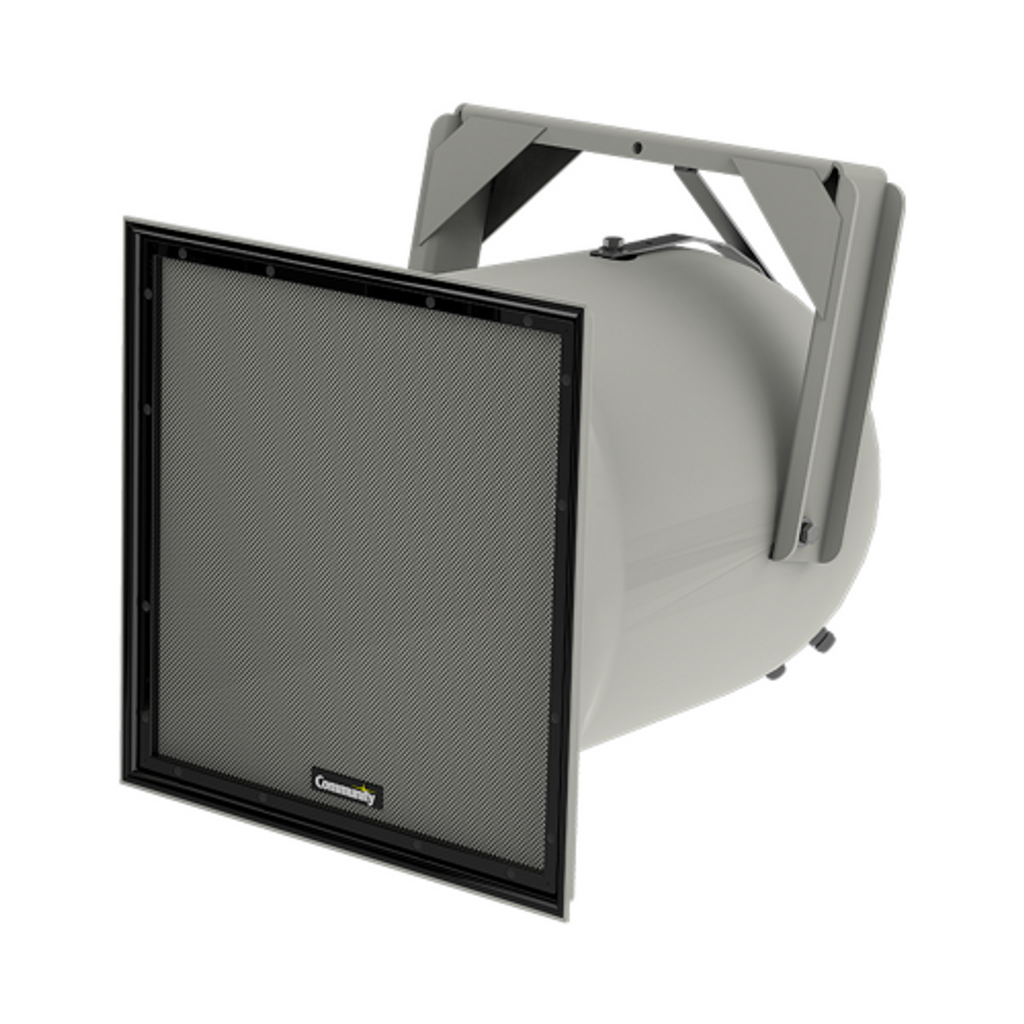

Community R2-474Z Full-Range 3-Way Dual 12-Inch All-Weather Loudspeaker
Precision Projection. Weather-Defying Power.
Engineered for extreme vocal clarity and long-range sound projection, the Community R2-474Z is a high-output, all-weather loudspeaker built for demanding environments. Its unique 3-way design features Community’s legendary M200 midrange compression driver paired with a low flare rate horn, providing incredible vocal intelligibility across vast distances—even in acoustically challenging spaces.
With a tailored 40-70° x 40° coverage pattern, the R2-474Z offers precise directivity for focused sound dispersion. It's ideal for stadiums, arenas, outdoor venues, and any space that requires controlled coverage, weather resistance, and high SPL performance.
Key Features
-
Exceptional Vocal Projection: Equipped with Community’s M200 midrange compression driver for long-throw vocal clarity
-
Three-Way System: Dual 12" LF drivers, 1 M200 MF driver, and 1" HF titanium driver
-
High Efficiency: 106 dB sensitivity, 400W continuous power, 132 dB max SPL (138 dB peak)
-
Weather-Ready: Hand-laminated multilayer fiberglass enclosure with dual-layer powder-coated steel grille
-
Flexible Mounting: Includes weather-resistant yoke mount for easy aiming and secure installation
Ideal Applications
Specifications
-
Transducers:
-
LF: 2 × 12" weather-treated cone
-
MF: 1 × M200 compression driver
-
HF: 1 × 1" titanium diaphragm driver
-
Operating Range: 70 Hz – 16 kHz
-
Sensitivity (1W/1m): 106 dB
-
Continuous Power Handling: 400W @ 4 ohms
-
Maximum Output:
-
132 dB continuous
-
138 dB peak
-
Coverage Pattern (H × V): 40–70° × 40°
-
Enclosure Material: Hand-laminated multilayer fiberglass
-
Finish: Paintable light grey gelcoat
-
Grille: Dual-layer powder-coated steel
-
Mounting: Weather-resistant yoke included
-
Certifications: EN54-24 certified models available
-
Dimensions (H × W × D): 24.8" × 24.8" × 30.8" (629 × 629 × 781 mm)
