Community High Power 15 Inch 2-Way 60 X 40 IP8-1152/64B

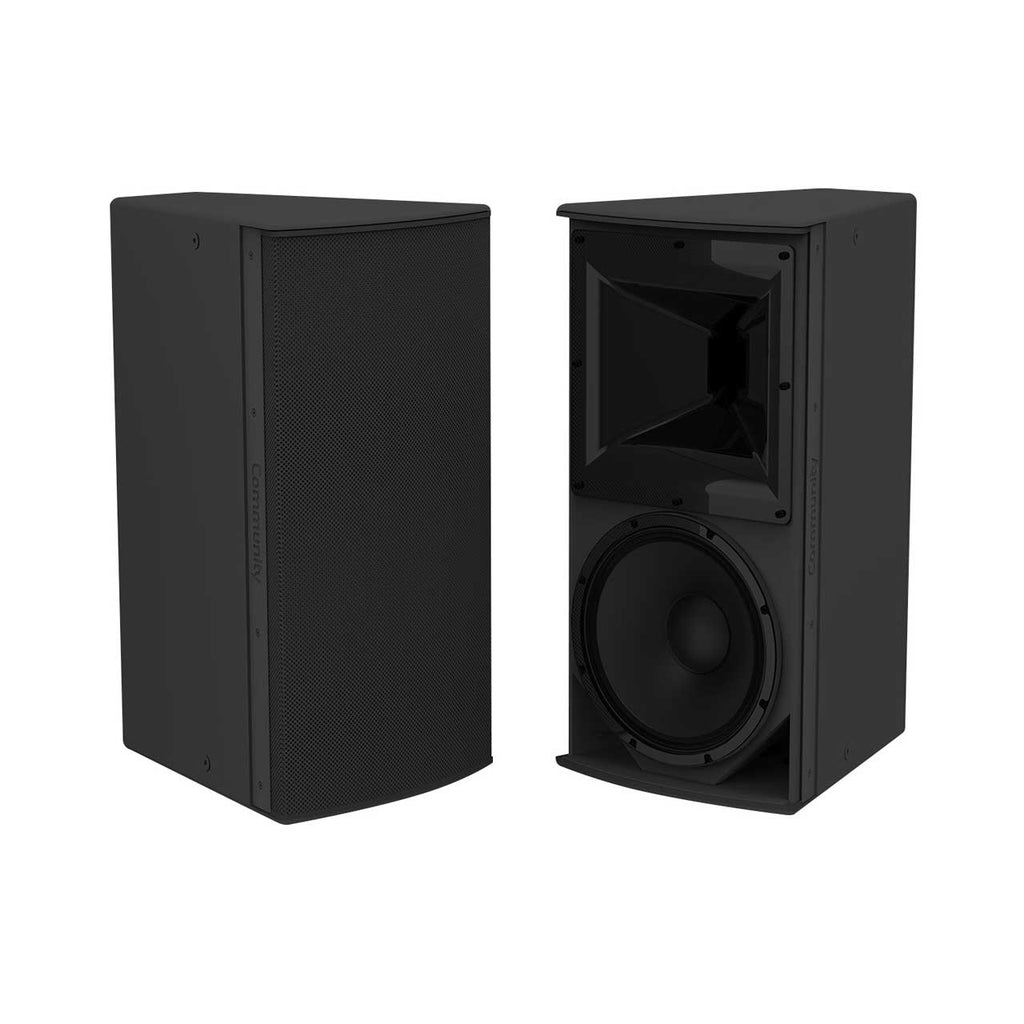

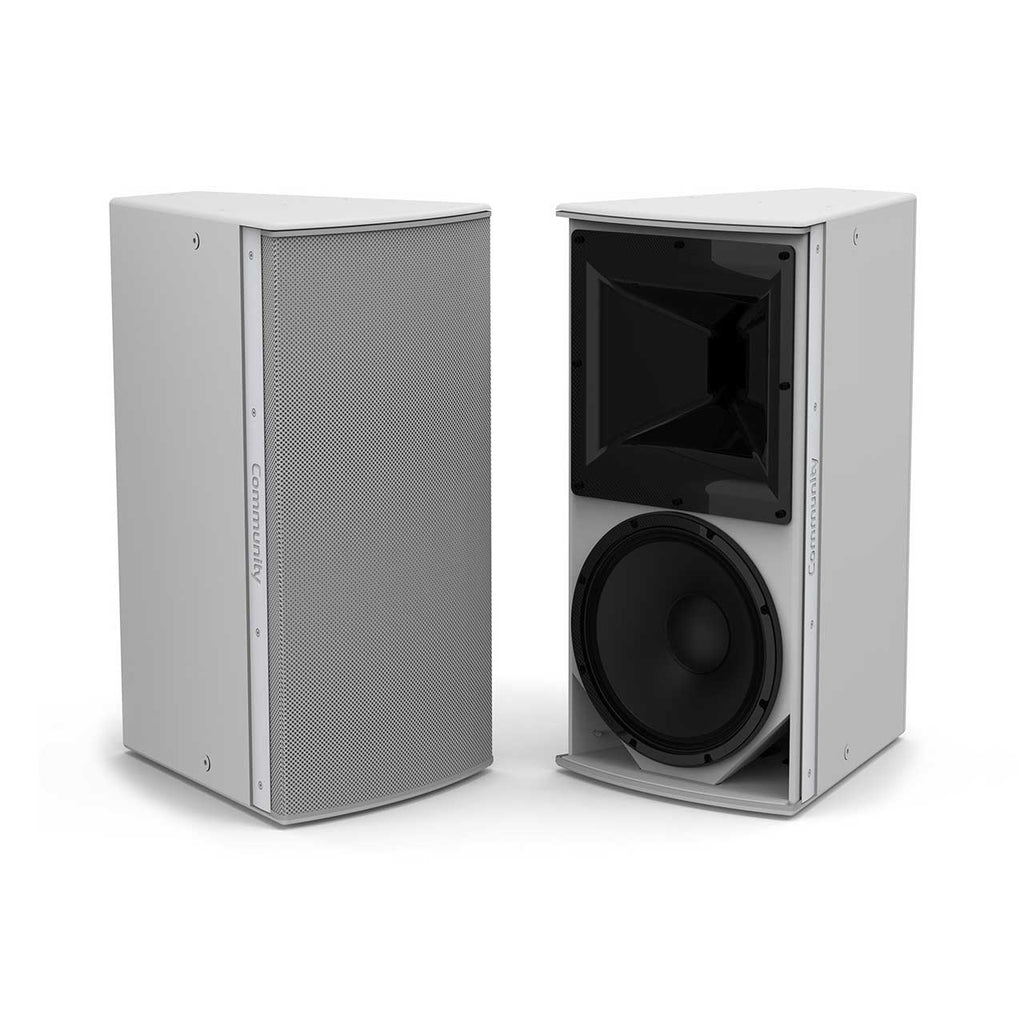

Community IP8-1152/64B High Power 15-Inch 2-Way Loudspeaker (60° x 40° Coverage)

High-Performance Sound with Precision Coverage

The Community IP8-1152/64B is a premium 15-inch 2-way point source loudspeaker engineered for high-output applications requiring focused 60° x 40° coverage. With a trapezoidal birch plywood cabinet and discreet styling, it seamlessly integrates into professional venues while delivering outstanding clarity, deep bass, and low distortion at high SPL levels.

Built for both indoor and outdoor environments, this I SERIES model offers advanced features including a rotatable waveguide, passive or biamp selectable modes, and a comprehensive set of rigging points to support flexible installation.

Key Features

• 15" neodymium woofer with 3" voice coil and demodulation ring for tight, extended low frequency response

• 1.4" HF neodymium compression driver with ketone polymer diaphragm for natural high-frequency clarity

• Rotatable 60° x 40° constant-directivity horn for precise coverage control

• Passive or biamp operation selectable for system flexibility

• Compact, rugged birch plywood enclosure with a low-profile form factor

• 15 integrated M10 rigging points for versatile suspension options

• Weather-resistant outdoor rating (IP55W) for reliable performance in harsh conditions

Ideal Applications

• Performing Arts Centers

• Houses of Worship

• Stadiums and Arenas

• Corporate AV Systems

• Theaters and Auditoriums

• Nightclubs and Amusement Parks

• Restaurants and Meeting Spaces

Technical Specifications

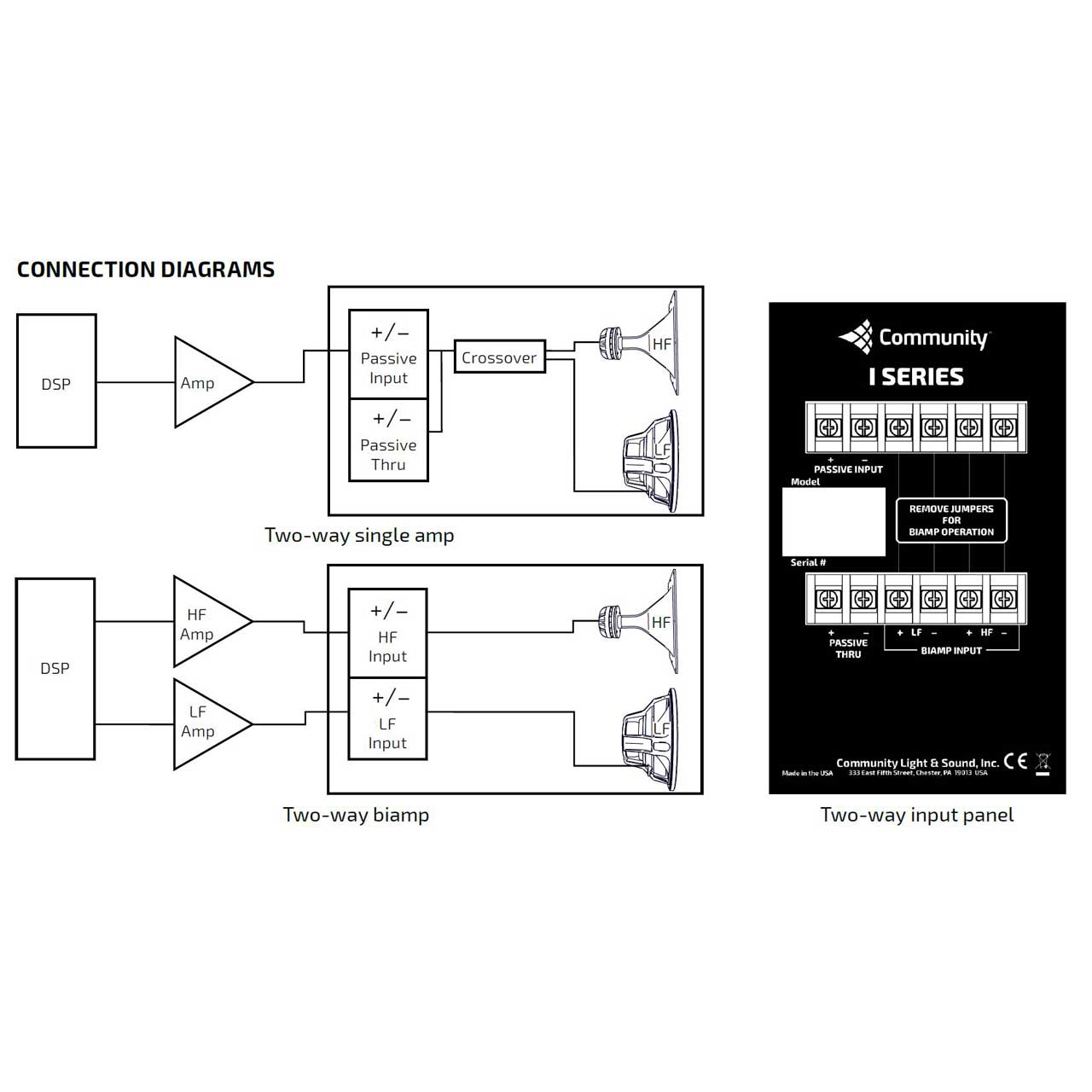

• Operating Mode: Passive or Biamp (DSP required)

• Operating Range: 31 Hz – 19 kHz

• Nominal Dispersion: 60° x 40°, rotatable waveguide

• LF Driver: 15" (381 mm) neodymium woofer with 3" voice coil

• HF Driver: 1.4" (36 mm) exit, 2.6" voice coil, ketone polymer diaphragm

• Power Handling:

  • Passive: 800W continuous (3200W peak)

  • LF: 600W continuous (2400W peak)

  • HF: 80W continuous (320W peak)

• Sensitivity (@1W/1m):

  • Passive: 94 dB

  • LF: 95 dB

  • HF: 108 dB

• Max SPL:

  • Peak: 129 dB

  • Continuous: 123 dB

• Equalized Sensitivity: 94 dB

• Equalized Max SPL: 129 dB peak / 123 dB continuous

• Recommended Amplifiers:

  • Passive: 800W–1600W @ 8 ohms

  • LF: 600W–1200W @ 8 ohms

  • HF: 80W–160W @ 8 ohms

• Input Connections:

  • Indoor: (2) 6-position screw terminal blocks

  • Outdoor: Sealed gland nut with 12 ft (3.6 m) 14 AWG SJOW cable

• Rigging Points: 15 x M10 threaded

• Environmental Rating: IP55W (IEC 60529), MIL-STD-810G

• Dimensions: 30.80" H x 16.50" W x 20.07" D (782 x 419 x 510 mm)

• Weight: 68 lbs (30.8 kg)
