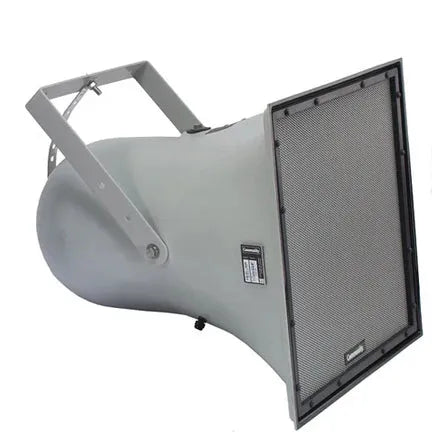

Community Loudspeaker Weather-resistant Three-way Loudspeaker System R2-94Z

Community Loudspeaker R2-94Z Weather-resistant Three-way Loudspeaker System

Engineered for Long-Throw Performance in Any Environment

The Community R2-94Z is a rugged, weather-resistant three-way loudspeaker designed to project high-fidelity, full-range sound over long distances in both indoor and outdoor settings. Its triaxial horn-loaded design, exceptional pattern control, and integrated passive crossover make it ideal for applications where vocal clarity and musical detail must be delivered with power and precision.

Key Features

• All-Horn Triaxial Design: LF, MF, and HF drivers are aligned within precision waveguides for maximum projection and clarity

• Weather-Sealed Construction: Double-wall hand-laminated fiberglass enclosure with WeatherStop™ 3-layer grille

• High-Efficiency Performance: 105 dB sensitivity and up to 138 dB peak SPL

• Application-Specific Coverage: 80° horizontal x 40° vertical beamwidth for controlled, wide-area dispersion

• Passive Operation with DYNA-TECH™ Protection: Dynamic driver protection built into the crossover for reliability

• Easy Installation: Includes weather-resistant yoke mount and multiple rigging points

Ideal Applications

• Stadiums and athletic fields

• Theme parks and racetracks

• Skating rinks and swimming pools

• Cruise ships and fairgrounds

• Portable sound systems and paging setups

• Convention centers and large public venues

Specifications at a Glance

• Loudspeaker Type: 3-way horn-loaded, triaxial, weather-resistant

• Frequency Response: 70 Hz – 16 kHz (±10 dB), 70 Hz – 10 kHz (±5 dB)

• Power Handling: 400W continuous / 1000W program / 138 dB peak SPL

• Recommended Amplifier: 830W – 1200W @ 4 ohms

• Sensitivity: 105 dB SPL @ 1W / 106 dB SPL speech range

• Coverage Pattern:

  • 80° Horizontal x 40° Vertical (1.25 kHz – 10 kHz)

  • 100° x 100° at 400 Hz

• Crossover Frequencies: 600 Hz / 3.5 kHz

• Transducers:

  • LF: Dual 12" weather-treated, ferrofluid-cooled

  • MF: M200 2" exit compression driver

  • HF: 1" exit titanium diaphragm driver

• Environmental Rating: IP55W (5° downward minimum tilt)

• Grille: 3-layer WeatherStop™ zinc-rich dual-layer powder-coated steel

• Input: 12 ft (4 m) SJOW #16 cable

• Rigging: (5) 1/2-13 threaded rigging points

Dimensions & Weight

• Height: 24.75" (629 mm)

• Width: 24.75" (629 mm)

• Depth: 30.75" (781 mm)

• Weight: 96 lbs (43.5 kg)

• Shipping Weight: 124 lbs (56.2 kg)

Included in the Box

• 1x R2-94Z Loudspeaker System

• 1x Weather-Resistant Mounting Yoke

• Pre-installed rigging hardware

• Installation/Operation Manual

Clear. Durable. Proven.
The Community R2-94Z delivers uncompromising clarity, efficient long-throw performance, and rugged durability—perfect for critical outdoor and indoor sound applications.
