Community Medium Power 12 Inch Subwoofer IS6-112B

Community IS6-112B 12-Inch Subwoofer (Medium Power)

Deep Bass. Compact Design. Seamless Integration.

The Community IS6-112B is a high-performance 12-inch subwoofer designed to complement the acclaimed I SERIES loudspeaker line. Engineered for precise low-frequency reinforcement in modern performance venues, this compact subwoofer delivers powerful bass in a sleek, discreet package that’s perfect for flown arrays, ground stacks, or hidden installations.

With 700W continuous power handling, a high-sensitivity ferrite driver, and an enclosure tuned for even air pressure distribution, the IS6-112B offers distortion-free, dynamic performance. Its aligned suspension points and matching face widths enable seamless integration with I SERIES full-range models in both aesthetic and acoustic design.

Key Features

• High-Output 12" Driver: FEA-optimized ferrite motor with 4" voice coil delivers tight, clean bass

• 700W Continuous Power: Handles up to 2800W peak for demanding venues

• Matched Suspension Points: Easily flown with I SERIES full-range cabinets

• Compact, Low Profile: Ideal for floor stacking or concealed sub-bass applications

• Indoor or Weather-Resistant Outdoor Options: Durable and versatile for any installation

Applications

• Houses of Worship

• Performing Arts Centers

• Nightclubs and Bars

• Corporate and Conference Rooms

• Stadiums and Arenas

• Theme Parks & Attractions

Specifications

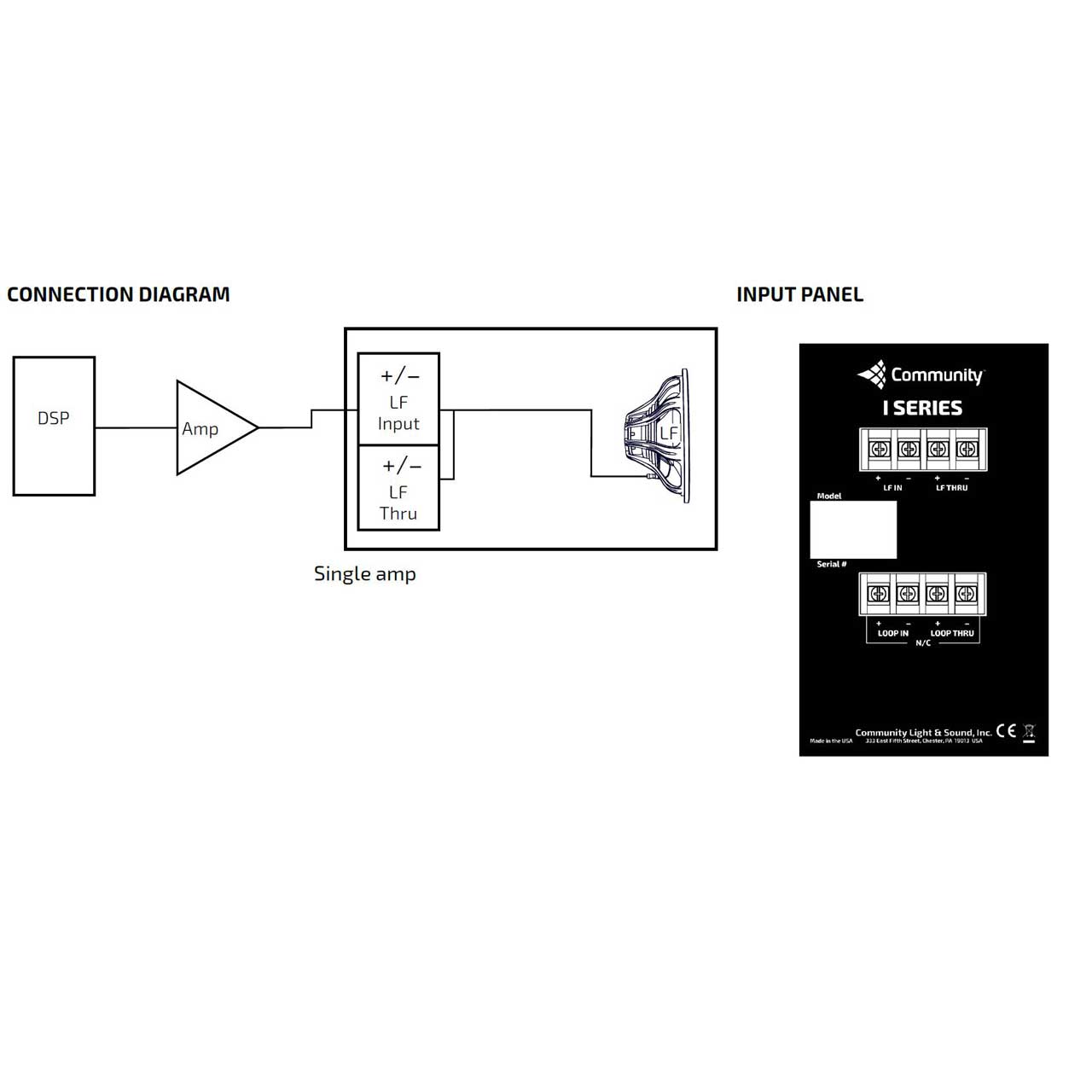

• Operating Mode: Single Amp

• Frequency Response: 39 Hz – 150 Hz

• Transducer: 1 x 12" (305mm) ferrite woofer, 4" inner/outer wound voice coil

• Power Handling:

  • Continuous: 700W @ 8 ohms (75V)

  • Peak: 2800W

• Nominal Sensitivity:

  • Half Space: 100 dB @ 1W/1m

  • Whole Space: 94 dB @ 1W/1m

• Max SPL (Peak / Continuous):

  • Half Space: 130 dB / 124 dB

  • Whole Space: 124 dB / 118 dB

• Equalized Sensitivity:

  • Half Space: 96 dB @ 1W

  • Whole Space: 94 dB @ 1W

• Recommended Amplifier Power: 700W–1400W @ 8 ohms

• Input Connections: (2) Screw terminal blocks (4-position)

• Rigging Points:

  • Indoor: 24 x M10 threaded

  • Outdoor: 22 x M10 threaded

• Environmental Rating: IP55W (per IEC 60529), MIL-STD-810G

• Cabinet Material: Rectangular birch plywood enclosure

• Rubber Feet: Included for floor installation

• Dimensions: 14.30" H x 14.50" W x 21.00" D (363 x 368 x 533 mm)

• Weight: 64 lbs (29.0 kg)
