Community Medium Power 12-inch Two-Way Installation Loudspeaker - 120x60 - IP6-1122/26B

Community IP6-1122/26B – 12" Two-Way Medium Power Installation Loudspeaker (600W, 120° x 60° Coverage)

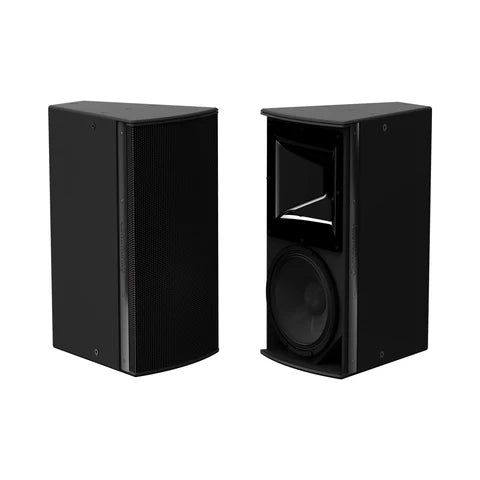

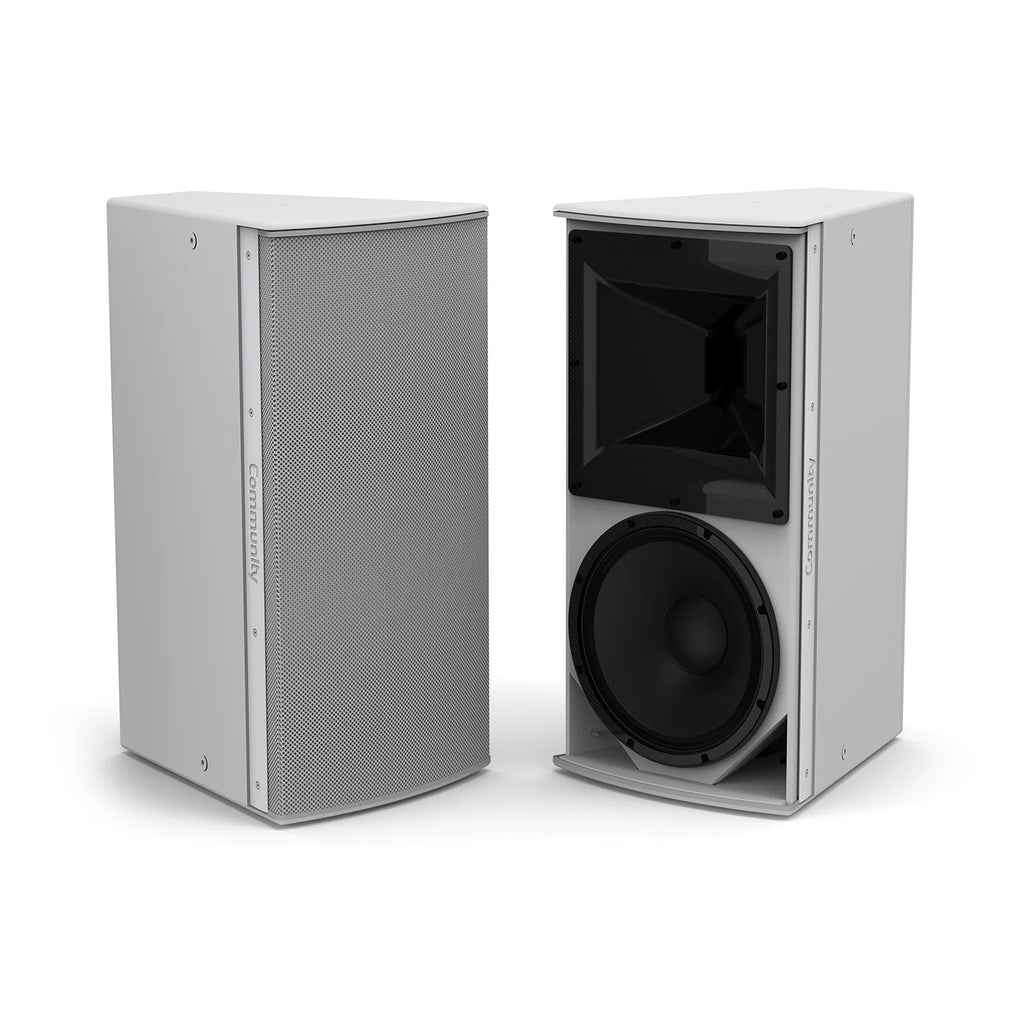

The Community IP6-1122/26B is a high-performance point source installation loudspeaker designed for flexible deployment in modern performance venues and commercial AV environments. As part of the I SERIES Point Source 600 line, it delivers 600 watts of continuous power, exceptional clarity, and consistent coverage in a compact trapezoidal enclosure, engineered for both indoor and weather-resistant outdoor applications.

Ideal for performance halls, houses of worship, clubs, and educational spaces, the IP6-1122/26B features a 12-inch ferrite LF driver, a 3-inch voice coil HF compression driver, and a rotatable 120° x 60° waveguide for highly controlled coverage. Its advanced crossover and selectable passive or biamp mode make it a versatile solution for system designers and integrators.

Key Features

• 600W continuous / 2400W peak power handling in passive mode

• Rotatable 120° x 60° waveguide for flexible horizontal or vertical mounting

• 12" long-excursion LF driver with FEA-optimized ferrite motor

• 1.4" exit HF compression driver with 3" titanium/polyimide diaphragm

• Passive or biamp selectable operation with DSP compatibility

• Consistent voicing and smooth transitions across the frequency spectrum

• Indoor and IP55W-rated outdoor models available

• Multiple M10 rigging points for modular array configurations

• Compact footprint with deep LF extension down to 37 Hz

Technical Specifications

Acoustic Performance

• Operating Mode: Passive or Biamp

• Frequency Range: 37 Hz – 17.5 kHz

• Sensitivity (@1W/1m):

  • Passive: 94 dB

  • LF: 95 dB

  • HF: 104 dB

• Max SPL:

  • Passive: 128 dB peak / 122 dB continuous

  • Equalized: 127 dB peak / 121 dB continuous

• Nominal Coverage: 120° x 60° (rotatable waveguide)

Power Handling (8Ω Nominal)

• Passive: 600W continuous / 2400W peak

• LF (Biamp): 500W continuous / 2000W peak

• HF (Biamp): 75W continuous / 300W peak

• Recommended Amp Power:

  • Passive: 600W–1200W

  • LF: 500W–1000W

  • HF: 75W–150W

Drivers

• LF: 1 × 12" ferrite woofer with 2.5" voice coil

• HF: 1 × 1.4" exit compression driver with 3" voice coil

Construction & Mounting

• Enclosure: Trapezoidal, birch plywood

• Rigging Points: 15 × M10 threaded inserts

• Mounting: Low-profile modular bracket systems

• Finish: Black (RAL finish available)

• Outdoor Version: IP55W-rated (MIL-STD-810G compliant)

Connections

• Indoor: 2 × 6-position screw terminal blocks

• Outdoor: Sealed gland nut with 12 ft (3.6 m) 14-gauge SJOW cable

Dimensions & Weight

• Height: 28.00" (711 mm)

• Width: 14.50" (368 mm)

• Depth: 17.70" (450 mm)

• Weight: 65.0 lbs (29.5 kg)

What’s in the Box

• (1) Community IP6-1122/26B Loudspeaker

• (1) Information Packet

Recommended for: Medium-throw installations in theaters, performance halls, worship spaces, sports venues, and distributed AV systems requiring precision coverage and powerful, full-range audio in a refined enclosure.
