Community Medium Power 12-inch Two-Way Installation Loudspeaker - 60x40 - IP6-1122/64B

Community IP6-1122/64B – 12" Two-Way Installation Loudspeaker (600W, 60° x 40° Coverage)

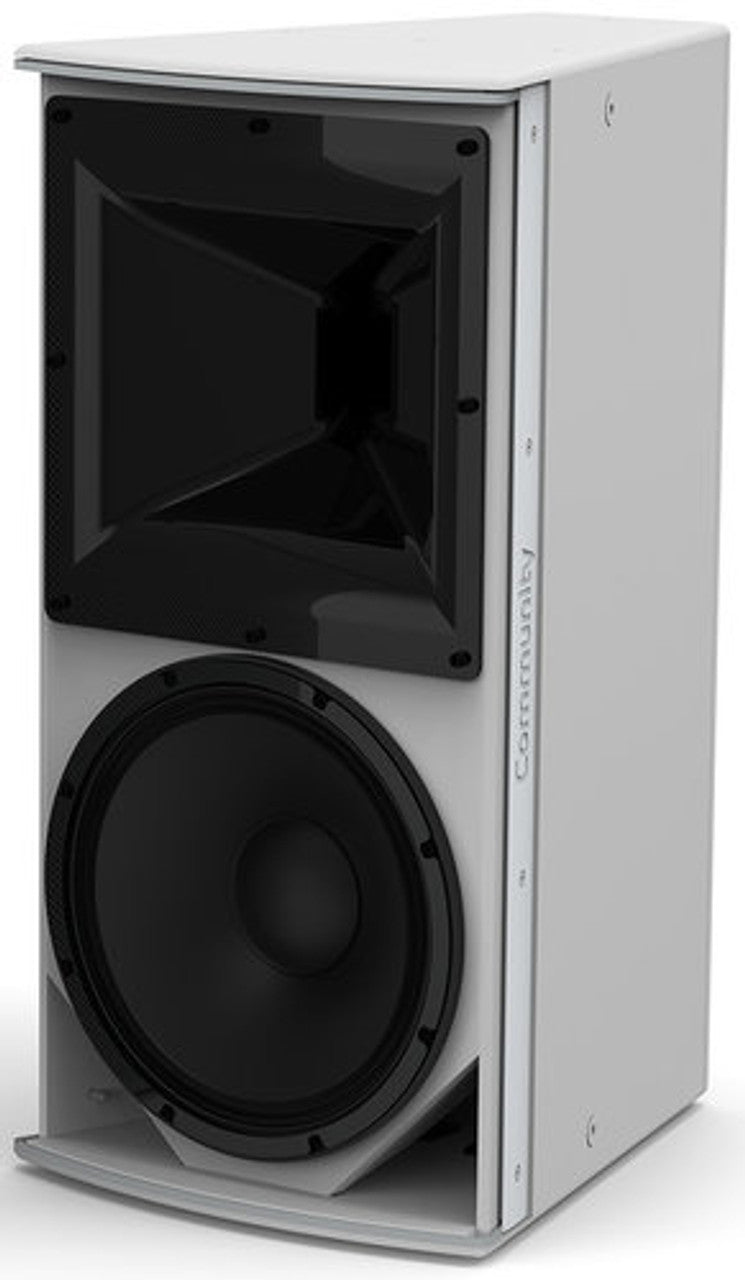

The Community IP6-1122/64B is a premium 12-inch, medium-power point source loudspeaker, designed for permanent installation in indoor or outdoor performance environments. With a compact trapezoidal enclosure and 600W continuous power handling, this model features a narrow 60° x 40° coverage pattern, making it ideal for applications requiring focused directional control.

Part of the I SERIES Point Source 600 family, the IP6-1122/64B is engineered for excellent pattern consistency, rotatable coverage, and low-distortion performance. It delivers articulate vocal clarity and high-output musical fidelity—ideal for houses of worship, auditoriums, arenas, and professional AV installations.

Key Features

• 600W continuous / 2400W peak power handling

• Narrow 60° x 40° coverage for controlled sound distribution

• Rotatable waveguide allows horizontal or vertical mounting flexibility

• 12" ferrite LF driver with 2.5" voice coil and advanced suspension design

• 3" voice coil HF compression driver with hybrid titanium/polyimide diaphragm

• User-selectable passive or biamp operation

• Compatible with low-profile modular mounting hardware

• Indoor and IP55W-rated outdoor models available

• Elegant birch plywood cabinet with architectural finish

• Individually voiced crossovers for consistent sonic character across I SERIES models

Technical Specifications

Performance

• Operating Range: 37 Hz – 17.5 kHz

• Nominal Impedance: 8Ω

• Sensitivity (@1W/1m):

  • Passive: 94 dB

  • LF: 95 dB

  • HF: 104 dB

• Maximum SPL:

  • Passive: 128 dB peak / 122 dB continuous

  • Equalized System: 127 dB peak / 121 dB continuous

Drivers

• LF: 1 × 12" ferrite cone driver (2.5" voice coil)

• HF: 1 × 1.4" exit compression driver (3" voice coil, titanium/polyimide diaphragm)

Power Handling

• Passive: 600W continuous / 2400W peak

• Biamp LF: 500W continuous / 2000W peak

• Biamp HF: 75W continuous / 300W peak

• Recommended Amplifier Power:

  • Passive: 600–1200W @ 8Ω

  • LF: 500–1000W @ 8Ω

  • HF: 75–150W @ 8Ω

Coverage

• Nominal Beamwidth: 60° (H) x 40° (V), rotatable waveguide

Construction & Mounting

• Enclosure: Birch plywood, trapezoidal design

• Mounting Points: (15) M10 threaded rigging inserts

• Indoor Connection: (2) 6-position screw terminal blocks

• Outdoor Connection: Sealed gland nut with 12 ft (3.6 m) 14 AWG SJOW cable

• Environmental Rating: IP55W per IEC 60529, MIL-STD-810G

• Finish: Black (RAL finish available)

Dimensions & Weight

• Height: 28.00" (711 mm)

• Width: 14.50" (368 mm)

• Depth: 17.70" (450 mm)

• Weight: 65.0 lbs (29.5 kg)

What’s in the Box

• (1) Community IP6-1122/64B Loudspeaker

• (1) Documentation Packet

Recommended for: Auditoriums, worship spaces, arenas, and sound reinforcement environments requiring focused sound coverage, modular rigging, and high output with clarity.
