Community IP6-1122/96B – 12" Two-Way Installation Loudspeaker (600W, 90° x 60° Coverage)

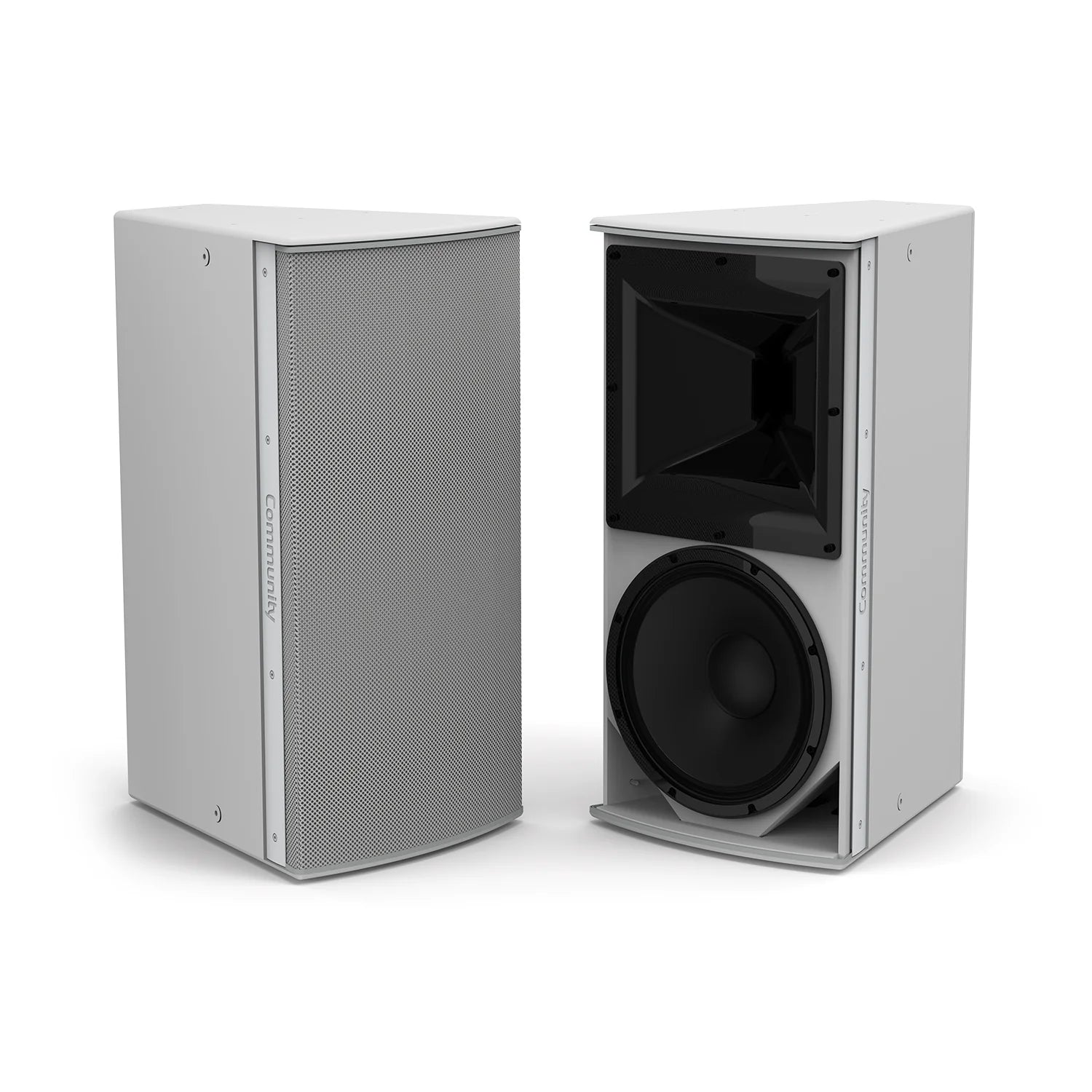

The Community IP6-1122/96B is a medium-power 12-inch two-way loudspeaker designed for permanent installation in performance venues, houses of worship, educational facilities, and commercial AV applications. With its rotatable 90° x 60° waveguide, this model delivers wide horizontal and medium vertical dispersion, ideal for precise audience coverage in distributed or point-source systems.

Part of the acclaimed I SERIES Point Source 600 lineup, the IP6-1122/96B combines advanced transducer design, flexible mounting options, and customizable passive or biamp operation to support diverse application needs in both indoor and weather-resistant outdoor environments.

Key Features

• 600W continuous / 2400W peak power handling

• 90° x 60° rotatable constant-directivity waveguide

• 12" ferrite LF driver with 2.5" voice coil

• 1.4" exit HF compression driver with 3" hybrid titanium/polyimide diaphragm

• Passive or biamp selectable mode for flexible integration

• Individually voiced crossover ensures consistent performance across the series

• Low-profile modular bracket system compatibility for streamlined array mounting

• Available in standard and IP55W-rated weather-resistant enclosures

Technical Specifications

Acoustic Performance

• Operating Range: 37 Hz – 19 kHz

• Nominal Impedance: 8 ohms

• Sensitivity (@1W/1m):

  • Passive: 94 dB

  • LF: 95 dB

  • HF: 104 dB

• Maximum SPL:

  • Passive: 128 dB peak / 122 dB continuous

  • HF only: 129 dB peak / 123 dB continuous

  • Equalized System: 127 dB peak / 121 dB continuous

Power Handling

• Passive: 600W continuous / 2400W peak

• Biamp LF: 500W continuous / 2000W peak

• Biamp HF: 75W continuous / 300W peak

• Recommended Amplifiers:

  • Passive: 600–1200W @ 8Ω

  • LF: 500–1000W @ 8Ω

  • HF: 75–150W @ 8Ω

Drivers

• LF: 1 × 12" ferrite woofer (2.5" voice coil)

• HF: 1 × 1.4" exit compression driver (3" voice coil, hybrid diaphragm)

Coverage

• Nominal Beamwidth: 90° (H) × 60° (V), rotatable

• Waveguide: 13" (330 mm), constant-directivity design

Construction & Mounting

• Enclosure: Trapezoidal birch plywood, black finish

• Mounting Points: (15) M10 threaded rigging inserts

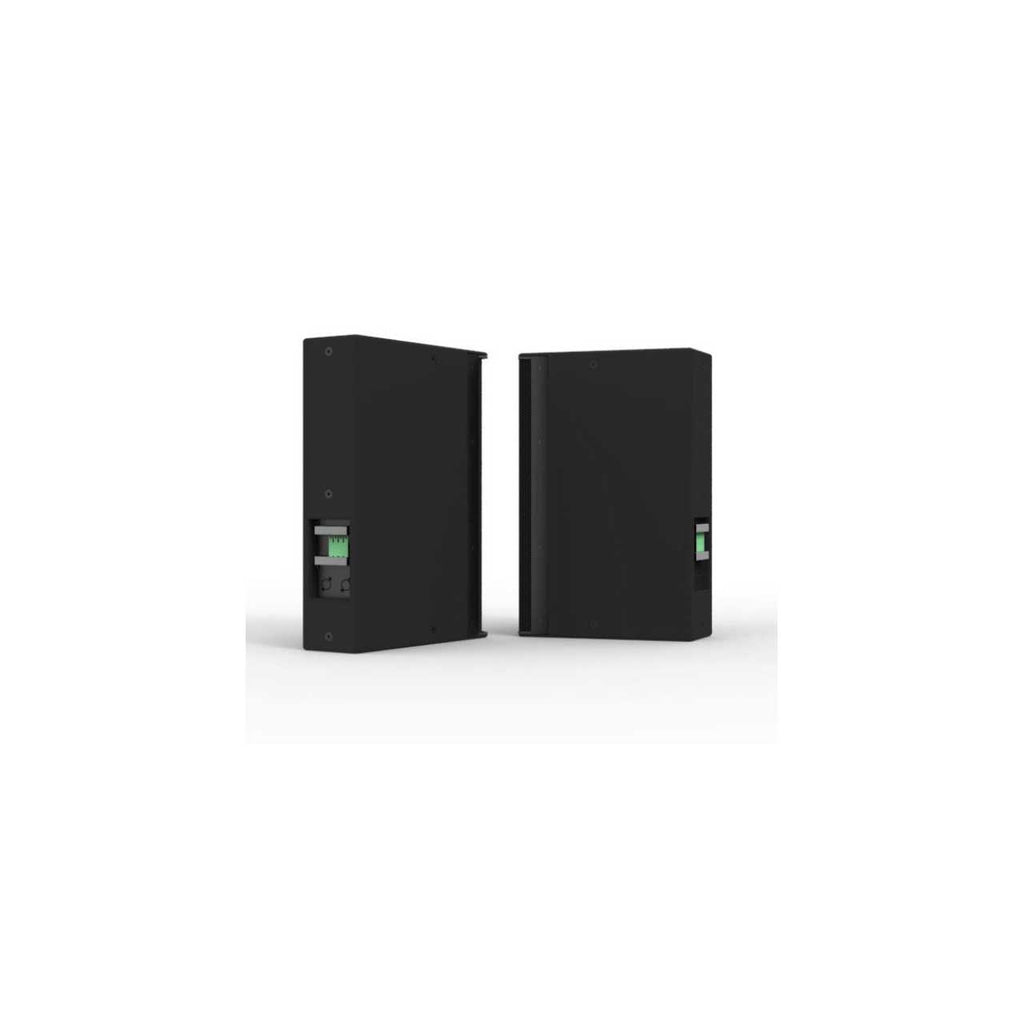

• Indoor Connection: (2) 6-position screw terminal blocks

• Outdoor Connection: Sealed gland nut with 12 ft (3.6 m) 14 AWG SJOW cable

• Environmental Rating: IP55W (IEC 60529, MIL-STD-810G compliant)

Dimensions & Weight

• Height: 28.00" (711 mm)

• Width: 14.50" (368 mm)

• Depth: 17.70" (450 mm)

• Weight: 65.0 lbs (29.5 kg)

What’s in the Box

• (1) Community IP6-1122/96B Loudspeaker

• (1) Documentation Packet

Recommended for: Performance venues, churches, educational spaces, and corporate installations needing consistent mid-throw coverage, flexible rigging, and high output in a compact enclosure.
