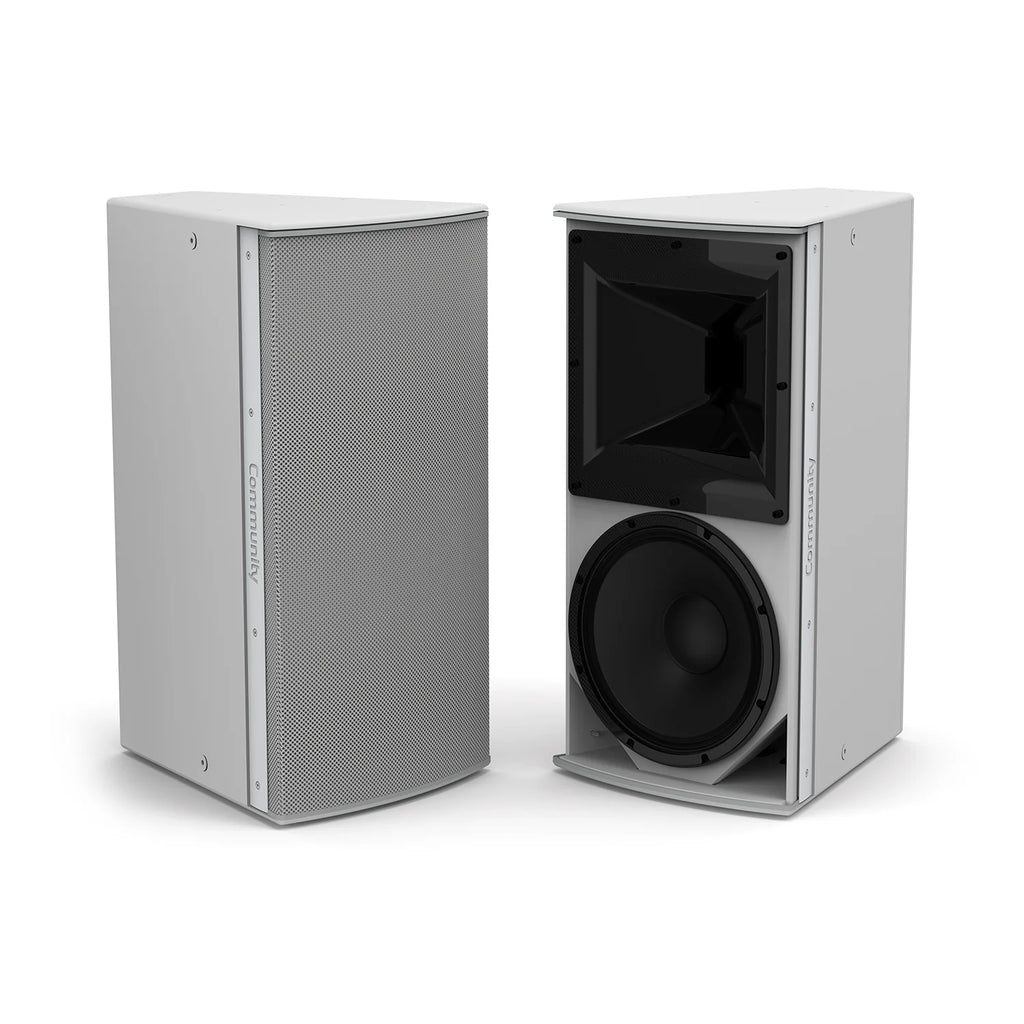

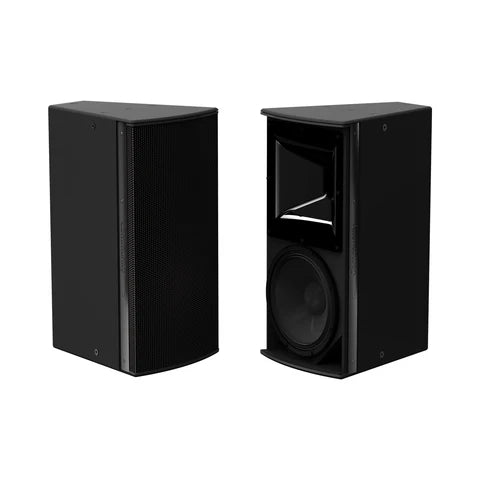

Community Medium Power 12-inch Two-Way Installation Loudspeaker - 90x90 IP6-1122/99B

Community IP6-1122/99B – 12" Two-Way Installation Loudspeaker (600W, 90° x 90° Coverage)

The Community IP6-1122/99B is a high-performance 12-inch two-way loudspeaker featuring a 90° x 90° rotatable waveguide for symmetrical, wide-area coverage. Designed for permanent indoor or weather-resistant outdoor installations, this model combines high-output capability, excellent pattern consistency, and superior fidelity in a rugged birch plywood enclosure.

Engineered as part of the I SERIES Point Source 600 family, the IP6-1122/99B is ideal for distributed audio systems, main reinforcement, and delay zones in spaces such as worship centers, theaters, stadium concourses, corporate auditoriums, and more.

Key Features

• 600W continuous / 2400W peak power handling

• 90° x 90° constant-directivity waveguide, rotatable for horizontal or vertical orientation

• 12" long-excursion LF driver with 2.5" voice coil

• 1.4" exit HF compression driver with 3" hybrid titanium/polyimide diaphragm

• Selectable passive or biamp mode for integration flexibility

• Individually voiced crossover for consistent response across I SERIES models

• Modular mounting compatibility with low-profile array brackets

• Available in weather-resistant outdoor configuration (IP55W rated)

Technical Specifications

Acoustic Performance

• Operating Range: 36 Hz – 19 kHz

• Nominal Impedance: 8 ohms

• Sensitivity (@1W/1m):

  • Passive: 94 dB

  • LF: 95 dB

  • HF: 104 dB

• Maximum SPL:

  • Passive: 128 dB peak / 122 dB continuous

  • HF only: 129 dB peak / 123 dB continuous

  • Equalized System: 127 dB peak / 121 dB continuous

Power Handling

• Passive: 600W continuous / 2400W peak

• Biamp LF: 500W continuous / 2000W peak

• Biamp HF: 75W continuous / 300W peak

• Recommended Amplifiers:

  • Passive: 600–1200W @ 8Ω

  • LF: 500–1000W @ 8Ω

  • HF: 75–150W @ 8Ω

Drivers

• LF: 1 × 12" ferrite cone driver (2.5" voice coil)

• HF: 1 × 1.4" exit compression driver (3" voice coil, hybrid diaphragm)

Coverage

• Nominal Beamwidth: 90° (H) × 90° (V), rotatable

• Waveguide: 13" (330 mm), constant-directivity

Construction & Mounting

• Enclosure: Trapezoidal birch plywood, black finish

• Mounting: 15 × M10 threaded rigging points

• Indoor Connection: (2) 6-position screw terminal blocks

• Outdoor Connection: Sealed gland nut with 12 ft (3.6 m) 14 AWG SJOW cable

• Environmental Rating: IP55W (IEC 60529, MIL-STD-810G)

Dimensions & Weight

• Height: 28.00" (711 mm)

• Width: 14.50" (368 mm)

• Depth: 17.70" (450 mm)

• Weight: 65.0 lbs (29.5 kg)

What’s in the Box

• (1) Community IP6-1122/99B Loudspeaker

• (1) Documentation Packet

Recommended for: Installations needing wide, uniform coverage such as auditoriums, gymnasiums, stadium zones, or any venue requiring symmetrical horizontal and vertical dispersion with high output and minimal distortion.
