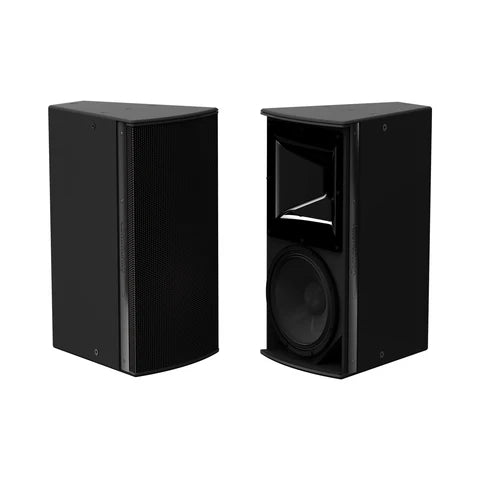

Community IP6-1152/66B – 15" Two-Way Installation Loudspeaker (600W, 60° x 60° Coverage)

The Community IP6-1152/66B delivers high-performance, full-range sound in a compact yet powerful form factor. Built around a 15-inch long-excursion woofer and a 3-inch voice coil HF compression driver, this loudspeaker offers 600W continuous power handling and uniform 60° x 60° coverage, making it ideal for performance venues requiring even dispersion and consistent tonal quality throughout the listening area.

Part of the I SERIES Point Source 600 family, this loudspeaker is designed for both indoor and weather-resistant outdoor installations. It features a rotatable constant-directivity waveguide, allowing system designers to tailor horizontal or vertical coverage as needed. With a birch plywood cabinet, advanced thermal protection, and modular rigging compatibility, the IP6-1152/66B is ready for the most demanding professional sound environments.

Key Features

• 600W continuous / 2400W peak power

• 60° x 60° rotatable waveguide for controlled, symmetrical coverage

• 15" ferrite LF driver with deep bass response to 32 Hz

• 3" HF diaphragm with hybrid titanium/polyimide composition for high fidelity

• User-selectable passive or biamp operation

• Weather-resistant design (IP55W rated)

• 15 M10 mounting points for versatile rigging and installation

Technical Specifications

Acoustic Performance

• Operating Range: 32 Hz – 19 kHz

• Nominal Sensitivity (@1W/1m):

  • Passive: 94 dB

  • LF: 95 dB

  • HF: 104 dB

• Maximum SPL:

  • Passive: 128 dB peak / 122 dB continuous

  • Equalized: 127 dB peak / 121 dB continuous

Power & Impedance

• Impedance: 8 Ohms

• Passive: 600W continuous / 2400W peak

• LF (biamp): 500W continuous / 2000W peak

• HF (biamp): 75W continuous / 300W peak

• Recommended Amplifiers:

  • Passive: 600–1200W @ 8Ω

  • LF: 500–1000W @ 8Ω

  • HF: 75–150W @ 8Ω

Driver Configuration

• LF: 1 × 15" (381 mm) ferrite driver, 3" voice coil

• HF: 1 × 1.4" exit compression driver, 3" hybrid diaphragm

Horn & Coverage

• Coverage Pattern: 60° (H) × 60° (V), rotatable

• Waveguide Size: 13" (330 mm)

Enclosure & Connections

• Cabinet: Trapezoidal birch plywood, black finish

• Mounting Points: 15 × M10 threaded rigging inserts

• Input (Indoor): (2) 6-position screw terminal blocks

• Input (Outdoor): Sealed gland nut with 12 ft (3.6 m) 14 AWG SJOW cable

• Environmental Rating: IP55W (IEC 60529), MIL-STD-810G

Physical Specs

• Weight: 79 lbs (35.8 kg)

• Dimensions: 30.80" (H) × 16.50" (W) × 20.07" (D)

Included in the Box

• (1) Community IP6-1152/66B Loudspeaker

• (1) User Documentation Packet

Ideal For:
Large-scale installations where precision, reliability, and broad, uniform coverage are key—such as in houses of worship, arenas, stadiums, theaters, and event spaces.
