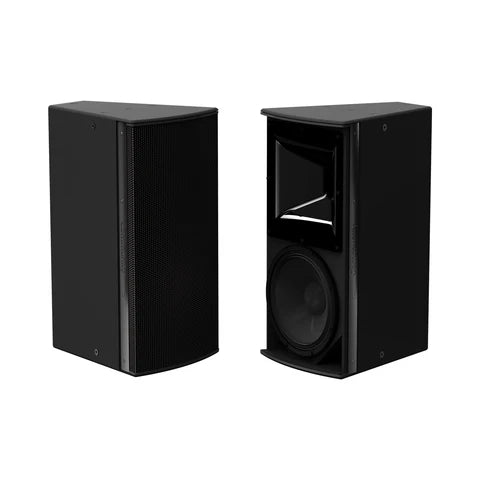

Community Medium Power 15-inch Two-Way Installation Loudspeaker - 90x40 IP6-1152/94B

Community IP6-1152/94B – 15" Two-Way Installation Loudspeaker (600W, 90° x 40° Coverage)

The Community IP6-1152/94B is a high-performance, medium-power loudspeaker designed for fixed installations requiring controlled, long-throw coverage. With a 15-inch ferrite LF driver, a 3-inch voice coil HF compression driver, and a precisely engineered 90° x 40° rotatable waveguide, this speaker delivers powerful projection, clarity, and low distortion—perfect for venues where speech intelligibility and musical accuracy are critical.

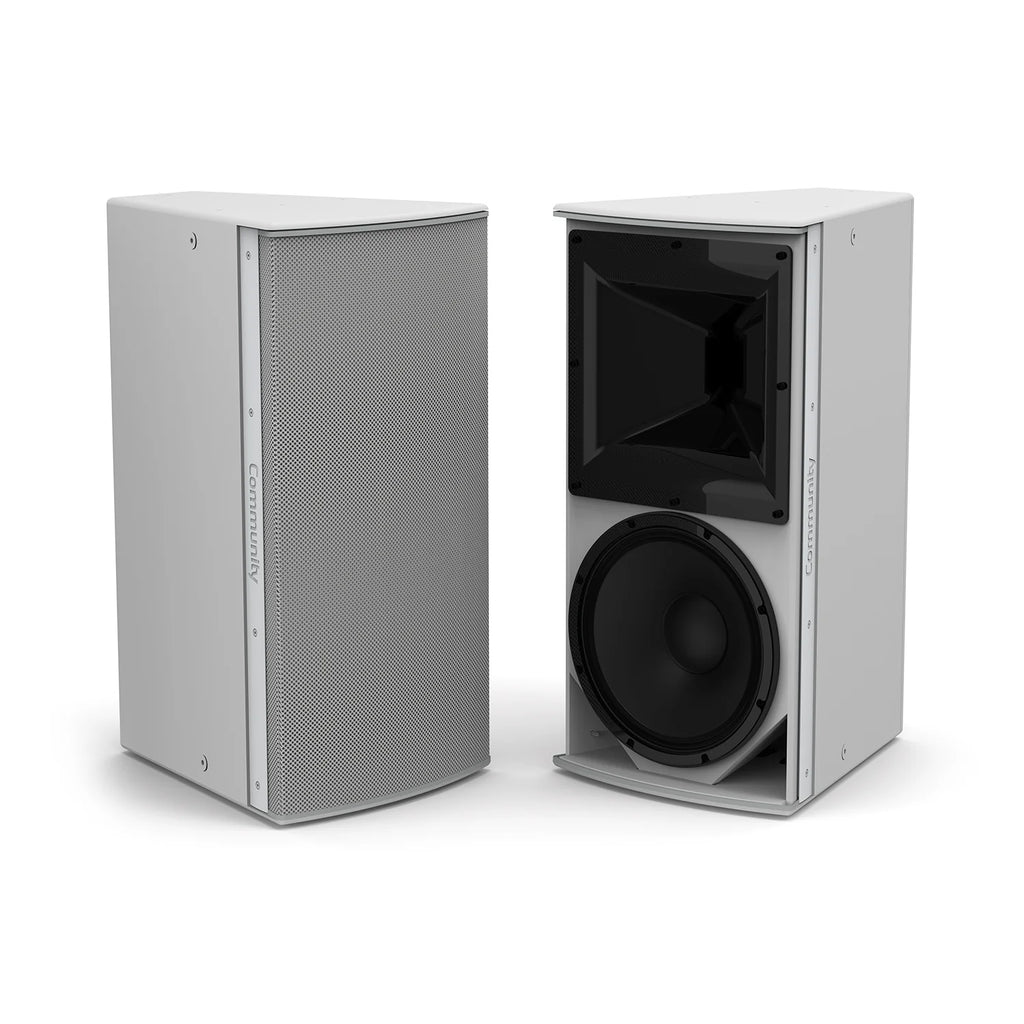

Engineered as part of the I SERIES Point Source 600, it combines flexible rigging options with consistent tonal performance, allowing integrators to build seamless systems with multiple coverage patterns. This model is also available in weather-resistant PolyGlas, making it adaptable for both indoor and outdoor use.

Key Features

• 600W continuous / 2400W peak power

• 90° x 40° rotatable waveguide for precise directional control

• 15" LF driver with extended low-end response down to 30 Hz

• Titanium/polyimide HF diaphragm with low compression phase plug

• Selectable passive or biamp operation

• Weather-resistant outdoor rating (IP55W)

• 15 M10 rigging points for flexible mounting solutions

Technical Specifications

Acoustic Performance

• Operating Range: 30 Hz – 18 kHz

• Nominal Sensitivity (@1W/1m):

  • Passive: 94 dB

  • LF: 95 dB

  • HF: 104 dB

• Max SPL (Peak/Cont.):

  • Passive: 128 dB / 122 dB

  • Equalized: 127 dB / 121 dB

Power & Impedance

• Impedance: 8 Ohms

• Power Handling:

  • Passive: 600W cont. / 2400W peak

  • LF (biamp): 500W cont. / 2000W peak

  • HF (biamp): 75W cont. / 300W peak

• Recommended Amplifier Range:

  • Passive: 600–1200W @ 8Ω

  • LF: 500–1000W @ 8Ω

  • HF: 75–150W @ 8Ω

Driver Details

• LF Driver: 1 × 15" (381 mm), 3" voice coil

• HF Driver: 1 × 1.4" exit, 3" titanium/polyimide diaphragm

Coverage & Waveguide

• Dispersion: 90° (H) × 40° (V), rotatable

• Waveguide Size: 13" (330 mm)

Cabinet & Connections

• Enclosure: Trapezoidal birch plywood, black finish

• Rigging: 15 × M10 threaded mounting points

• Inputs (Indoor): (2) 6-position screw terminal blocks

• Inputs (Outdoor): Sealed gland with 12 ft (3.6 m) 14 AWG cable

• Environment Rating: IP55W (IEC 60529), MIL-STD-810G

Dimensions & Weight

• Size: 30.80" (H) × 16.50" (W) × 20.07" (D)

• Weight: 79 lbs (35.8 kg)

Included in the Box

• (1) IP6-1152/94B Loudspeaker

• (1) Product documentation pack

Recommended For:
Worship venues, performing arts centers, stadiums, and any installation requiring precise coverage, intelligibility, and weather durability.
