Community Medium Power Dual 12 Inch Subwoofer IS6-212B

Community IS6-212B Dual 12-Inch Subwoofer (Medium Power)

Deep Bass. Directional Control. Compact Power.

The IS6-212B from Community’s I SERIES is a powerful dual 12-inch subwoofer built for modern performance spaces demanding deep low-frequency extension and intelligent system integration. With 1400W continuous power handling and individually isolated driver chambers, this versatile sub supports both single and dual amp operation, and enables advanced directional array techniques in a single compact enclosure.

Engineered with matched face widths and suspension points for seamless flown integration with I SERIES full-range models, the IS6-212B is equally at home in ground stack applications or concealed distributed systems. Whether it’s for a house of worship or a stadium, this subwoofer delivers exceptional performance and long-term reliability.

Key Features

• Dual 12-Inch Ferrite LF Drivers

• 1400W Continuous / 5600W Peak Power Handling

• Individual Air Volumes: Enables cardioid or end-fire arrays from one enclosure

• Rotatable Suspension Points: Simplifies flown array installations

• Weather-Resistant Option: Rated IP55W for outdoor use

Ideal For

• Churches and Houses of Worship

• Performing Arts Centers & Theaters

• Stadiums and Arenas

• Nightclubs and Music Venues

• Corporate AV Systems

• Theme Parks and Amusement Installations

Specifications

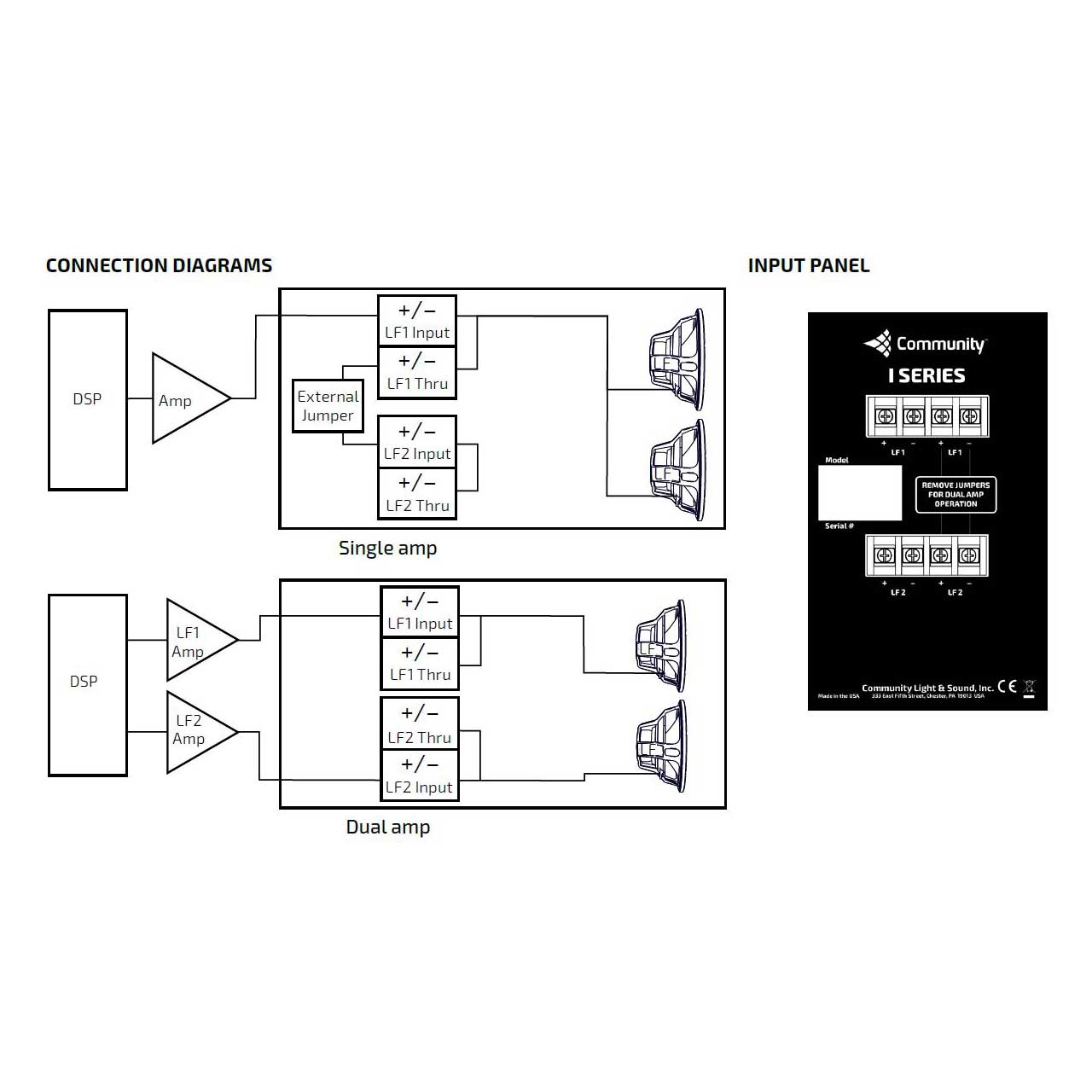

• Operating Mode: Single or Dual Amp

• Operating Range: 38 Hz – 150 Hz

• Transducers:

  • 2 x 12" (305mm) double-treated cones

  • 4" (102mm) inner/outer wound voice coils

  • Ferrite motors with FEA-optimized suspension

• Power Handling:

  • Single Amp: 1400W @ 4 ohms (5600W peak)

  • Dual Amp: 700W @ 8 ohms (each driver)

• Sensitivity:

  • Half Space: 103 dB @ 1W / 106 dB @ 2.83V

  • Whole Space: 97 dB @ 1W / 100 dB @ 2.83V

• Max SPL:

  • Half Space: 138 dB (peak), 126 dB (continuous)

  • Whole Space: 132 dB (peak), 126 dB (continuous)

• Equalized Sensitivity:

  • Half Space: 99 dB @ 1W / 102 dB @ 2.83V

  • Whole Space: 93 dB @ 1W / 96 dB @ 2.83V

• Equalized Max SPL:

  • Half Space: 136 dB (peak), 130 dB (continuous)

  • Whole Space: 130 dB (peak), 124 dB (continuous)

• Recommended Amplification:

  • Single Amp: 1400W – 2800W @ 4 ohms

  • Dual Amp: 700W – 1400W @ 8 ohms (each)

• Input Connection: (2) Screw terminal blocks (4-position)

• Rigging Points: 24 x M10 (23 on outdoor version)

• Weather Rating: IP55W, MIL-STD-810G

• Dimensions: 28.00" H x 14.50" W x 21.00" D (711 x 368 x 533 mm)

• Weight: 101 lbs (45.8 kg)
