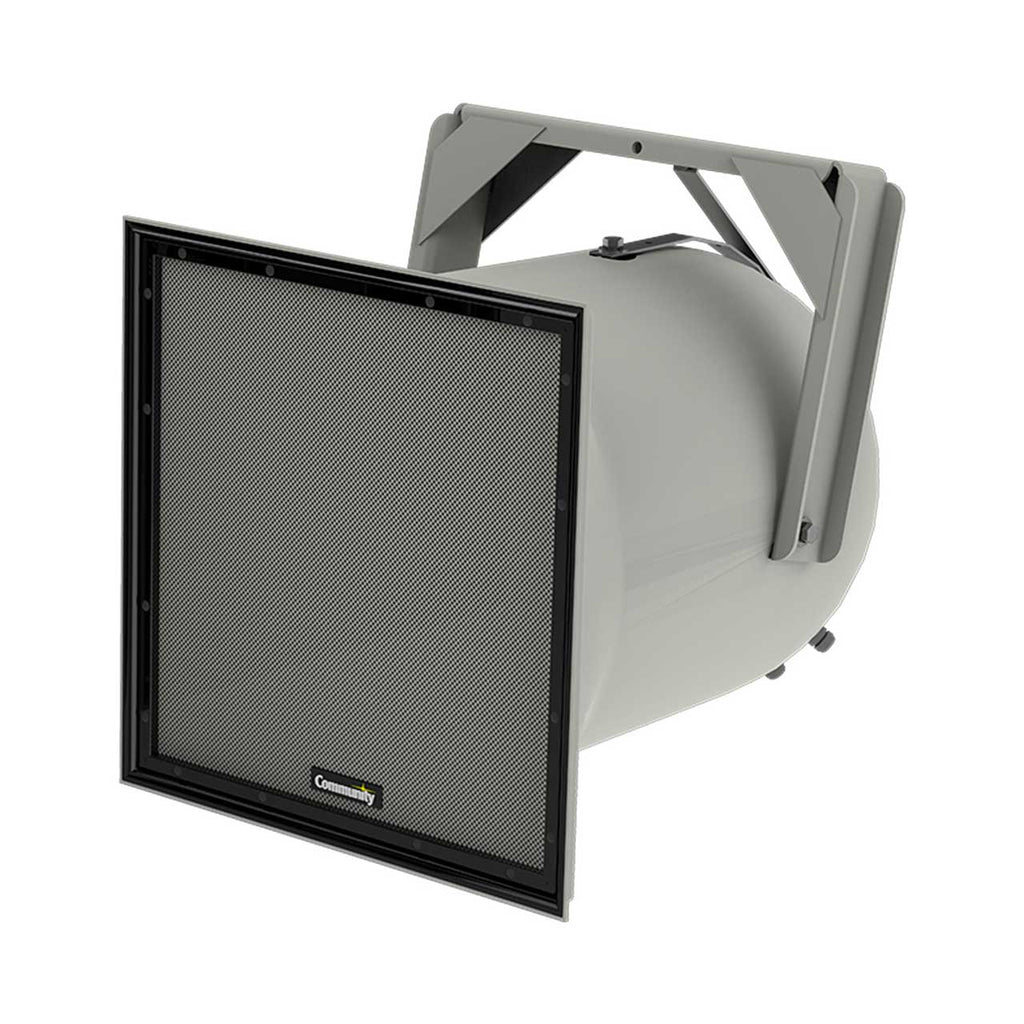

Community Pro R2-52Z Defined Coverage Weather Resistant Three Way Loudspeaker System
Precision Sound, Built for Demanding Spaces
The Community R2 Series is a high-performance, weather-resistant three-way loudspeaker engineered for precision coverage, extreme vocal projection, and long-range intelligibility. With dual 12" LF drivers, Community’s legendary M200 midrange compression driver, and a choice of symmetric or asymmetric coverage patterns, the R2-52Z is purpose-built to deliver powerful, full-range sound in challenging acoustic environments.
Key Features
-
Three-Way Horn-Loaded Design: Optimized for high-output music and voice projection
-
Legendary Vocal Clarity: M200 midrange driver paired with a deep, low-flare-rate horn for unmatched projection and intelligibility
-
Application-Specific Coverage: Choose from 5 available beamwidth patterns (symmetric and asymmetric) to match your environment
-
Weather-Ready Construction: Hand-laminated fiberglass enclosure, weather-treated components, and dual-layer steel grille
-
Easy Installation: Includes weather-resistant yoke mount for secure aiming and placement
-
EN54-24 Certified Models: Suitable for voice evacuation and critical paging systems
Ideal Applications
-
Stadiums and arenas
-
Theme parks and fairgrounds
-
Raceways and airfields
-
Convention centers and large-scale paging systems
-
Outdoor performance venues
-
Emergency announcement and evacuation systems
Specifications at a Glance (R2-52Z)
-
Operating Range: 70 Hz – 16 kHz
-
Sensitivity: 106 dB SPL (1W/1m)
-
Power Handling: 400W continuous @ 4 ohms
-
Max Output: 132 dB continuous / 138 dB peak
-
Transducers:
-
LF: 2 x 12" weather-treated cone
-
MF: 2 x M200 compression drivers
-
HF: 1 x 1" exit titanium diaphragm
-
Nominal Beamwidth Options (HxV):
-
52: 50° x 20°
-
77: 70° x 70°
-
94: 90° x 40°
-
474: 40–70° x 40°
-
694: 60–90° x 40°
-
Enclosure: Hand-laminated multilayer fiberglass
-
Grille: Dual-layer, powder-coated steel
-
Finish: Light grey gelcoat (paintable)
-
Dimensions: 24.8" H x 24.8" W x 30.8" D (629 x 629 x 781 mm)
-
Weight: Approx. 122 lbs
What’s Included
-
1x Community R2-52Z Loudspeaker
-
1x Weather-Resistant Mounting Yoke
-
Pre-installed rigging hardware
-
Installation/Operation Manual
Engineered for long-throw performance. Tuned for total intelligibility.
The R2 Series is the trusted solution for large-scale outdoor and indoor sound reinforcement when every word—and every note—must be heard with absolute clarity.
