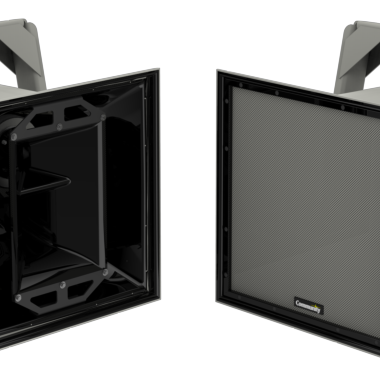

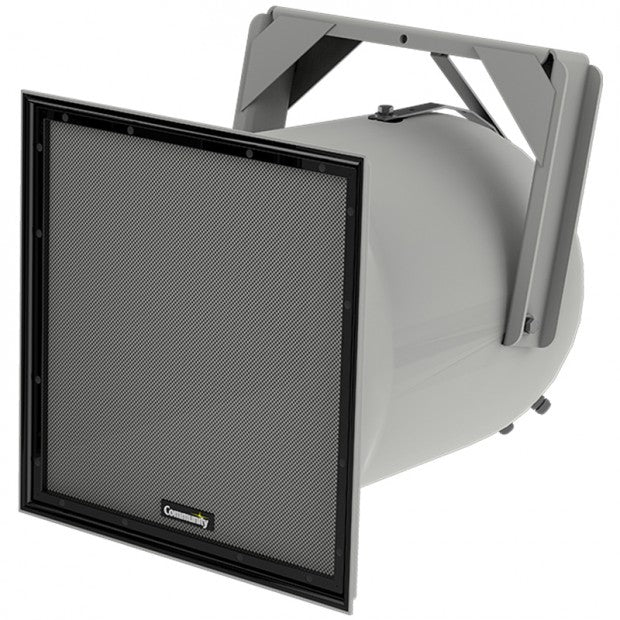

Community Pro R2-52MAX Full-Range 3-way High Output Full-Range 50 x 20 Weather-Resistant Loudspeaker
Premium Stadium-Grade Performance
The R2-52MAX is a high-output, three-way loudspeaker system engineered for maximum performance in stadiums, arenas, and other demanding outdoor environments. With enhanced musicality, superb speech intelligibility, and extreme weather durability, it’s built to deliver premium full-range sound with no compromises—indoors or out.
Key Features
-
Biamp-Optimized Performance: Operates in a biamp format with passive MF/HF section for precise crossover alignment and superior sonic integrity
-
Extreme Output & Clarity: Up to 135 dB peak SPL with flat, extended frequency response (71 Hz to 19.5 kHz)
-
Advanced Driver Design:
-
Dual high-power 12" LF drivers with aluminum demodulation rings for low distortion
-
Upgraded dual M200-series 2" exit compression MF drivers for +3 dB output and ultra-low distortion
-
High-efficiency 1" HF compression driver for extended high-frequency clarity and headroom
-
Coaxial Alignment: Signal-aligned MF/HF horn is mounted coaxially in front of the LF section for optimal time alignment and voice projection
Ideal Applications
-
Modern sports stadiums and arenas
-
Outdoor performance venues
-
Theme parks and fairgrounds
-
Racetracks, airshows, and large event facilities
-
High-output paging and music reinforcement in extreme environments
Built for Harsh Environments
-
Weatherproof enclosure for continuous direct outdoor exposure
-
Rated IP55 per IEC 60529
-
Conforms to MIL-STD-810G for durability in extreme conditions
-
Zinc-rich epoxy dual-layer powder-coated steel bracket with aluminum aiming straps for precise installation
Specifications at a Glance
-
Operating Mode: Biamp with DSP (passive MF/HF)
-
Frequency Response: 71 Hz – 19.5 kHz
-
Beamwidth: 50° x 20° (H x V)
-
Peak SPL: 135 dB
-
Input Connections: (2) 12 ft (3.6 m) 16-2 SJOW cables
-
Mounting: (5) 1/2-13 threaded rigging points
-
Environmental: IP55 / MIL-STD-810G
-
Dimensions: 24.75" H x 24.75" W x 30.75" D (629 x 629 x 781 mm)
-
Weight: 122 lbs (55.3 kg)
What’s Included
-
1x R2-52MAX Full-Range Stadium Loudspeaker
-
Mounting Bracket with Dual Aluminum Aiming Straps
-
Installation/Operation Manual
-
Pre-attached Input Cables (2 x 12 ft SJOW)
-
Pre-installed Rigging Hardware
Engineered for intensity. Built for endurance. Tuned for clarity.
The R2-52MAX delivers uncompromising performance and reliability for today’s most demanding stadium and arena installations.
