Community Pro Loudspeakers Full-Range 3-Way Dual 12 Inch 60 x 60 All-Weather R2-77Z

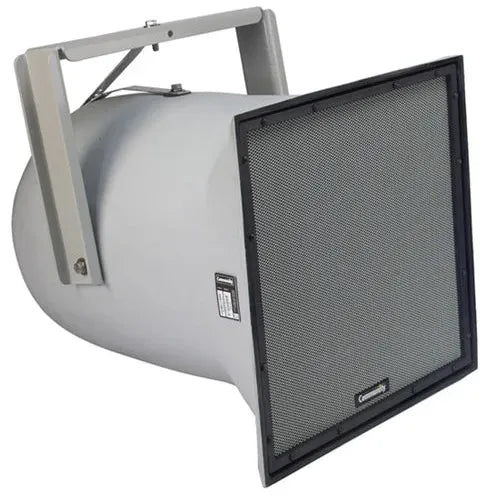

Community Pro Loudspeakers R2-77Z Full-Range 3-Way Dual 12 Inch 60 x 60 All-Weather

Engineered for Projection. Built for the Elements.

The Community Pro R2-77Z delivers powerful, full-range sound for large outdoor and indoor spaces. Designed with an all-horn-loaded triaxial system, it excels in long-throw applications where vocal clarity, speech intelligibility, and high-fidelity music matter most. With a weather-sealed double-wall fiberglass enclosure and a precision-engineered waveguide system, the R2-77Z offers rugged durability with remarkable acoustic performance.

Key Features

• High-Output Triaxial Horn Design: Exceptional long-distance vocal projection and musical clarity

• True All-Weather Construction: 100% weather-resistant, fiberglass double-wall enclosure with IP55 rating

• Consistent 60° x 60° Coverage: Uniform dispersion ideal for arenas, stadiums, and open-air venues

• Passive Operation: Includes high-quality crossover and dynamic driver protection

• Included Yoke Mount: Weather-resistant yoke and aluminum aiming straps for secure, adjustable installation

Ideal Applications

• Stadiums and arenas

• Theme parks and fairgrounds

• Racetracks and airfields

• Outdoor paging and emergency systems

• Convention centers and performance venues

Specifications at a Glance

• Operating Mode: Passive

• Frequency Range: 70 Hz – 16.5 kHz

• Nominal Beamwidth: 60° x 60°

• Power Handling: 400W continuous @ 4 ohms (1600W peak)

• Sensitivity: 103 dB @ 1W / 106 dB @ 2.83V

• Max SPL: 135 dB peak / 129 dB continuous

• Transducers:

  • LF: Dual 12" weather-treated, ferrofluid-cooled

  • MF: M200 2" exit driver, non-metallic diaphragm

  • HF: 1" titanium diaphragm compression driver

• Input Connection: 12 ft (3.6 m) SJOW #16 cable

• Mounting Points: (5) 1/2"-13 threaded rigging points

• Environmental Rating: IP55 (IEC 60529), MIL-STD-810G

• Enclosure: Hand-laminated fiberglass with zinc-rich epoxy dual-layer powder-coated yoke

• Dimensions: 24.75" H x 24.75" W x 30.75" D (629 x 629 x 781 mm)

• Weight: 73 lbs (33.1 kg); 96 lbs (43.5 kg) with yoke

What’s Included

• 1x R2-77Z Full-Range Loudspeaker

• 1x Weather-Resistant Mounting Yoke with Aiming Straps

• Pre-attached Input Cable

• Installation/Operation Manual

• Pre-installed Mounting Hardware

High-performance projection. Rugged all-weather build.
The R2-77Z is your trusted solution for long-range audio clarity in the most demanding environments.
