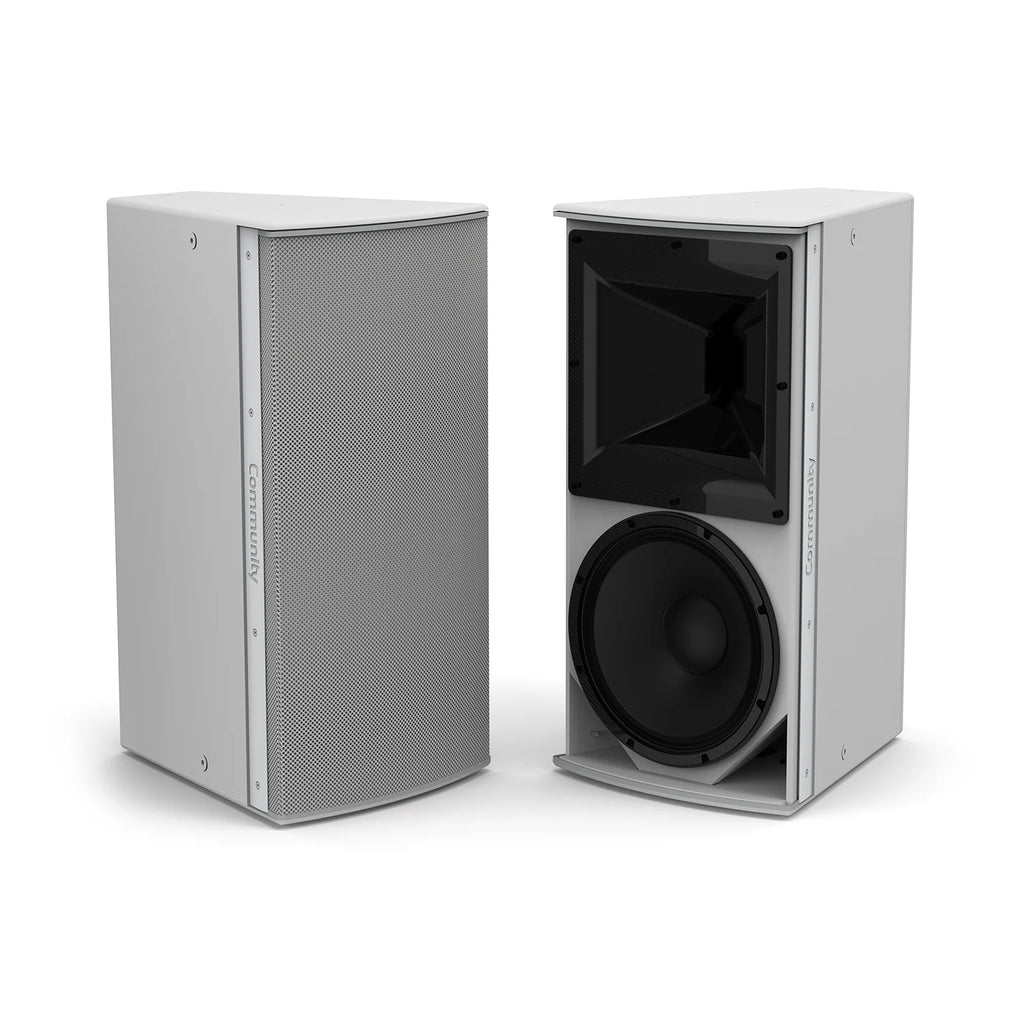

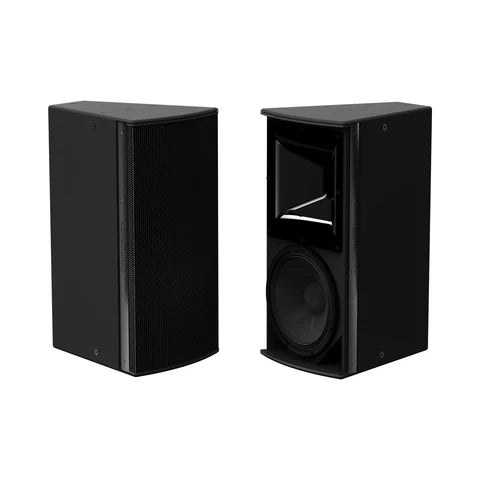

Community Medium Power 15-inch Two-Way Installation Loudspeaker - 90x90 IP6-1152/99B

Community IP6-1152/99B – 15" Two-Way Installation Loudspeaker (600W, 90° x 90° Coverage)

The Community IP6-1152/99B delivers powerful full-range performance and consistent coverage with a wide 90° x 90° rotatable waveguide, making it ideal for installations where even sound distribution is critical. This 15-inch, medium-power loudspeaker is part of the I SERIES Point Source 600 family—built for modern performance venues requiring clarity, headroom, and versatility in both indoor and outdoor environments.

Featuring a 3-inch voice coil LF driver and a hybrid titanium/polyimide HF compression driver, the IP6-1152/99B ensures high output with low distortion. The precision-tuned waveguide, advanced ferrite motor structure, and biamp/passive switchable configuration offer unmatched system flexibility and fidelity in a compact trapezoidal enclosure.

Key Features

• 600W continuous / 2400W peak power handling

• Wide 90° x 90° constant-directivity coverage for uniform horizontal and vertical dispersion

• 15" long-excursion LF driver with 3" voice coil for extended bass response

• Hybrid titanium/polyimide HF diaphragm for low distortion and smooth highs

• Rotatable 13" waveguide and voiced crossovers for consistent off-axis performance

• Single amp or biamp selectable

• Weather-resistant IP55W rating for outdoor reliability

• Low-profile modular rigging options for simplified and elegant installation

Technical Specifications

Performance

• Operating Range: 28 Hz – 19 kHz

• Sensitivity (1W/1m):

  • Passive: 95 dB

  • LF: 96 dB

  • HF: 105 dB

• Max SPL:

  • Peak: 128 dB (LF), 129 dB (HF)

  • Continuous: 122 dB (LF), 123 dB (HF)

  • Equalized System: 127 dB peak / 121 dB continuous

Power Handling

• Impedance: 8 Ohms

• Power (Continuous/Peak):

  • Passive: 600W / 2400W

  • LF (Biamp): 500W / 2000W

  • HF (Biamp): 75W / 300W

• Recommended Amplifiers:

  • Passive: 600–1200W @ 8Ω

  • LF: 500–1000W @ 8Ω

  • HF: 75–150W @ 8Ω

Drivers & Components

• LF Driver: 1 × 15" (381 mm), 3" voice coil

• HF Driver: 1 × 1.4" exit, 3" hybrid diaphragm

• Waveguide: 13" rotatable, constant-directivity

Build & Connections

• Enclosure: Trapezoidal birch plywood, black finish

• Mounting Points: 15 × M10 threaded inserts

• Input:

  • Indoor: (2) 6-position screw terminal blocks

  • Outdoor: Sealed gland nut with 12 ft (3.6 m) 14 Ga. SJOW cable

• Environment Rating: IP55W (IEC 60529), MIL-STD-810G compliant

Physical

• Dimensions: 30.80" (H) × 16.50" (W) × 20.07" (D)

• Weight: 79 lbs (35.8 kg)

In the Box

• (1) Community IP6-1152/99B Loudspeaker

• (1) Product documentation kit

Best For:
Houses of worship, arenas, theaters, auditoriums, and distributed audio systems requiring symmetrical, wide-area sound coverage.
