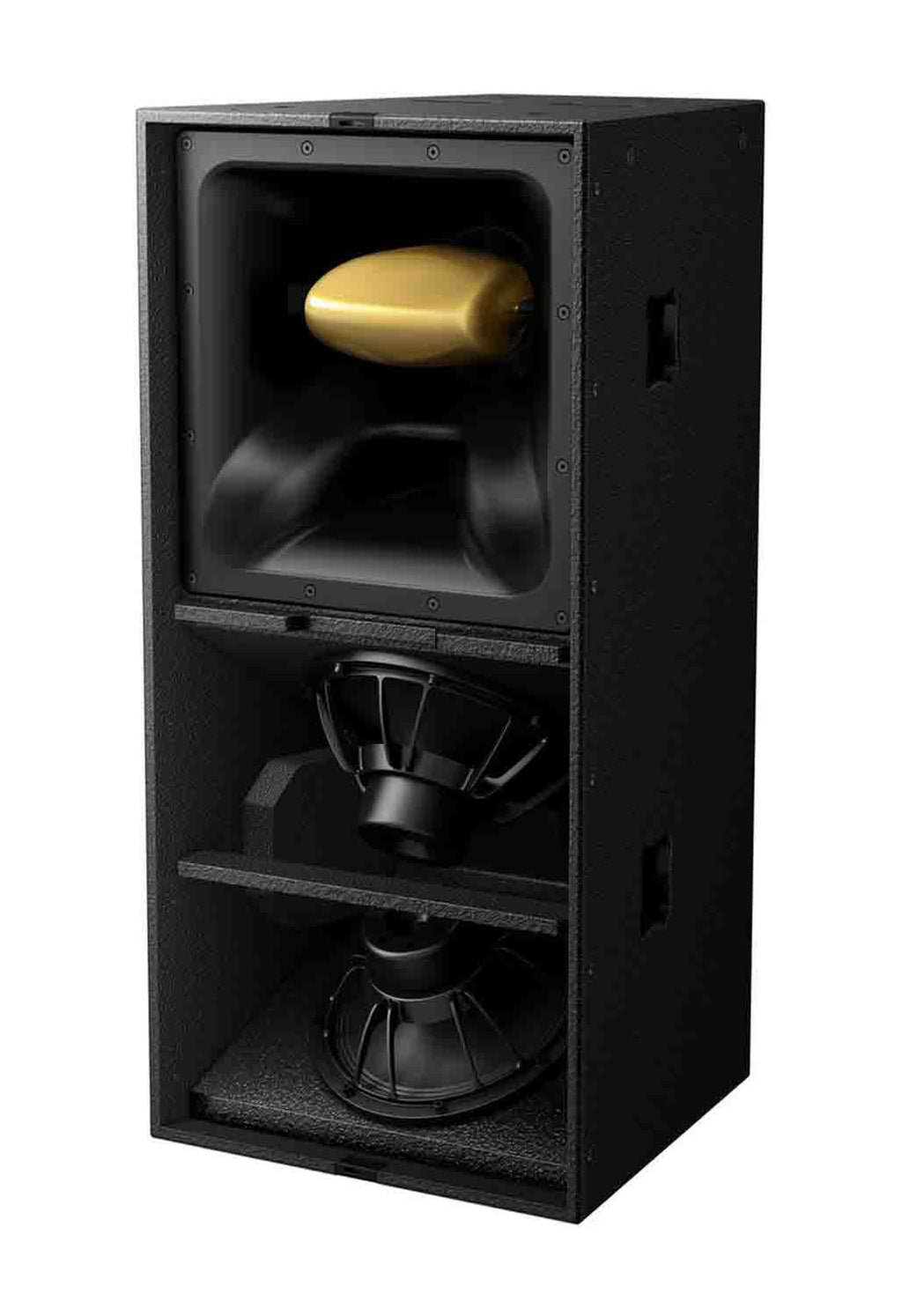

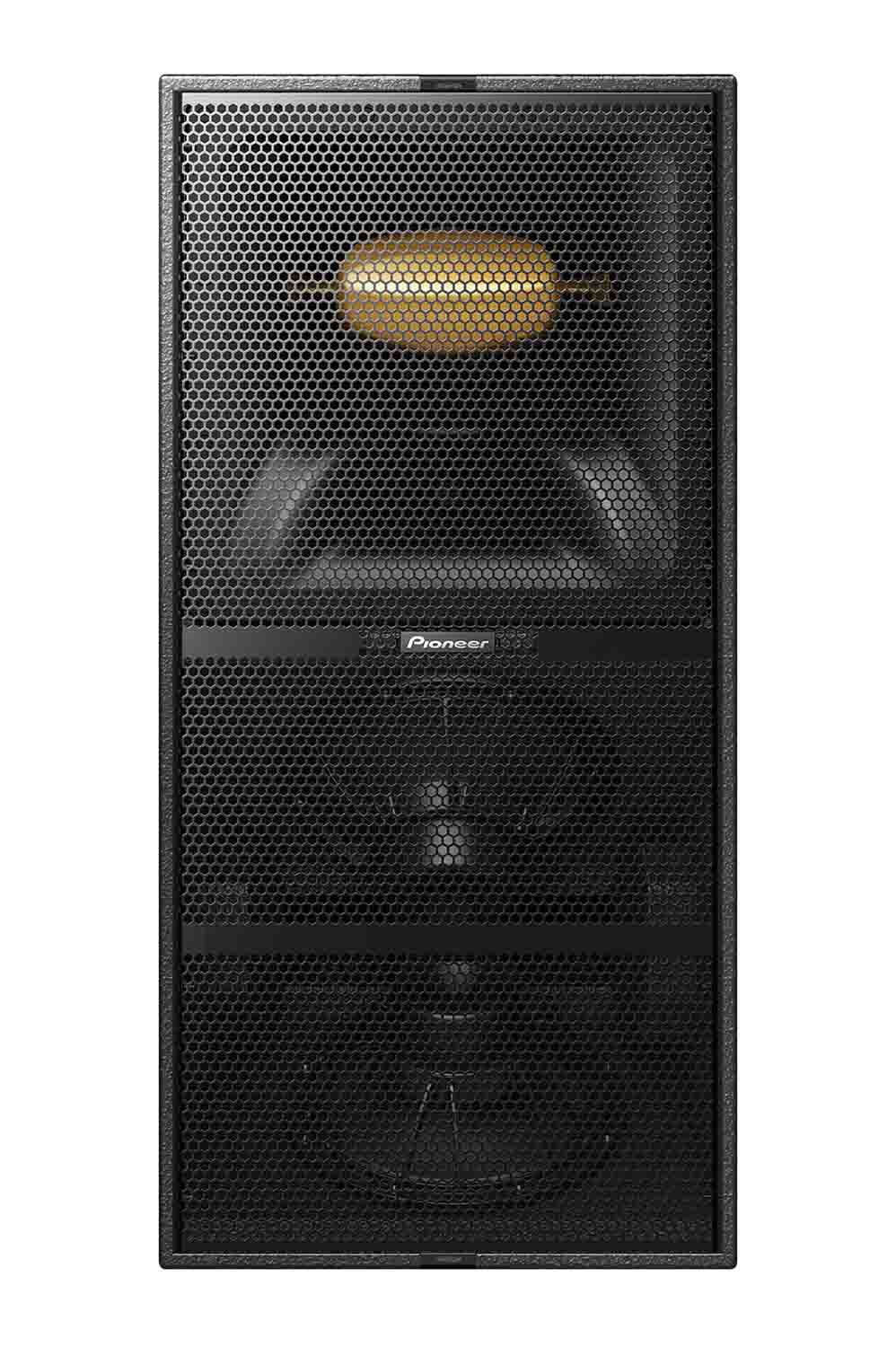

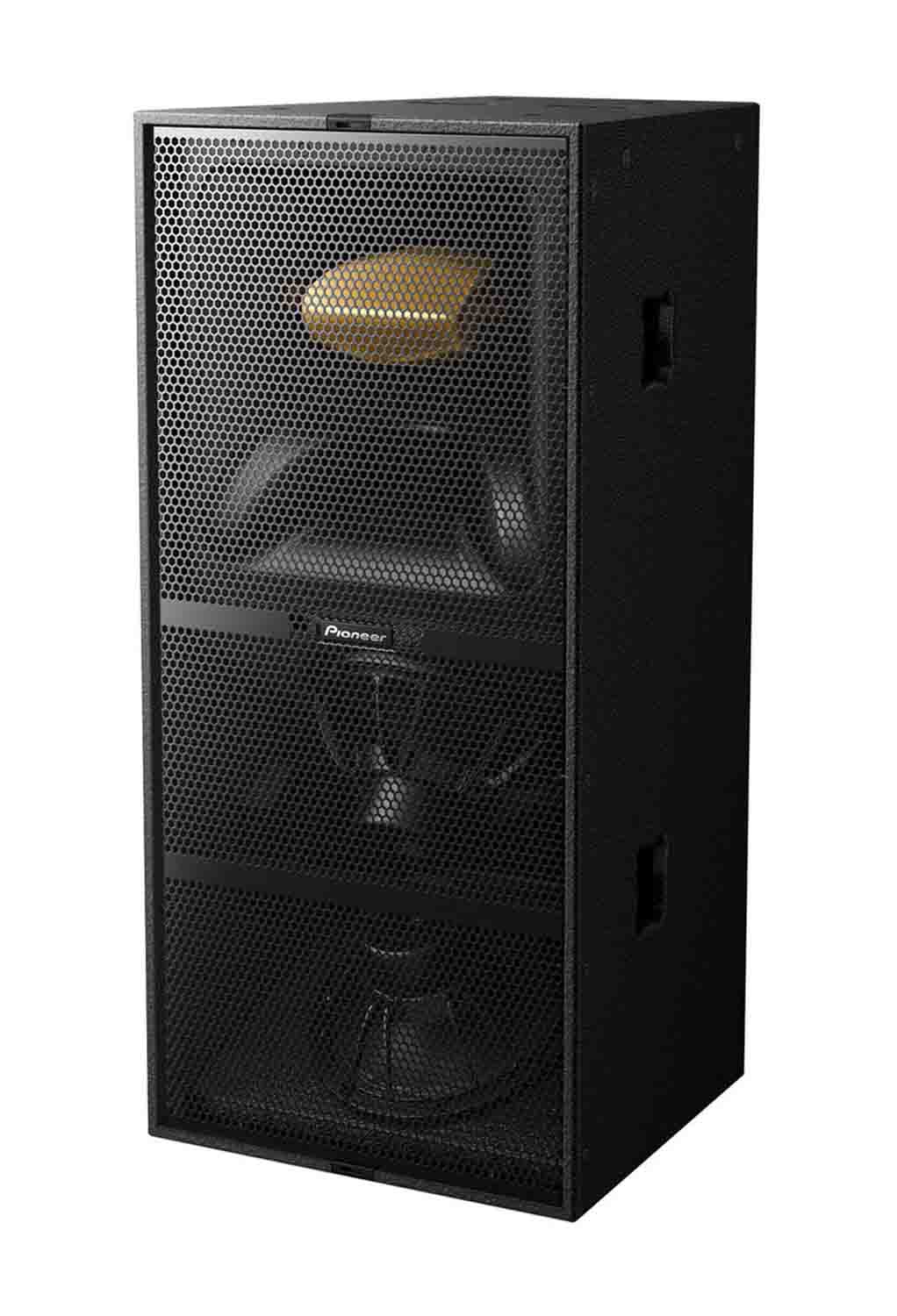

The Pioneer XY-3B is a Dual 12” Three-Way Hybrid Loaded Bi-Amp Loudspeaker. In the XY-3B, an 8-inch cone driver delivers clean and precise mid-range frequencies using Pioneer Pro Audio’s X-Phase system. A 1-inch compression driver produces crystal-clear HF which, thanks to the moulded Bi-horn, seamlessly blends with the mids. Two 12-inch drivers create tight, chest-pumping low mid.
Moulded Bi-Horn

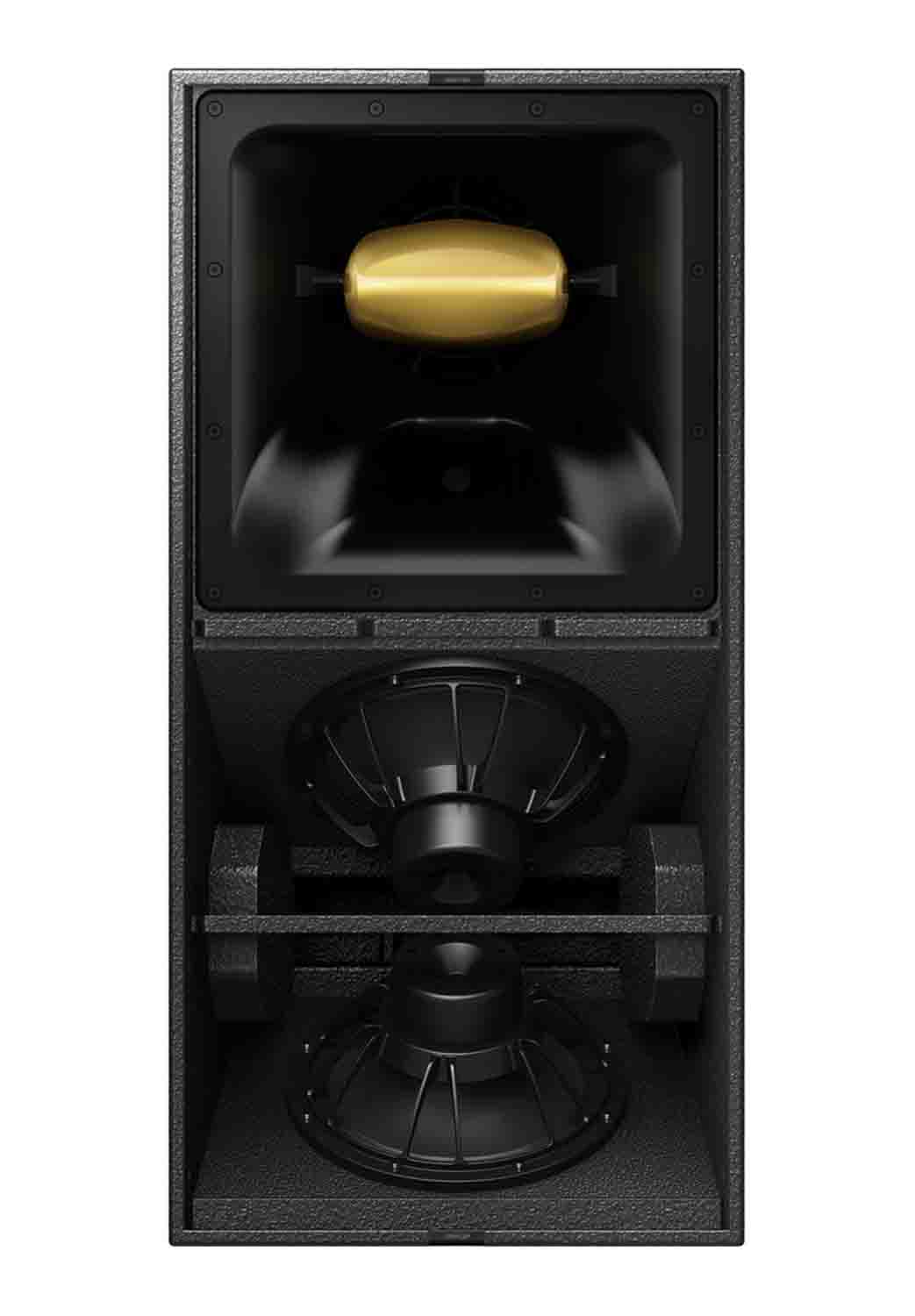

The 8-inch mid-range driver and the 1-inch compression driver are attached to the integrated waveguide with their depths perfectly aligned to minimise the difference of physical distance and reduce cancellation around the crossover frequency. This unique Bi-horn combines mid and high frequencies in a deep position inside the waveguide, improving the blend of the sounds compared to the performance of a conventional separated horn structure. The waveguide’s curved shape perfectly controls dispersion at 50 degrees horizontal and 35 degrees vertical, providing natural sound with high SPL in the targeted area while reducing the sound pressure outside that area.
X-Phase System with Gold X-Phase Plug
Driver cone cancellation is minimised thanks to Pioneer Pro Audio’s X-Phase system. The convex shape forces sound waves into small slits which are arranged in a fan shape, allowing all sound waves to exit in perfect phase aliment. The sound waves are forced over the top and bottom of the X-phase plug, producing higher SPL and greater sound projection over long distances.
Hybrid Low-Mid Section
A hybrid dual 12-inch chamber in the low-mid section allows the drivers to produce tight notes. The LF drivers are also coated with a water-resistant finish on both sides, so you can use the XY-3 speakers outdoors. Plus, the added stiffness of this treatment allows the drivers to deliver a natural tightness rather than using thicker speaker cone material which would add weight and slow down the speed of the cones.
Rigging and Tour Ready

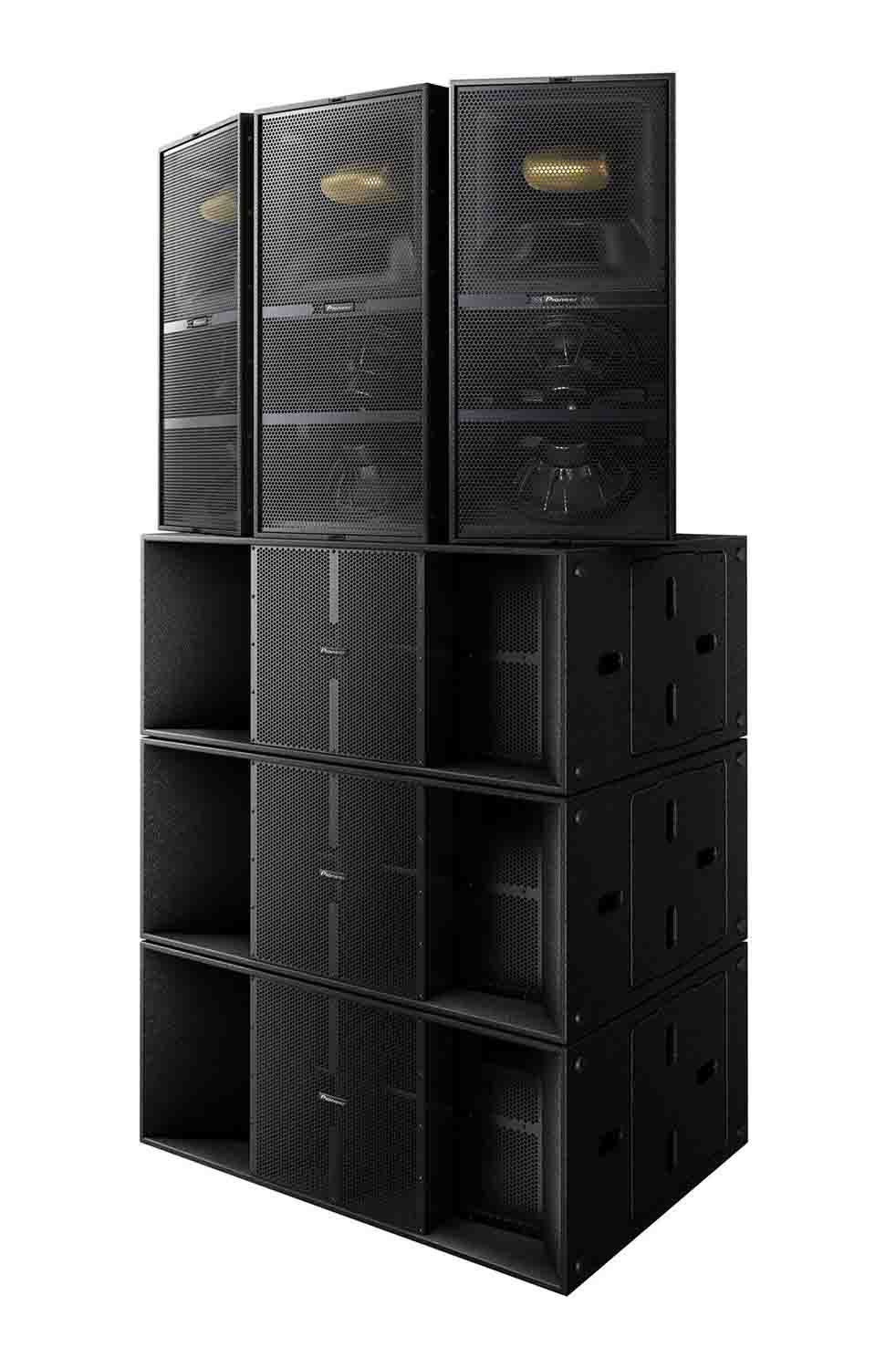

Rigging, Flying hardware options are available, along with ground stacking configurations. Tour ready, Every detail of the XY-3 was designed to make it the perfect speaker to take on the road. You can load the speakers into trucks with the minimal amount of space lost, and they can be stacked two-high and four-wide when used with the XY-3-wheel board.
Product Specifications
Category
Specification
Value
Hardware
Enclosure Type
3WAY Bi-amp loudspeaker
Enclosure
15 mm birch plywood
Loudspeaker Data
Transformer Taps
LF (Low-Frequency) Loudspeaker
12-inch neodymium cone driver x 2
MF (Mid-Frequency) Loudspeaker
8-inch neodymium cone driver
HF (High-Frequency) Loudspeaker
1-inch exit neodymium compression driver
Power Handling
- LF Power Handling
1200 W (RMS), 2400 W (Program)
- MHF Power Handling
200 W (RMS), 400 W (Program)
Power Handling AES
- LF Power Handling AES
133 dB (cont.), 139 dB (peak)
- MHF Power Handling AES
130 dB (cont.), 136 dB (peak)
Dispersion
speakON NL4 x 2
System Data
Frequency Response
55 Hz to 17 kHz
Sensitivity (1W/1m)
- LF Sensitivity
102 dB
- MHF Sensitivity
107 dB
Nominal Impedance
- LF Nominal Impedance
4Ω
- MHF Nominal Impedance
8Ω
Dimensions (W x H x D)
20.86 × 42.51 × 21.25 inches
Weight
57.6 kg (126.98 lbs)
