Powerful Column Array Performance in a Slim Profile
The RCF NXL 24-A MK2 is a high-powered active column array speaker, engineered to deliver full-range, distortion-free sound for live performance, portable PA, or installed sound reinforcement. Featuring four high-output 6" woofers and a precision 2.5" compression driver mounted on a 100° x 30° constant directivity waveguide, the NXL 24-A MK2 produces an impressively wide and controlled sound field — with a maximum SPL of 131 dB and frequency response down to 65 Hz.
Driven by a 1400W peak (700W RMS) Class D amplifier and controlled by onboard DSP, the NXL 24-A offers selectable EQ modes optimized for standalone or paired use.
Key Features:
1400W Class-D Amplification (700W RMS)
131 dB Max SPL Output
65 Hz – 20,000 Hz Frequency Response

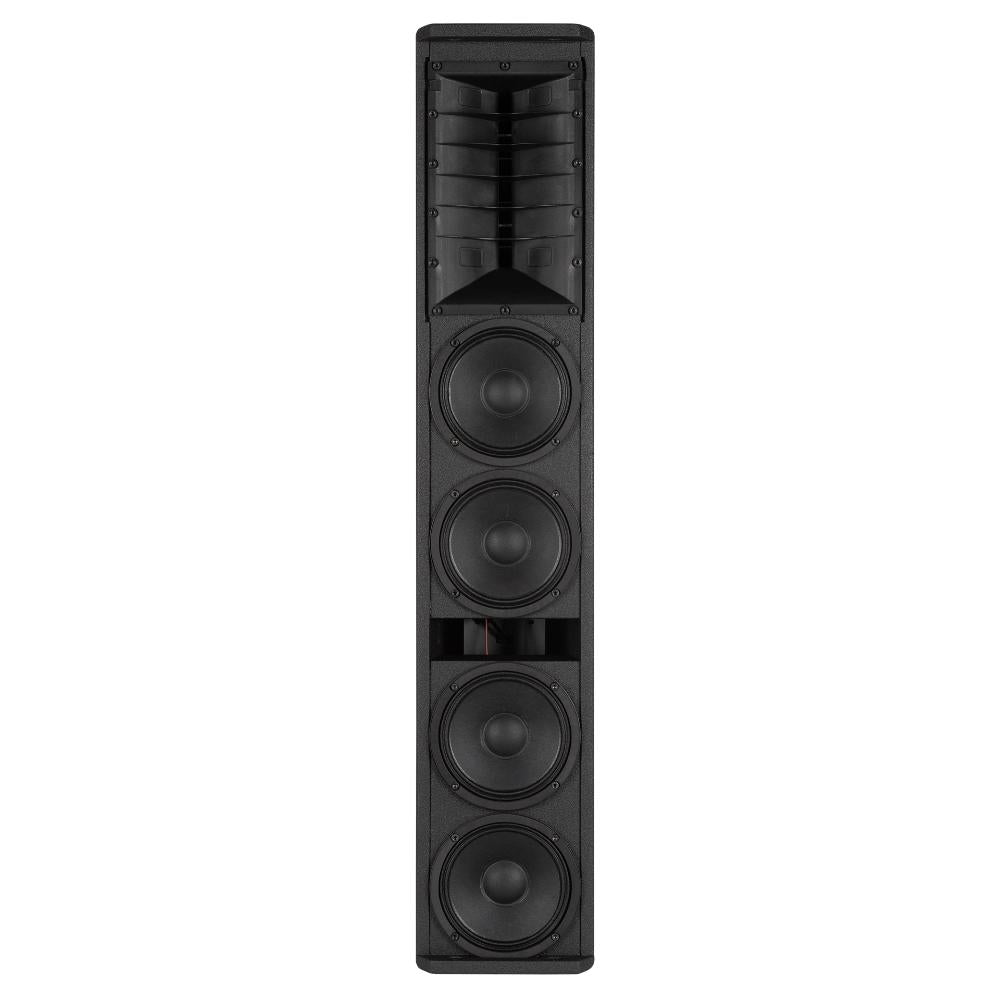

4 x 6" Woofers + 2.5" Compression Driver
100° x 30° Dispersion Pattern for Focused Coverage
Integrated DSP with EQ Presets
Pole Mount Socket & Rigging Hardware for Easy Installation
Birch Plywood Cabinet with Steel Grille
Ideal Applications:
Portable Sound Systems
Clubs and Live Music Venues
Corporate AV & Events
Houses of Worship
Fixed Installations with High SPL Needs
Specifications:
Acoustical Specs
Frequency Response: 65 Hz – 20,000 Hz
Max SPL @ 1m: 131 dB
Horizontal Coverage: 100°
Vertical Coverage: 30°
Transducers
HF Driver: 1.4" exit, 2.5" voice coil
LF Drivers: 4 x 6" woofers, 1.5" voice coil
Input/Output
Input Type: Balanced/Unbalanced
Input Connectors: XLR, 1/4" Jack
Output Connector: XLR
Input Sensitivity: -2 dBu / +4 dBu
Processor & Controls
Crossover Frequency: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ Shape, Mic/Line Selector
Power Amplifier
Total Power: 1400W Peak / 700W RMS
LF: 1000W Peak / 500W RMS
Cooling: Convection
Power Connection: PowerCON In/Out
Build & Mounting
Cabinet Material: Baltic Birch Plywood
Grille: Steel
Finish: Black
Handles: 2 Side Handles
Mounting: 4 x MB Points, 4 x Quick Lock
Pole Mount: Yes
Size & Weight
Height: 41.57"
Width: 7.91"
Depth: 10.79"
Weight: 58.2 lbs
Shipping Dimensions
Height: 12.44"
Width: 45.47"
Depth: 8.74"
Shipping Weight: 63.93 lbs
What's Included:
1x RCF NXL 24-A MK2 Active Column Array Speaker
Powercon Cable
Bring high-powered clarity and controlled dispersion to any venue with the compact, rugged, and acoustically advanced RCF NXL 24-A MK2.
