RCF Active 2-Way 15-Inch Powered Speaker w/ 4-Inch Neo HF Compression Driver ART-745A-MK5

RCF ART-745A-MK5 Active 2-Way 15-Inch Powered Speaker w/ 4-Inch Neo HF Compression Driver

Premium Power. Unmatched Clarity. Built for the Stage.

The RCF ART 745-A MK5 is the flagship in the ART 7 series, engineered to deliver unmatched vocal clarity and dynamic audio performance. With a 4.0” voice coil titanium compression driver, a 15” neodymium woofer, and a 1400W Class-D amplifier, this speaker is designed for live sound professionals who demand top-tier reliability and sonic precision.

Key Features:

• 1400W Peak Power (1000W LF + 400W HF)

• 133 dB Max SPL for powerful, distortion-free output

• 4” Titanium Neodymium Compression Driver – Exceptional vocal clarity

• 15” Neodymium Woofer – Tight, responsive low-end performance

• XBOOST Bass Enhancer – Deep, controlled low-frequency extension

• 90° x 60° Constant Directivity Horn – Wide, even coverage

• FiRPHASE DSP Technology – Linear phase response for natural sound

• Rugged Polypropylene Composite Cabinet – Vibration-resistant at high volumes

• Mic/Line Input with Volume and Boost Controls

• Ergonomic Design with Multiple Handles and Pole Mount Base

Superior Audio Technology:

• Class-D Amplification: Lightweight, efficient, and built for fast transient response

• Advanced DSP: Onboard processing manages crossover, EQ, limiter, and speaker protection

• Low Crossover Point (650 Hz): Optimizes impulse response and midrange detail

• No Fan, No Noise: Convection-cooled for silent operation even at peak power

Perfect For:

• Live Sound Reinforcement

• Touring DJs & Bands

• Houses of Worship

• Rental & Event Production

• Floor Monitor or Main PA Use

Specifications:

Acoustic Performance

• Frequency Response: 45 Hz – 20,000 Hz

• Max SPL: 133 dB

• Coverage: 90° H x 60° V

Transducers

• High Frequency: 1 x 1.0" exit, 4.0" v.c. Titanium Neodymium Compression Driver

• Low Frequency: 15" Neodymium Woofer, 3.5" v.c.

Amplification

• Total Output: 1400W Peak (1000W LF / 400W HF)

• Input Sensitivity: -2 dBu / +4 dBu

• Mic Input Sensitivity: -32 dBu

• Input/Output: XLR, 1/4" Jack, XLR Out

DSP & Controls

• Crossover: 650 Hz

• Protection: Thermal, RMS, Soft Limiter

• Controls: Volume, Boost, Mic/Line Switch

Build

• Cabinet Material: Polypropylene Composite

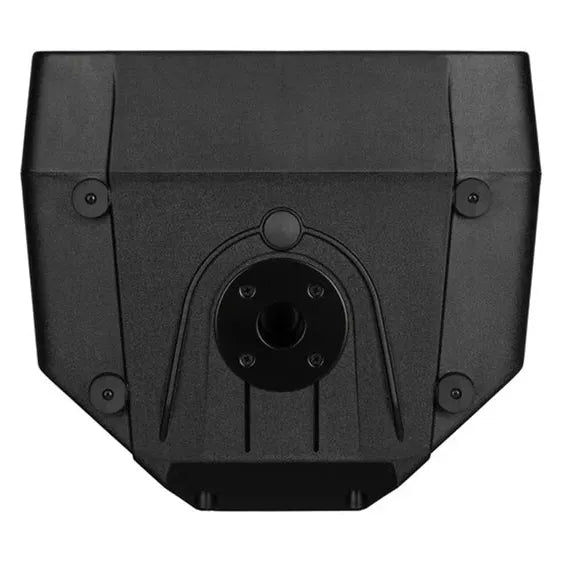

• Mounting: Pole mount, M10 rigging points

• Handles: 1 Top, 2 Sides

• Color: Black

Dimensions & Weight

• H: 27.87" / 708 mm

• W: 17.2" / 437 mm

• D: 15.31" / 389 mm

• Weight: 47.18 lbs / 21.4 kg

In the Box

• 1x ART 745-A MK5 Speaker

• 1x VDE Power Cord

Take your sound to the next level with the ART 745-A MK5 – precision-engineered for clarity, power, and performance.
