RCF Active Line Array Loudspeaker HDL 10-A

RCF HDL 10-A Active Line Array Loudspeaker

Compact Size, Touring-Grade Power

The RCF HDL 10-A is a compact yet powerful active 2-way line array module, engineered for both live sound reinforcement and fixed installations. Powered by a 1400W peak Class-D amplifier and equipped with a DSP-controlled input section, this speaker delivers professional-grade audio performance with fast, simple setup. Whether you're building a touring rig or a high-output venue installation, the HDL 10-A offers line array performance in a space-saving, flyable design.

Pair it with the HDL 15-AS flyable subwoofer for a complete full-range array system.

Key Features:

• 1400W Peak / 700W RMS Class-D Amplification

• 133 dB Max SPL Output

• 65 Hz – 20,000 Hz Frequency Response

• 100° x 15° Coverage Pattern

• 2 x 8" Woofers + 2" Compression Driver

• Onboard DSP with Selectable Presets

• Tour-Grade Rigging Hardware for Fast Deployment

• Compact Composite Cabinet with Internal Reinforcement

Ideal For:

• Live Sound Touring Systems

• Mobile DJ Arrays

• Fixed Venue Installations

• Houses of Worship

• Corporate AV & Events

• Small to Mid-Sized Performance Stages

Specifications:

Acoustical Performance

• Frequency Response: 65 Hz – 20,000 Hz

• Max SPL @ 1m: 133 dB

• Horizontal Coverage: 100°

• Vertical Coverage: 15°

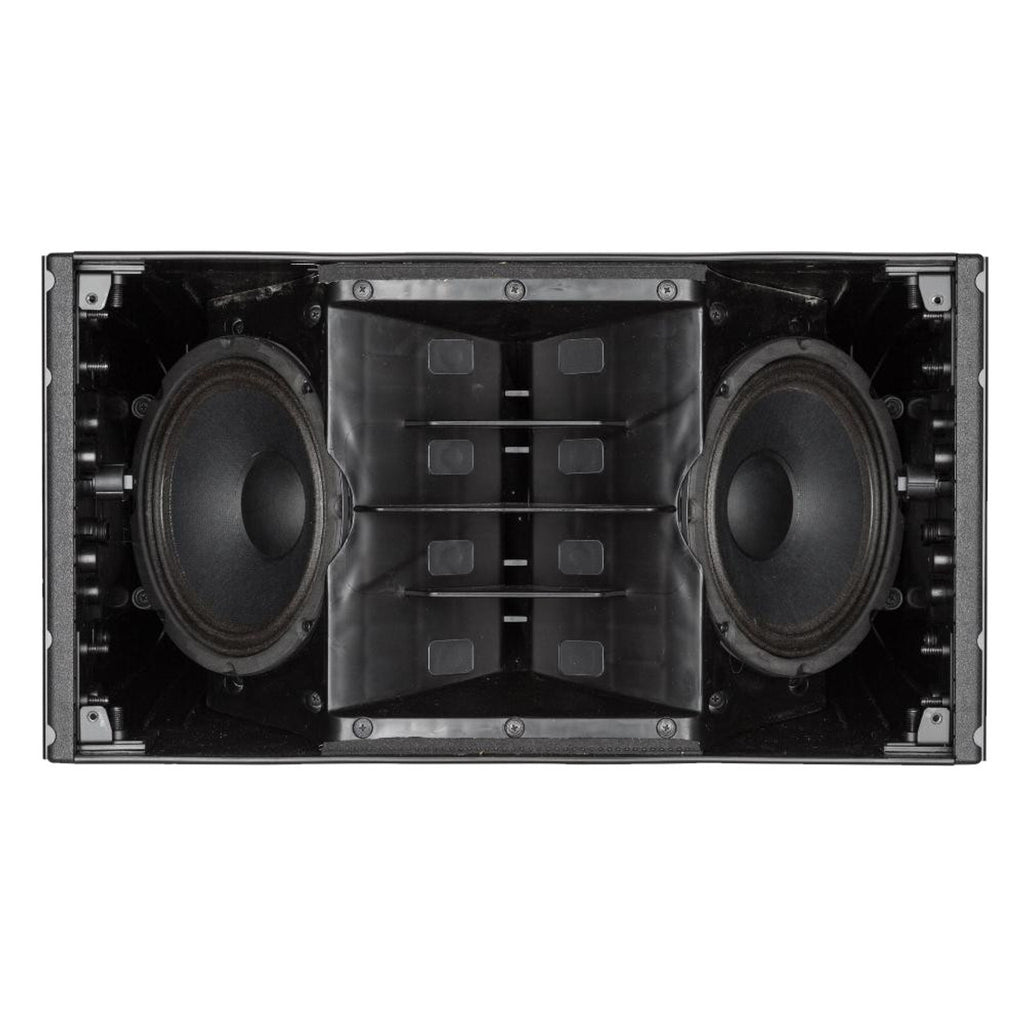

Transducers

• HF Driver: 2" exit, 2.5" voice coil compression driver

• LF Drivers: 2 x 8" woofers, 2" voice coils

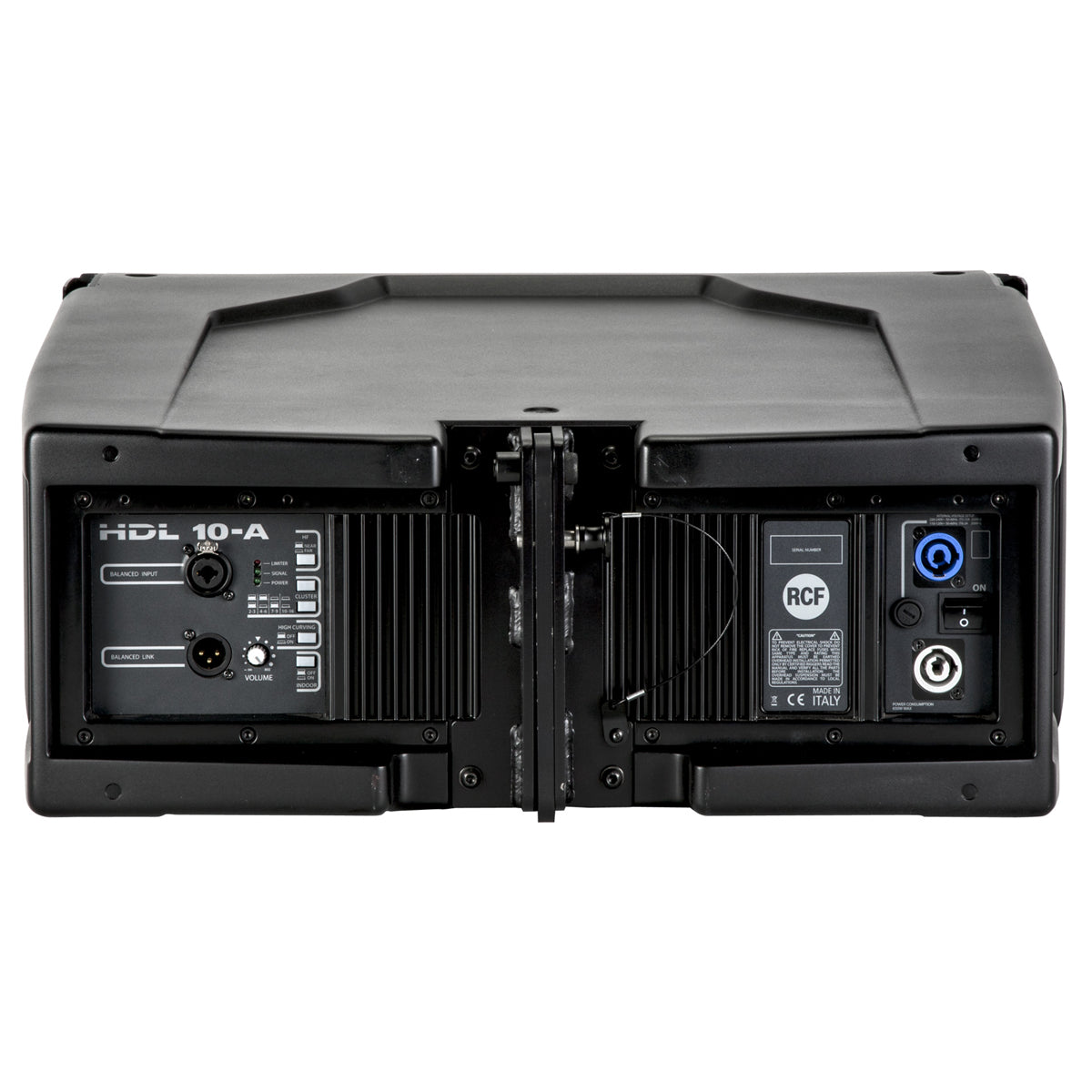

Input/Output

• Input Type: Balanced/Unbalanced

• Input Connectors: XLR

• Output Connectors: XLR

• Input Sensitivity: -2 dBu / +4 dBu

DSP & Controls

• Crossover: 800 Hz

• Protections: Thermal, RMS

• Limiter: Soft Limiter

• Controls: Cluster EQ, HF boost, High Curving, Indoor preset

Amplification

• Total Power: 1400W Peak / 700W RMS

  • HF: 400W Peak / 200W RMS

  • LF: 1000W Peak / 500W RMS

• Cooling: Convection

• Power Connection: Powercon In/Out

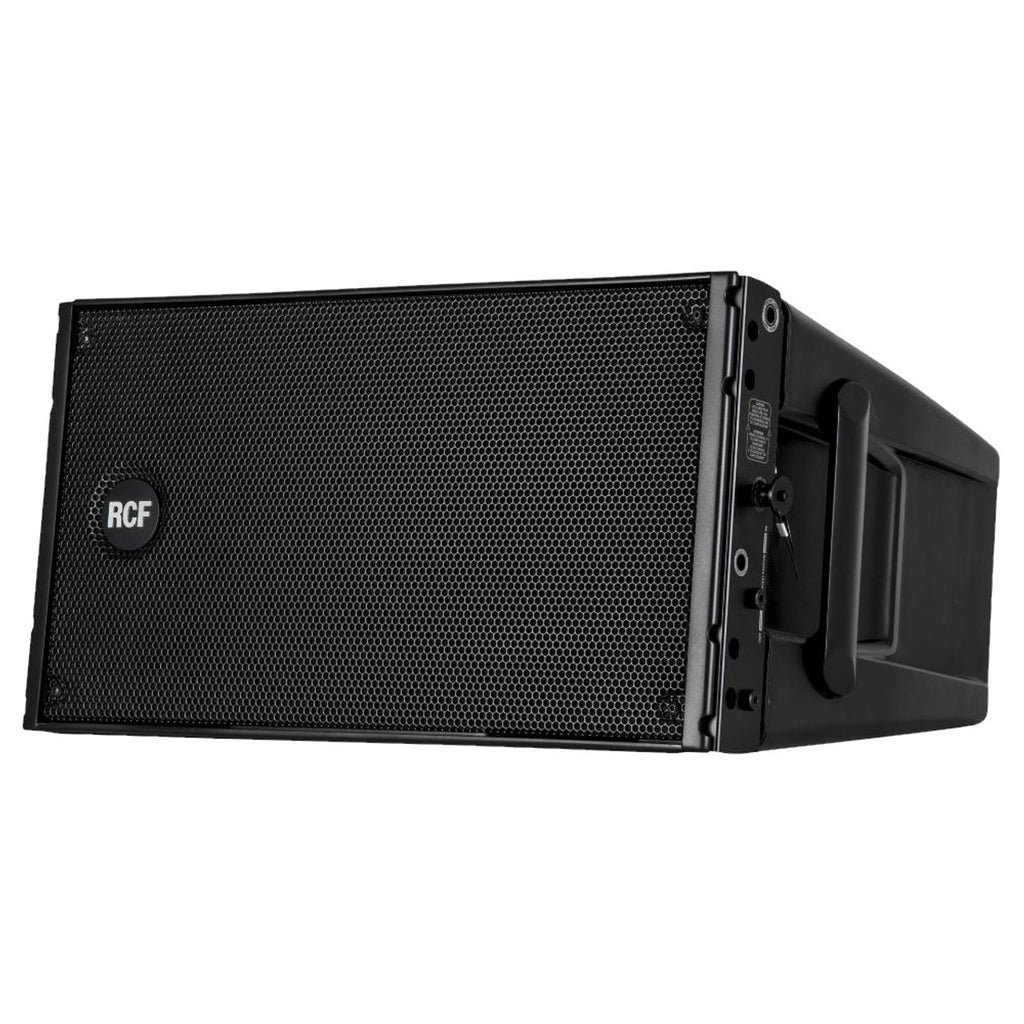

Cabinet & Build

• Material: Composite polypropylene with wood reinforcement

• Finish: Black

• Rigging: Integrated flyware

• Handles: 2 side handles

• Grille: Steel front grille

Dimensions & Weight

• Height: 11.57" (294 mm)

• Width: 22.4" (569 mm)

• Depth: 17.09" (434 mm)

• Weight: 44.97 lbs (20.4 kg)

Shipping Dimensions

• Height: 14.76" (375 mm)

• Width: 25.59" (650 mm)

• Depth: 19.69" (500 mm)

• Shipping Weight: 50.71 lbs (23 kg)

What's Included:

• 1x RCF HDL 10-A Active Line Array Speaker

• Powercon Power Cable

Compact, powerful, and built for real-world applications—the RCF HDL 10-A brings professional line array performance to any venue or tour with ease and efficiency.
