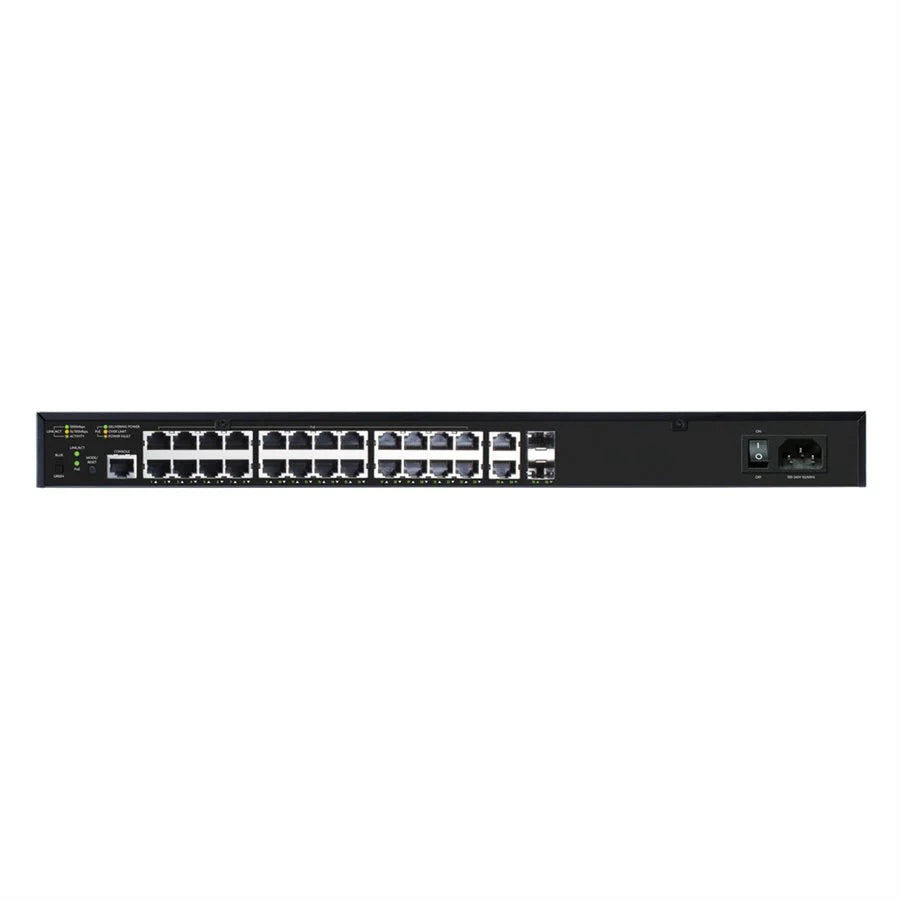

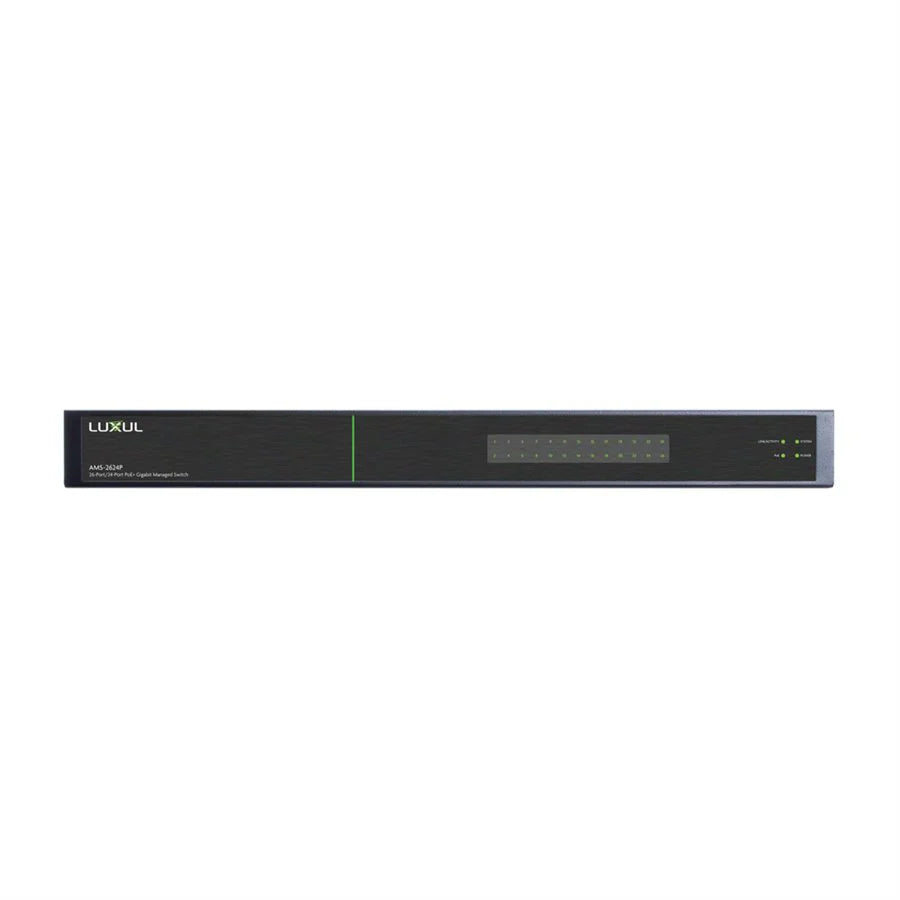

Titan Weatherproof 24 Port AMS-2624P

Titan Weatherproof Luxul AMS-2624P 24 Port / 24 POE

Professional-Grade Switching with Smart Power Management
Designed for AV rack installations, the Luxul AMS-2624P delivers robust PoE+ performance and smart management features in a clean, rack-optimized form factor. Rear-facing ports, selectable LED colors, and PoE self-healing make this a top choice for AV professionals and commercial networking.

Key Features

• PoE Self-Healing: Auto-recovery and power scheduling ensure consistent device operation and minimize downtime

• 24 Gigabit PoE+ Ports: Supports IEEE 802.3af/at with a generous 250W power budget

• 2 Combo Uplink Ports: Includes 2 Gigabit RJ45 and 2 shared SFP ports for flexible uplink options

• High Switching Capacity: 52 Gbps non-blocking switching with full-duplex data transfer

• Advanced VLAN & QoS Support: Supports 802.1Q VLAN tagging, trunking, and quality of service for traffic prioritization

• Secure Access: Port-based authentication helps control and manage device access

• Silent Operation: Variable-speed fans ensure quieter operation based on system temperature

• Customizable LED Display: Choose between green or blue front-facing LEDs for a tailored rack aesthetic

• 19” Rack-Mount Ready: Standard fit for clean, professional installations

Specifications

• Ports:

  • 24 x Gigabit RJ45 (PoE+)

  • 2 x Gigabit RJ45 uplink

  • 2 x SFP combo uplink ports

• Power Supply: Internal AC 100–240V, 50/60Hz

• PoE Budget: 250W

• Max Power Consumption: 337W

• VLAN Support:

  • 802.1Q VLAN with trunking

  • Up to 4094 VIDs

  • 1 Management VLAN

• Surge Protection: EN61000-4-5 certified, 6KV protection per RJ45 port

• Data Transfer Rates:

  • Ethernet: 10/20 Mbps

  • Fast Ethernet: 100/200 Mbps

  • Gigabit Ethernet: 1000/2000 Mbps

• Cable Support:

  • Cat5/5e/6 for 10/100/1000Base-T

  • Auto cable detection for straight-through or crossover

Certifications

CE, FCC, RoHS

Dimensions

• Size: 17.3” x 8.25” x 1.75”

• Weight: 8.75 lb

What’s in the Box

• Luxul AMS-2624P 26-Port Gigabit Managed Switch

• Rack Mount Kit

• Rubber Feet

• Power Cord

• Quick Install Guide

Perfect For:
Expanding networks with high-performance, rack-friendly switches supporting VoIP, IP surveillance, wireless access points, and AV-over-IP systems.
