TOA Variable Dispersion Speaker 750W 8 Ohms HX-7B

TOA HX-7B Variable Dispersion Speaker 750W 8 Ohms - Black

Powerful, Scalable Sound for Medium-Sized Venues

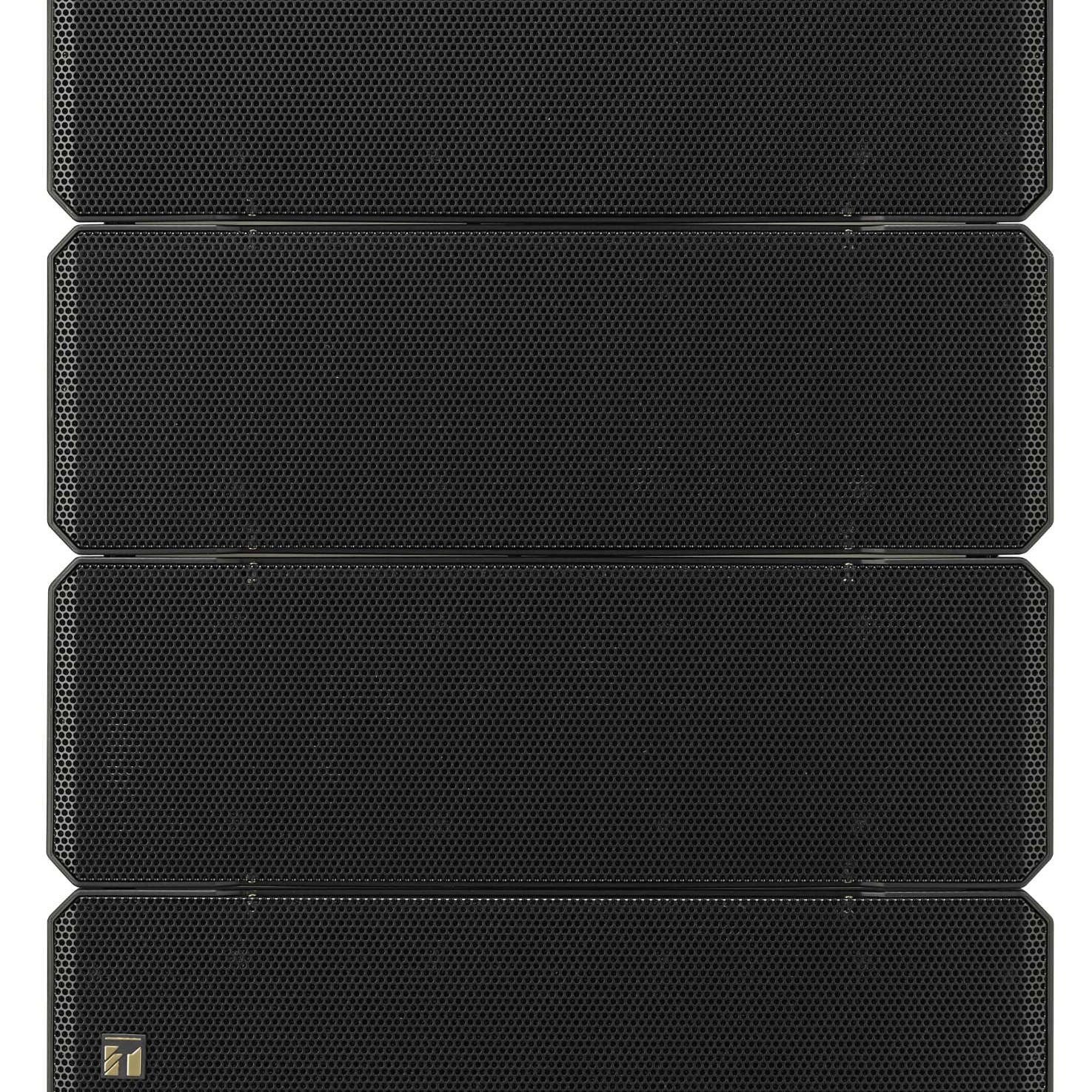

The TOA HX-7 is an advanced line array speaker designed to deliver exceptional clarity and dynamic range for a wide range of mid-sized venues — including churches, auditoriums, gymnasiums, and sports arenas. Built on TOA’s modular HX Series platform, the HX-7 offers flexible vertical dispersion control and the ability to stack multiple units for expanded coverage and output.

Each of its four adjustable speaker modules integrates dual 5.5" woofers and a waveguide-loaded 1" compression driver, delivering precise sound projection and vocal intelligibility. With 750W continuous program power handling and 100 dB sensitivity, the HX-7 ensures high-impact performance with consistent audio coverage.

Key Features:

• Modular 4-cell configuration for scalable line array performance

• 750W continuous program power at 8Ω impedance

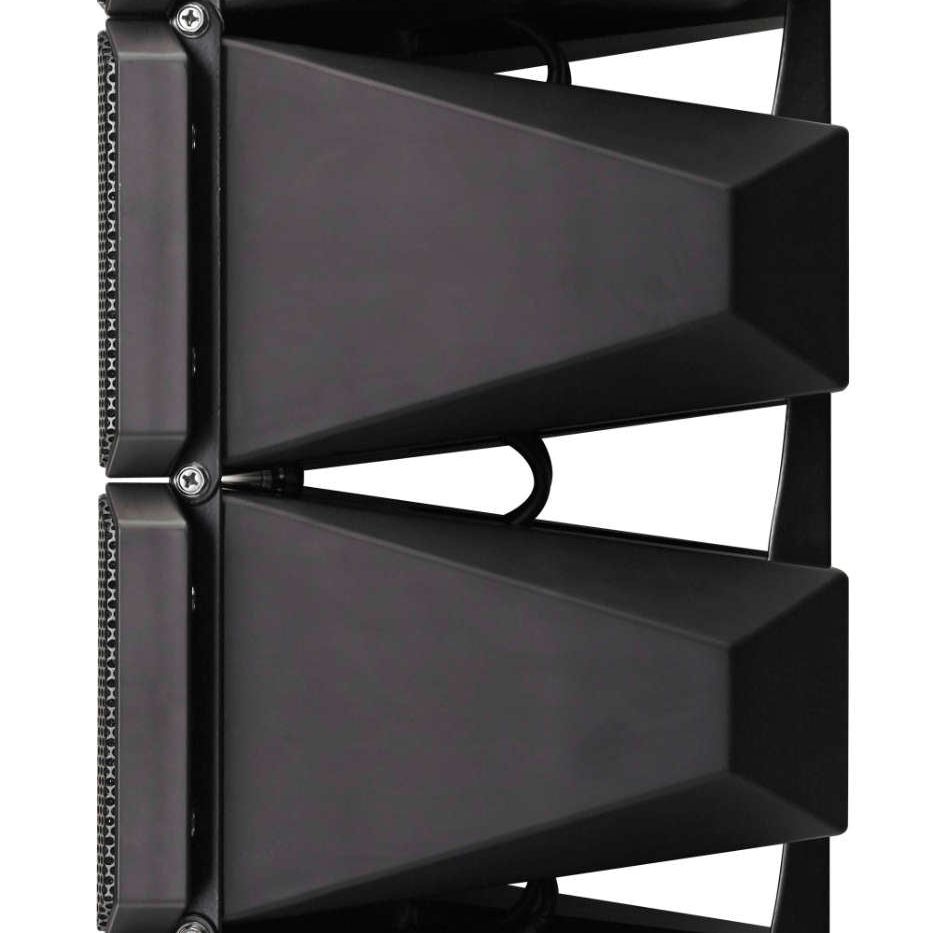

• Flexible vertical angle adjustment from 0° to 45° (up to 60° with optional bracket)

• 8 x 5.5" LF cone drivers and 4 x 1" HF compression drivers for full-range sound

• 100 dB sensitivity (1W @ 1m)

• 100° horizontal dispersion

• Ideal for churches, performance spaces, and gymnasiums

• Supports wall, ceiling, pole, or flown installations (optional hardware required)

Specifications:

Acoustical

• Frequency Response: 75 Hz – 20 kHz

• Sensitivity: 100 dB (1W @ 1m)

• Max Power Handling: 750W Continuous Program

• Impedance: 8 Ohms

• Crossover Frequency: 1.7 kHz

• Horizontal Coverage: 100°

• Vertical Coverage: Variable (0°–45°, up to 60° with second unit)

Transducers

• Low Frequency: 8 x 5.5" cone-type woofers

• High Frequency: 4 x 1" compression drivers with waveguide

Construction

• Enclosure: Polypropylene (Black)

• Grille: Powder-coated perforated steel

• Mounting Bracket: Steel (black)

• Optional accessories available for pole, wall, ceiling, or fly mounting

Connections

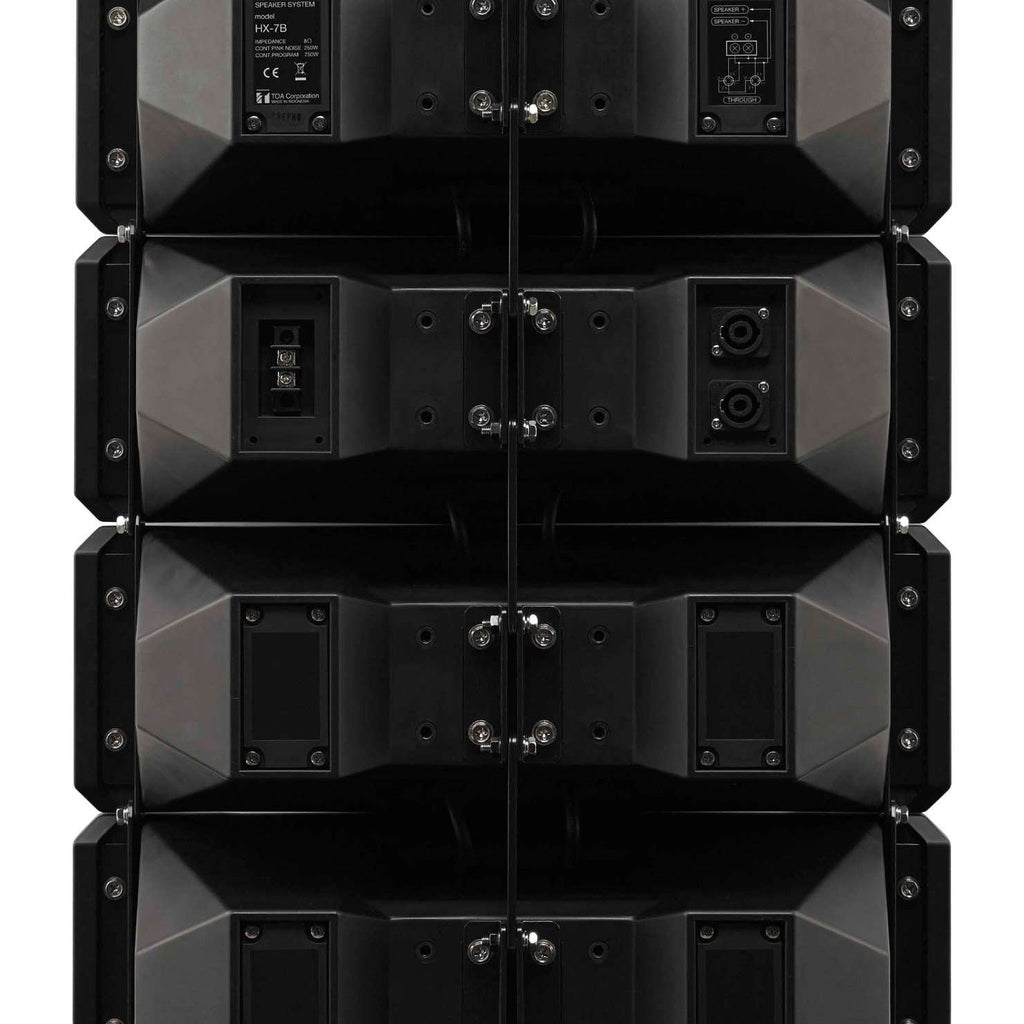

• Input Terminals: 2 x Speakon NL4MP + M4 screw terminal

Physical Specs

• Dimensions: 19.57" (W) x 26.14" (H) x 10.79" (D)

• Weight: 66.14 lbs

What’s Included:

• 1x TOA HX-7 Line Array Speaker

• User Manual

Mounting brackets and hardware sold separately.

Experience professional-grade clarity, power, and flexibility — all in one compact, modular line array solution with the TOA HX-7. Perfect for scalable sound in any mid-sized performance environment.
